Installation Procedure
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
- Thoroughly clean any rust or corrosion from the mating surface of the hub/axle flange.
- Thoroughly clean any rust or corrosion from the mating surface and mounting surface of the brake rotor.
- Inspect the mating surfaces of the hub/axle flange and the rotor to ensure there are no foreign particles or debris remaining.

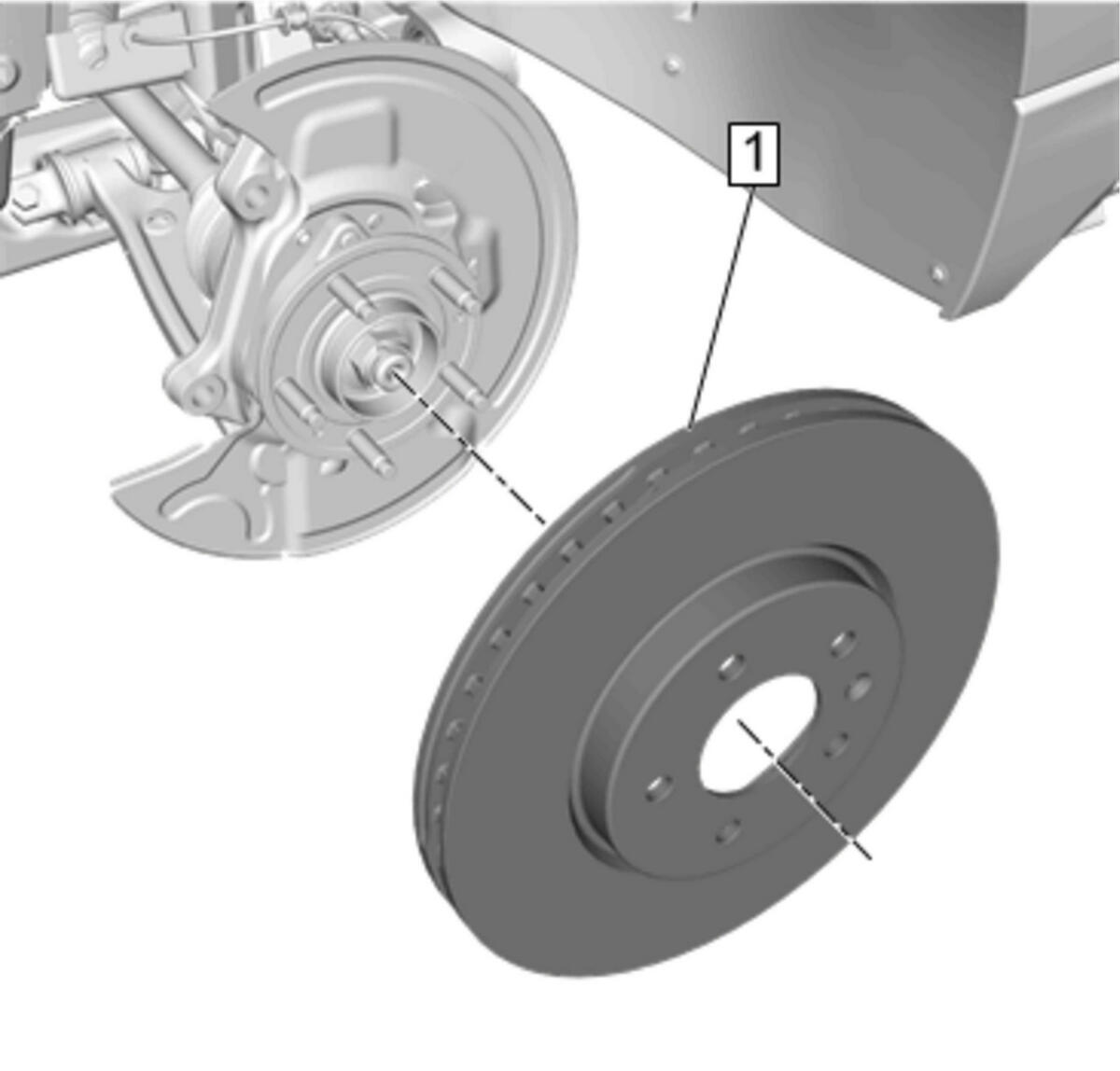

- Install Front Brake Rotor (1)

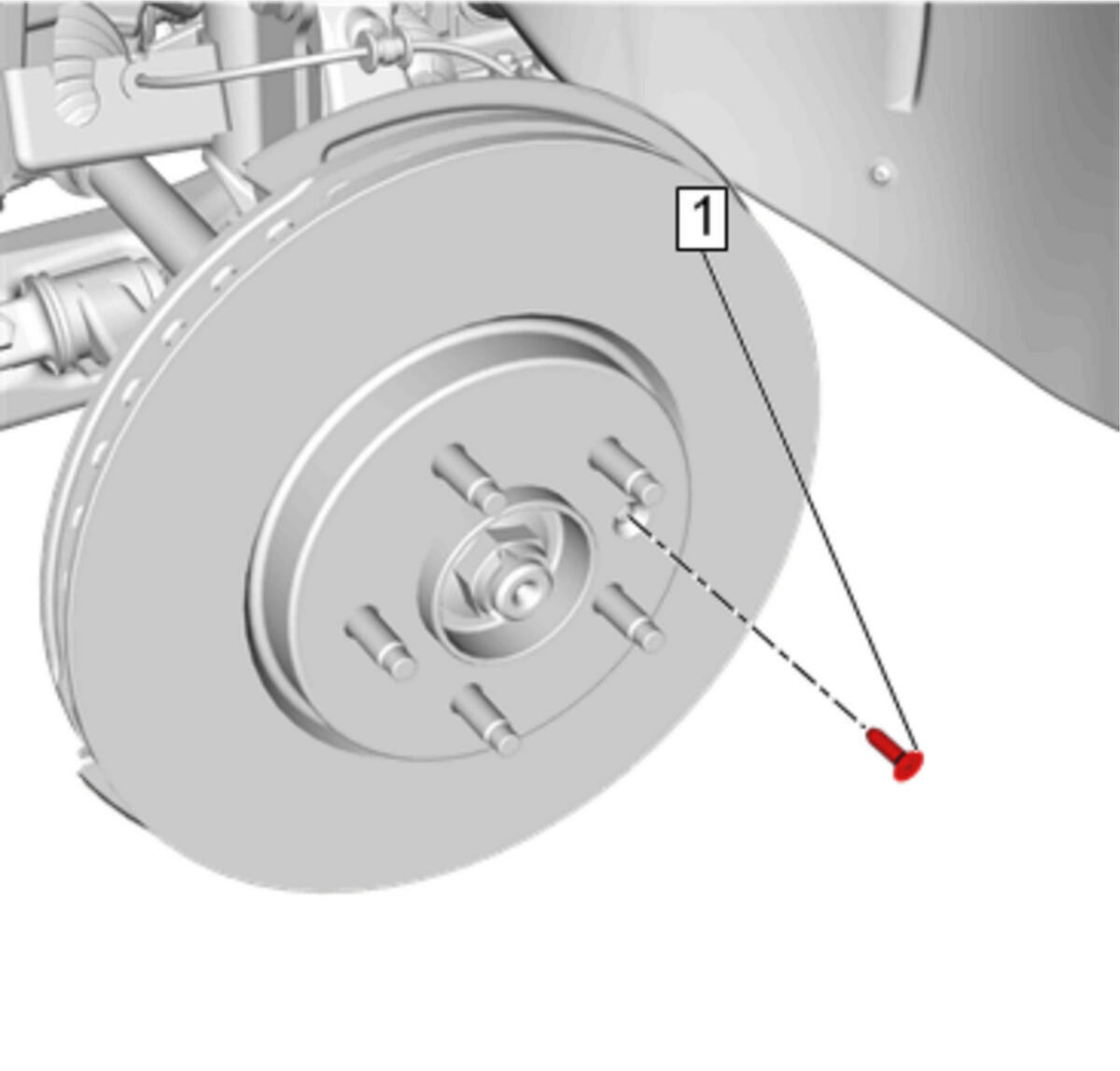

- Install Front Brake Rotor Bolt (1) and tighten 9 N.m (80 lb in)

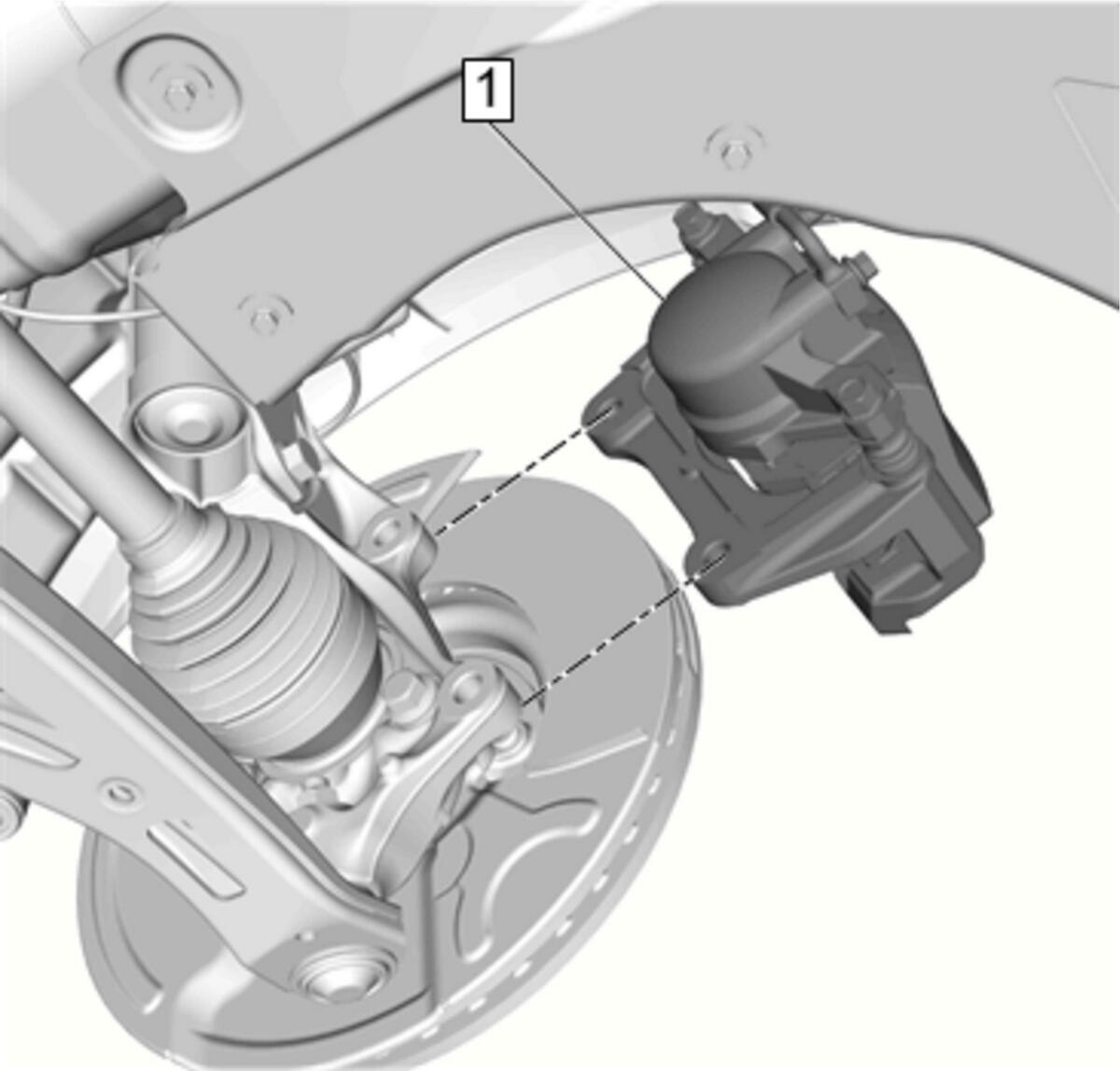

- Install Front Brake Caliper and Bracket (1)
- Prepare the brake caliper bracket bolts and the bracket threaded holes for assembly:
- Thoroughly clean the residue from the bolt threads with denatured alcohol and allow to dry.
- Thoroughly clean the residue from the threaded holes with denatured alcohol and allow to dry.
- Apply threadlocker to 2/3 of the threaded length of the bolts. Adhesives, Fluids, Lubricants, and Sealers

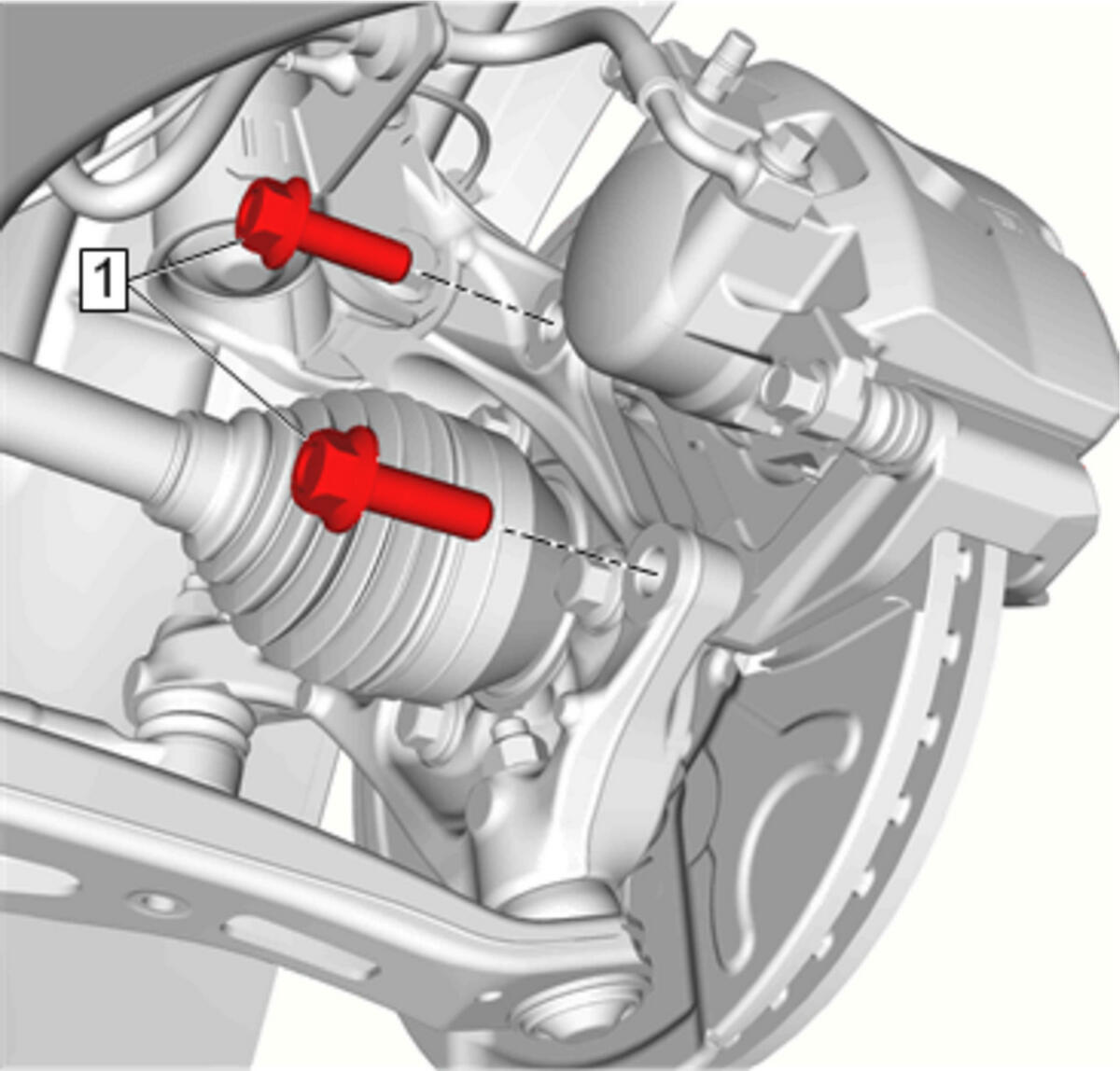

- Install Front Brake Caliper Bracket Bolt (1) and tighten
- First Pass:150 N.m (111 lb ft)
- Final Pass:15-30 degrees
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
- Burnish the brake pads and rotors. Brake Pad and Rotor Burnishing
NOTE:
Whenever the brake rotor has been separated from the hub/axle flange, any rust or contaminates should be cleaned from the hub/axle flange and the brake rotor mating surfaces. Failure to do this may result in excessive assembled lateral runout (LRO) of the brake rotor, which could lead to brake pulsation.
