K219 Lighting Control Module X5
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

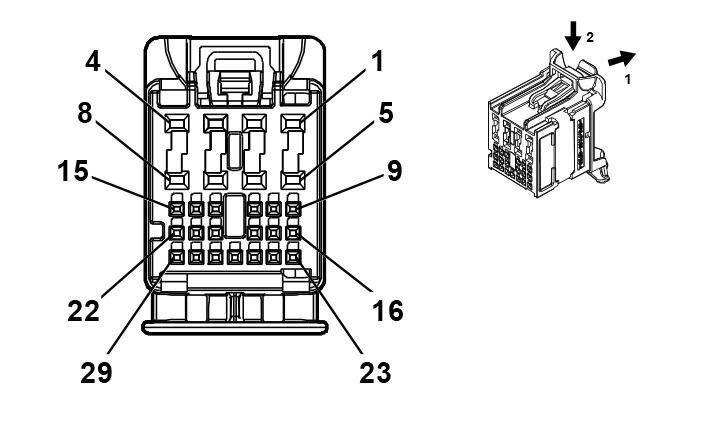

Connector Part Information
- Harness Type:Body Wiring Harness
- OEM Connector: 35392292
- Service Connector: 13534975
- Description: 29-Way F 0.5 NANO, 1.2 MCON, stAK50h Series (BU with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| II |
84729890 |
J-35616-12 (BU) |
J-38125-553 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE/GN |
4733 |
Exterior Door Handle Lamp Control |
II |
- |
| 2 |
0.5 |
BN/GY |
6995 |
Right Rear Park Lamp Control |
II |
- |
| 3 |
0.5 |
BU/WH |
1334 |
Left Rear Turn Signal Lamp Control 2 |
II |
- |
| 4 |
0.5 |
WH/YE |
7541 |
Right Rear Stop Lamp Control |
II |
- |
| 5 |
0.5 |
YE/GY |
57 |
Left Cornering Lamp Control |
II |
- |
| 6 |
0.5 |
BN/BU |
6993 |
Left Rear Park Lamp Control |
II |
- |
| 7 |
0.5 |
BU/VT |
1335 |
Right Rear Turn Signal Lamp Control 2 |
II |
- |
| 8 |
0.5 |
GY/YE |
7542 |
Left Rear Stop Lamp Control |
II |
- |
| 9 |
0.35 |
GN/GY |
2115 |
Right Turn Signal Lamp Control 2 |
I |
- |
| 10 |
0.35 |
WH/GY |
2114 |
Left Turn Signal Lamp Control 2 |
I |
- |
| 11 |
0.35 |
GY |
1715 |
Windshield Wiper Switch High Signal |
I |
- |
| 13 |
0.35 |
YE/GY |
122 |
Rear Fog Lamp Control |
I |
- |
| 14 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
GN/WH |
24 |
Backup Lamp Control |
I |
- |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
VT/GY |
539 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 20 - 22 |
- |
- |
- |
Not Occupied |
- |
- |
| 23 |
0.35 |
WH/VT |
6567 |
Rear Turn Signal Lamp Feedback Signal |
I |
- |
| 24 |
0.35 |
WH/BK |
7544 |
Right Rear Turn Signal Lamp Feedback Signal |
I |
- |
| 25 |
0.35 |
BN/YE |
820 |
Center High Mounted Stop Lamp Supply Voltage |
I |
- |
| 26 - 27 |
- |
- |
- |
Not Occupied |
- |
- |
| 28 |
0.35 |
WH/GN |
5966 |
Approach Lamp Control |
I |
- |
| 29 |
0.35 |
GN/YE |
6846 |
Rear License Plate Lamp Control |
I |
- |
