K219 Lighting Control Module X4
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

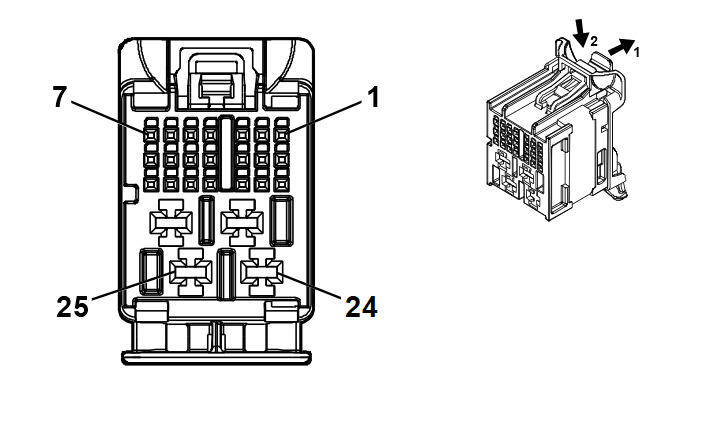

Connector Part Information
- Harness Type:Body Wiring Harness
- OEM Connector: 35392283
- Service Connector: 13534969
- Description: 25-Way F 0.5 MQS, 2.8 MCP Series (PU with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| II |
87814662 |
J-35616-4A (PU) |
J-38125-557 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BU/YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 4 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 5 |
0.35 |
BU/YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 6 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 7 |
0.35 |
WH/BU |
6311 |
Cruise/ETC/TCC Brake Signal |
I |
- |
| 8 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 11 |
0.35 |
BU/YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 12 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.35 |
VT/BU |
4001 |
Left Rear Door Lock Switch Lock Control |
I |
- |
| 16 |
0.35 |
WH/YE |
4002 |
Left Rear Door Lock Switch Unlock Control |
I |
- |
| 17 |
0.35 |
GN/BN |
4003 |
Right Rear Door Lock Switch Lock Control |
I |
- |
| 18 |
0.35 |
BU/GY |
4004 |
Right Rear Door Lock Switch Unlock Control |
I |
- |
| 19 - 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.35 |
VT/GY |
1303 |
Liftgate Ajar Switch Signal 1 |
I |
- |
| 22 |
1 |
RD/WH |
2740 |
Battery Positive Voltage |
II |
- |
| 23 |
1.5 |
BK/WH |
2250 |
Ground |
II |
- |
| 24 |
1.5 |
RD/GY |
1740 |
Battery Positive Voltage |
II |
- |
| 25 |
1.5 |
BK/WH |
2250 |
Ground |
II |
- |
