K219 Lighting Control Module X3
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

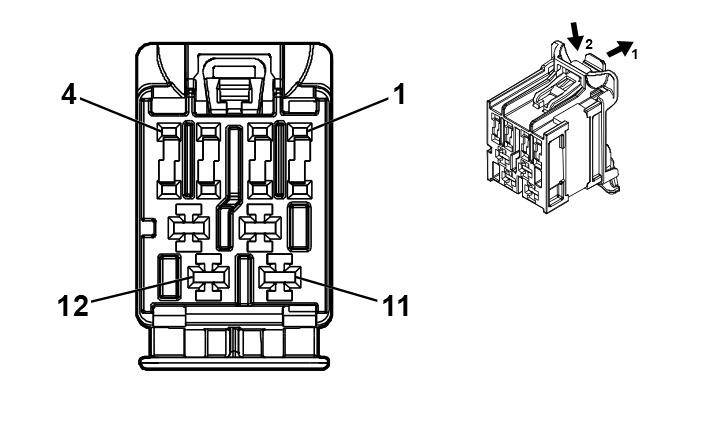

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 84729890 | J-35616-12 (BU) | J-38125-553 |
| II | 87814662 | J-35616-4A (PU) | J-38125-557 |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | GY/BU | 7538 | Left Front DRL Control | I | - |
| 2 | 0.5 0.5 |
BU/BN GY |
7539 2748 |
Right Front DRL Control Right Front Lamp Assembly 2 Supply Voltage |
I I |
-T87 T87-TR7 |
| 3 | - | - | - | Not Occupied | - | - |
| 4 | 0.5 | BU/GN | 1203 | Right Park Lamp Control 2 | I | - |
| 5 | - | - | - | Not Occupied | - | - |
| 6 | 0.75 | GN/VT | 1315 | Right Front Turn Signal Lamp Control | I | - |
| 7 | 0.35 0.5 |
BU/GN WH |
1253 2749 |
Right Front Park Lamp Control Right Front Lamp Assembly Control |
I I |
-T87 T87-TR7 |
| 8 | - | - | - | Not Occupied | - | - |
| 9 | 1 | RD/BN | 2940 | Battery Positive Voltage | II | - |
| 10 | 1 | RD/GY | 2840 | Battery Positive Voltage | II | - |
| 11 | 0.5 | WH | 311 | Right Headlamp High Beam Control | II | - |
| 12 | 0.5 | YE | 312 | Right Headlamp Low Beam Control | II | - |
