K219 Lighting Control Module X2
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

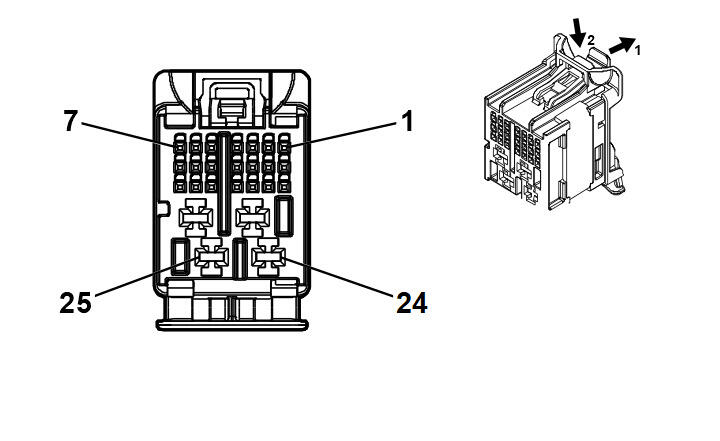

Connector Part Information
- Harness Type:Forward Lamp Wiring Harness
- OEM Connector: 35392286
- Service Connector: 13534966
- Description: 25-Way F 0.5 MQS, 2.8 MCP Series (GY with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| II |
87814662 |
J-35616-4A (PU) |
J-38125-557 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH/YE |
1254 |
Left Front Park Lamp Control |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BN/GY |
2268 |
Windshield Washer Relay Control |
I |
- |
| 4 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
VT/BK |
6568 |
Front Turn Signal Lamp Feedback Signal |
I |
- |
| 12 |
0.35 |
GY |
91 |
Windshield Wiper Motor Relay Coil Control |
I |
- |
| 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.35 |
VT |
185 |
Low Washer Fluid Indicator Control |
I |
- |
| 15 - 18 |
- |
- |
- |
Not Occupied |
- |
- |
| 19 |
0.35 |
BU/GN |
1253 |
Right Front Park Lamp Control |
I |
- |
| 20 |
0.35 |
WH/YE |
7545 |
Right Front Turn Signal Lamp Feedback Signal |
I |
- |
| 21 |
- |
- |
- |
Not Occupied |
- |
- |
| 22 |
1 |
RD/GY |
5540 |
Battery Positive Voltage |
II |
- |
| 23 |
1 |
RD/VT |
5640 |
Battery Positive Voltage |
II |
- |
| 24 - 25 |
- |
- |
- |
Not Occupied |
- |
- |
