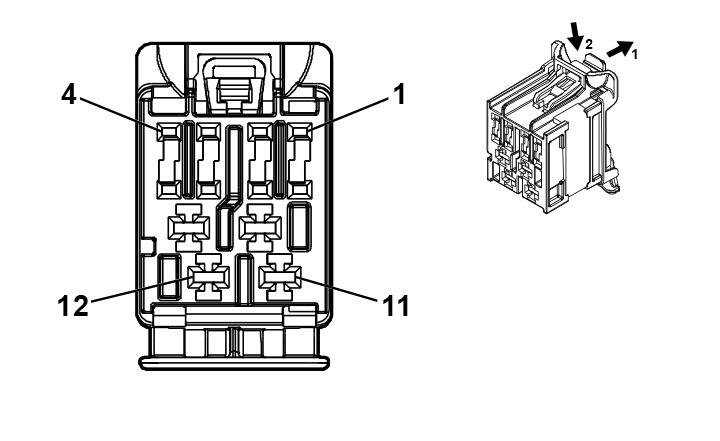

K219 Lighting Control Module X1
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 84729890 | J-35616-12 (BU) | J-38125-553 |
| II | 87814662 | J-35616-4A (PU) | J-38125-557 |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | WH/YE | 1204 | Left Park Lamp Control 2 | I | - |
| 2 | - | - | - | Not Occupied | - | - |
| 3 | 0.5 0.5 |
GY/BU BU |
7538 2745 |
Left Front DRL Control Left Front Lamp Assembly 2 Supply Voltage |
I I |
-T87 T87-TR7 |
| 4 | - | - | - | Not Occupied | - | - |
| 5 | 0.5 | BU/WH | 1314 | Left Front Turn Signal Lamp Control | I | - |
| 6 | 0.35 0.5 |
WH/YE GN |
1254 2746 |
Left Front Park Lamp Control Left Front Lamp Assembly Control |
I I |
-T87 T87-TR7 |
| 7 | 0.5 | BU/BN | 7539 | Right Front DRL Control | I | - |
| 8 | 0.5 | YE/WH | 58 | Right Cornering Lamp Control | I | - |
| 9 | 1 | RD/WH | 5740 | Battery Positive Voltage | II | - |
| 10 | 0.5 | YE | 712 | Left Headlamp Low Beam Control | II | - |
| 11 | - | - | - | Not Occupied | - | - |
| 12 | 0.5 | WH | 711 | Left Headlamp High Beam Control | II | - |
