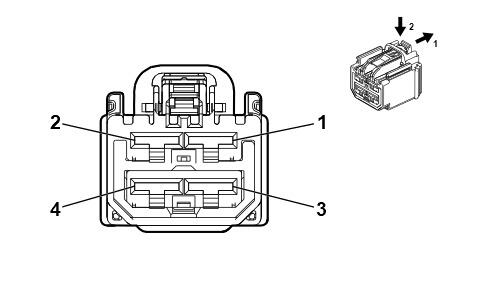

K164 Differential Control Module X1 (G96)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Body Wiring Harness
- OEM Connector: 35317762
- Service Connector: 84766433
- Description: 4-Way F 6.3 YESC Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-42 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
GY/BN |
7968 |
Axle Differential Lock Control High |
I |
- |
| 2 |
2.5 |
BK |
2550 |
Ground |
I |
- |
| 3 |
2.5 |
BK/BU |
7340 |
Camshaft W 2 Low Reference |
I |
- |
| 4 |
2.5 |
YE/WH |
7969 |
Axle Differential Lock Control Low |
I |
- |
