K157 Video Processing Module X4 (UV2)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

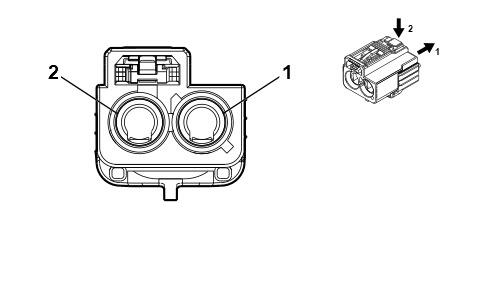

Connector Part Information
- Harness Type:Body Wiring Harness COAX
- OEM Connector: 33351065
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (BG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 1-TN |
- |
- |
4725 |
Left Sideview Camera LVDS (Low Voltage Differential Signaling) Coaxial Signal |
I |
- |
| 2-TN |
- |
- |
4724 |
Right Sideview Camera LVDS (Low Voltage Differential Signaling) Coaxial Signal |
I |
- |
