K134D Front Seat Bolster Memory Module - Driver (A45)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

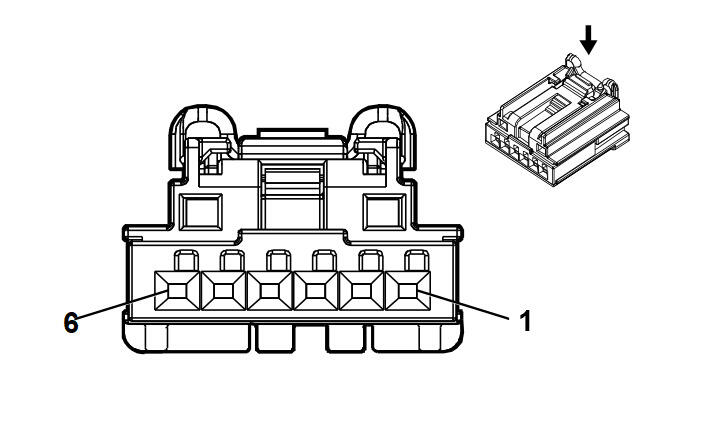

Connector Part Information
- Harness Type:Front Driver Seat Wiring Harness
- OEM Connector: 2035363-6
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 0.64 Generation Y Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD/WH |
2040 |
Battery Positive Voltage |
I |
- |
| 2 |
0.5 |
GN/GY |
3758 |
Driver Seat Adjuster Memory Module LIN Bus 2 |
I |
- |
| 3 |
0.5 |
WH/BU |
4891 |
Driver Seat Lumbar/Bolster Pump Control |
I |
- |
| 4 |
0.5 |
BK |
2150 |
Ground |
I |
- |
| 5 |
0.5 |
BN/BK |
2305 |
Driver Seat Bolster Pump Low Reference |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
