K124 Image Processing Module X2 (UGN)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

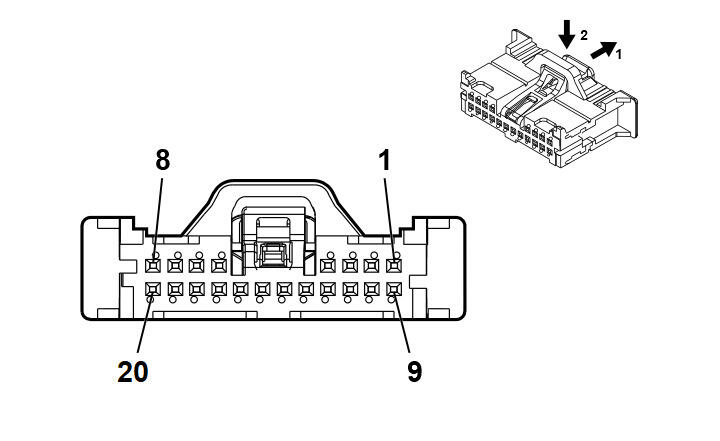

Connector Part Information
- Harness Type:Body Wiring Harness
- OEM Connector: 35068197
- Service Connector: 13529922
- Description: 20-Way F 050 CTS Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19333221 |
EL-35616-58 (BK) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 2 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 3 |
0.35 |
BU/YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 4 |
0.35 |
BU/YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 5 |
0.35 |
WH/GY |
4104 |
AUTOSAR CAN Bus [-] 8 Serial Data |
I |
- |
| 6 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 11 |
0.35 |
BU/YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 12 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
| 17 |
0.35 |
BU/GY |
4105 |
AUTOSAR CAN Bus [+] 8 Serial Data |
I |
- |
| 18 - 20 |
- |
- |
- |
Not Occupied |
- |
- |
