K124 Image Processing Module X1 (UKL)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

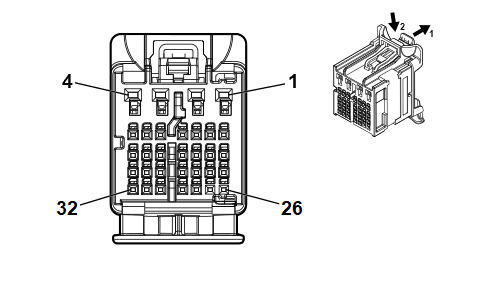

Connector Part Information
- Harness Type:Body Wiring Harness
- OEM Connector: 35392290
- Service Connector: 13534976
- Description: 32-Way F 0.5 NANO, 1.2 MCON, stAK50h Series (BK with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
RD/YE |
6540 |
Battery Positive Voltage |
I |
- |
| 6 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
WH |
4986 |
AUTOSAR CAN Bus [-] 1 Serial Data |
I |
- |
| 10 |
0.35 |
BU |
4987 |
AUTOSAR CAN Bus [+] 1 Serial Data |
I |
- |
| 11 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
WH |
4986 |
AUTOSAR CAN Bus [-] 1 Serial Data |
I |
- |
| 17 |
0.35 |
BU |
4987 |
AUTOSAR CAN Bus [+] 1 Serial Data |
I |
- |
| 18 |
- |
- |
- |
Not Occupied |
- |
- |
| 19 |
0.35 |
BK/WH |
1651 |
Signal Ground |
I |
- |
| 20 - 22 |
- |
- |
- |
Not Occupied |
- |
- |
| 23 |
0.35 |
GN/GY |
4627 |
Image Processing Module LIN Bus 1 |
I |
- |
| 24 - 26 |
- |
- |
- |
Not Occupied |
- |
- |
| 27 |
0.35 |
VT/GY |
8978 |
Inertial Sensor Supply Voltage |
I |
- |
| 28 - 30 |
- |
- |
- |
Not Occupied |
- |
- |
| 31 |
0.35 |
YE |
7225 |
Ethernet Bus 11 [+] |
I |
- |
| 32 |
0.35 |
WH |
7224 |
Ethernet Bus 11 [-] |
I |
- |
