K60 Column Lock Module (N06-LT4)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

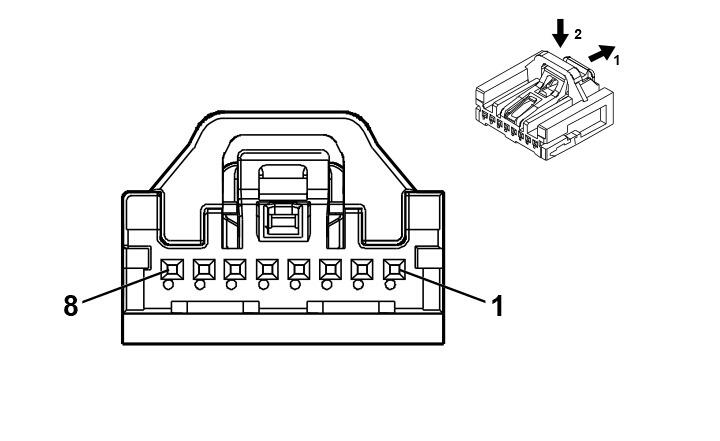

Connector Part Information
- Harness Type:Instrument Panel Wiring Harness
- OEM Connector: 35068228
- Service Connector: 84769201
- Description: 8-Way F Mini 50 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
EL-35616-58 (BK) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/GY |
4140 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BK |
1350 |
Ground |
I |
- |
| 4 |
0.35 |
BU |
4987 |
AUTOSAR CAN Bus [+] 1 Serial Data |
I |
- |
| 5 |
0.35 |
BU |
4987 |
AUTOSAR CAN Bus [+] 1 Serial Data |
I |
- |
| 6 |
0.35 |
WH |
4986 |
AUTOSAR CAN Bus [-] 1 Serial Data |
I |
- |
| 7 |
0.35 |
WH |
4986 |
AUTOSAR CAN Bus [-] 1 Serial Data |
I |
- |
| 8 |
0.35 |
BU/VT |
807 |
Ignition Off/Accessory Ignition Voltage |
I |
- |
