K56 Serial Data Gateway Module X2
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

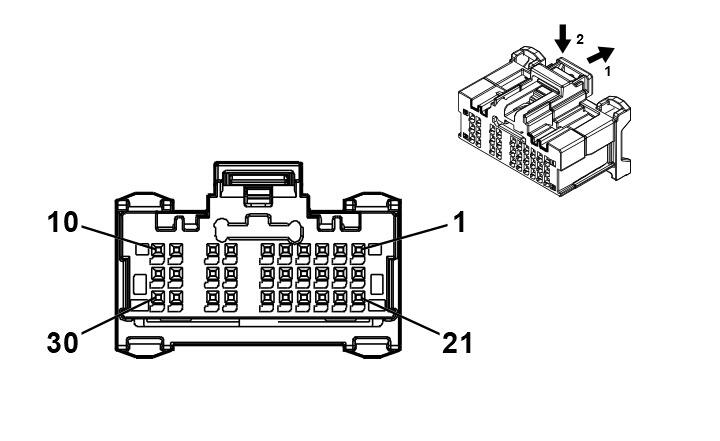

Connector Part Information
- Harness Type:Instrument Panel Wiring Harness
- OEM Connector: 35094158
- Service Connector: 84766509
- Description: 30-Way F 0.5 MQS Series (BK with L-GY Front Housing)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
WH |
4986 |
AUTOSAR CAN Bus [-] 1 Serial Data |
I |
- |
| 2 |
0.35 |
BU |
4987 |
AUTOSAR CAN Bus [+] 1 Serial Data |
I |
- |
| 3 |
0.35 |
BU/BK |
4977 |
AUTOSAR CAN Bus [+] 3 Serial Data |
I |
- |
| 4 |
0.35 |
WH |
4976 |
AUTOSAR CAN Bus [-] 3 Serial Data |
I |
- |
| 5 |
0.35 |
BK/GY |
3559 |
Passive Start Switch 2 Low Reference |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
GN/VT |
5199 |
Run/Crank Relay Coil Control |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
YE/WH |
4973 |
Ethernet Bus 1R [+] |
I |
- |
| 10 |
0.35 |
YE |
4972 |
Ethernet Bus 1R [-] |
I |
- |
| 11 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.35 |
BU/BN |
4983 |
AUTOSAR CAN Bus [+] 7 Serial Data |
I |
- |
| 14 |
0.35 |
WH |
4982 |
AUTOSAR CAN Bus [-] 7 Serial Data |
I |
- |
| 15 |
0.35 |
GN/BK |
3558 |
Passive Start Switch Signal 2 |
I |
- |
| 16 |
0.35 |
WH |
4980 |
AUTOSAR CAN Bus [-] 6 Serial Data |
I |
- |
| 17 |
0.35 |
GN |
2578 |
Private Serial Data Presentation CAN Bus [+] 1 Serial Data |
I |
- |
| 18 |
0.35 |
BN |
2577 |
Private Serial Data Presentation CAN Bus [-] 1 Serial Data |
I |
- |
| 19 |
0.35 |
WH |
7207 |
Ethernet Bus 1 Enable Signal |
I |
- |
| 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.35 |
BU/YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 22 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 23 |
0.35 |
BU/WH |
4985 |
AUTOSAR CAN Bus [+] 5 Serial Data |
I |
- |
| 24 |
0.35 |
BU/YE |
4984 |
AUTOSAR CAN Bus [-] 5 Serial Data |
I |
- |
| 25 |
- |
- |
- |
Not Occupied |
- |
- |
| 26 |
0.35 |
YE |
4981 |
AUTOSAR CAN Bus [+] 6 Serial Data |
I |
- |
| 27 |
0.35 |
VT |
2580 |
Private Serial Data Presentation CAN Bus [+] 2 Serial Data |
I |
- |
| 28 |
0.35 |
GY |
2579 |
Private Serial Data Presentation CAN Bus [-] 2 Serial Data |
I |
- |
| 29 |
0.35 |
GN/WH |
4975 |
Ethernet Bus 1T [+] |
I |
- |
| 30 |
0.35 |
GN |
4974 |
Ethernet Bus 1T [-] |
I |
- |
