K40P Passenger Seat Adjuster Memory Module X2 (AVU)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

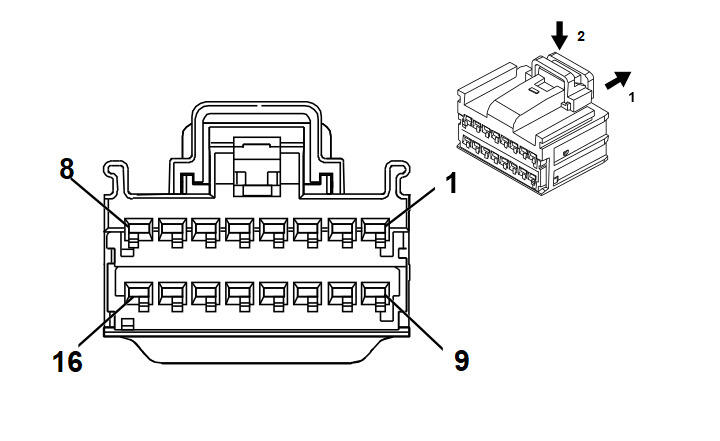

Connector Part Information
- Harness Type:Front Passenger Seat Wiring Harness
- OEM Connector: 15512506
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way F 1.5 OCS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
YE/WH |
296 |
Passenger Seat Horizontal Motor Forward Control |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
1.5 |
GN |
76 |
Passenger Seat Recline Motor Forward Control |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
1.5 |
GN/BU |
298 |
Passenger Seat Front Vertical Motor Down Control |
I |
- |
| 7 |
1.5 |
GN/WH |
288 |
Passenger Seat Rear Vertical Motor Up Control |
I |
- |
| 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
1.5 |
BU/BN |
77 |
Passenger Seat Recline Motor Rearward Control |
I |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
1.5 |
YE/BU |
290 |
Passenger Seat Horizontal Motor Rearward Control |
I |
- |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
1.5 |
BU/WH |
289 |
Passenger Seat Rear Vertical Motor Down Control |
I |
- |
| 14 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
1.5 |
GN/VT |
297 |
Passenger Seat Front Vertical Motor Up Control |
I |
- |
