K40D Driver Seat Adjuster Memory Module X3 (A45)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

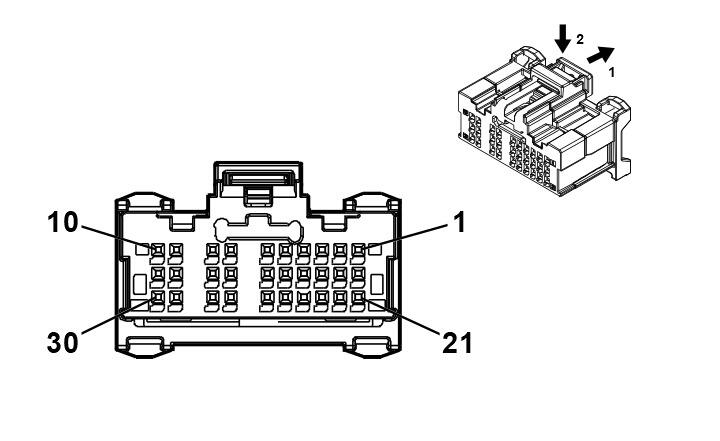

Connector Part Information
- Harness Type:Front Driver Seat Wiring Harness
- OEM Connector: 2309644-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 30-Way F 0.5 MQS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
EL-35616-58 (BK) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.35 |
BU/GN |
614 |
Seat Memory Switch Set Signal |
I |
- |
| 3 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
BN |
3038 |
Driver Seat Right Rear Haptic Movement Motor Control |
I |
- |
| 6 |
0.35 |
YE/BN |
3037 |
Driver Seat Left Rear Haptic Movement Motor Control |
I |
- |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
GN/WH |
7530 |
Driver Seat Adjuster Memory Module LIN Bus 1 |
I |
- |
| 9 |
0.35 |
WH |
4100 |
AUTOSAR CAN Bus [-] 4 Serial Data |
I |
- |
| 10 |
0.35 |
BU/VT |
4101 |
AUTOSAR CAN Bus [+] 4 Serial Data |
I |
- |
| 11 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
WH |
615 |
Seat Memory Switch Signal 1 |
I |
- |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
GN/GY |
3758 |
Driver Seat Adjuster Memory Module LIN Bus 2 |
I |
- |
| 19 |
0.35 |
WH |
4100 |
AUTOSAR CAN Bus [-] 4 Serial Data |
I |
- |
| 20 |
0.35 |
BU/VT |
4101 |
AUTOSAR CAN Bus [+] 4 Serial Data |
I |
- |
| 21 - 30 |
- |
- |
- |
Not Occupied |
- |
- |
