K36 Restraints Control Module X2 (1SV/UKL)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

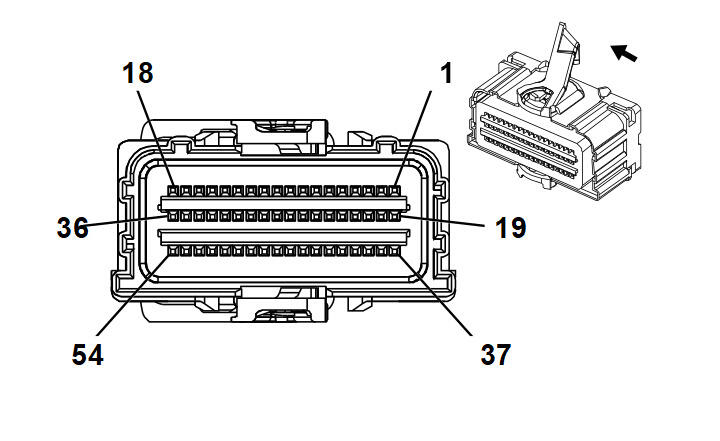

Connector Part Information

Harness Type:Body Wiring Harness
OEM Connector: 35462494
Service Connector: 13589171
Description: 54-Way F 0.64 Series, Sealed (YE)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	13587521	J-35616-64B (L-BU)	J-38125-11A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5	OG/WH	3477	Driver Seat Belt Retractor Pretensioner High Control	I	-
2	0.5	VT/OG	3478	Driver Seat Belt Retractor Pretensioner Low Control	I	-
3	0.5	WH/OG	3476	Passenger Seat Belt Retractor Pretensioner Low Control	I	-
4	0.5	OG/GN	3475	Passenger Seat Belt Retractor Pretensioner High Control	I	-
5	0.5	OG/YE	3481	Driver Seat Belt Anchor Pretensioner High Control	I	-
6	0.5	VT/OG	3482	Driver Seat Belt Anchor Pretensioner Low Control	I	-
7	0.5	GY/OG	3480	Passenger Seat Belt Anchor Pretensioner Low Control	I	-
8	0.5	OG/BN	3479	Passenger Seat Belt Anchor Pretensioner High Control	I	-
9 - 10	-	-	-	Not Occupied	-	-
11	0.5	GN/OG	7014	Left Rear Roof Rail Air Bag Low Control	I	-
12	0.5	OG/YE	7013	Left Rear Roof Rail Air Bag High Control	I	-
13	0.5	OG/BU	7015	Right Rear Roof Rail Air Bag High Control	I	-
14	0.5	GY/OG	7016	Right Rear Roof Rail Air Bag Low Control	I	-
15 - 18	-	-	-	Not Occupied	-	-
19	0.5	OG/BU	4962	Driver Seat Back Air Bag High Control	I	-
20	0.5	BK/OG	4963	Driver Seat Back Air Bag Low Control	I	-
21	0.5	BU/OG	4957	Passenger Seat Back Air Bag Low Control	I	-
22	0.5	OG/GY	4956	Passenger Seat Back Air Bag High Control	I	-
23	0.5	OG/YE	354	Left Front Impact Discriminating Sensor Signal	I	-
24	0.5	BK/OG	5045	Left Front Impact Discriminating Sensor Low Reference	I	-
25	0.5	BK/OG	6629	Right Front Side Impact Sensor Low Reference	I	-
26	0.5	BN/OG	2134	Right Front Side Impact Sensor Signal	I	-
27	0.5	OG/BU	6620	Left Middle Side Impact Sensor Signal	I	-
28	0.5	BK/OG	6621	Left Middle Side Impact Sensor Low Reference	I	-
29	0.5	BK/OG	5600	Right Front Impact Discriminating Sensor Low Reference	I	-
30	0.5	OG/GN	1409	Right Front Impact Discriminating Sensor Signal	I	-
31 - 41	-	-	-	Not Occupied	-	-
42	0.5	BK/OG	1363	Driver Seat Belt Switch Low Reference	I	-
43	0.5	OG/BN	238	Driver Seat Belt Switch Signal	I	-
44	0.5	OG/WH	2653	Passenger Seat Belt Sensor Signal	I	-
45 - 46	-	-	-	Not Occupied	-	-
47	0.5	BK/OG	6628	Left Front Side Impact Sensor Low Reference	I	-
48	0.5	OG/GN	2132	Left Front Side Impact Sensor Signal	I	-
49	0.5	OG/VT	6624	Right Middle Side Impact Sensor Signal	I	-
50	0.5	BK/OG	6625	Right Middle Side Impact Sensor Low Reference	I	-
51 - 54	-	-	-	Not Occupied	-	-
