K32 Heated Steering Wheel Module X2 (KI3)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

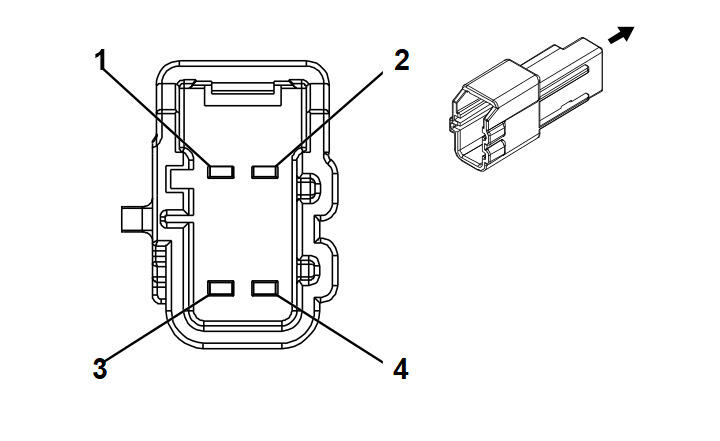

Connector Part Information
- Harness Type:HVAC
- OEM Connector: 13595572
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 1.2 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
YE |
5888 |
Steering Wheel Heating High Control |
I |
- |
| 2 |
0.75 |
YE/BK |
5887 |
Steering Wheel Heating Low Control |
I |
- |
| 3 |
0.35 |
BU |
5886 |
Steering Wheel Heating Temperature Sensor Signal |
I |
- |
| 4 |
0.35 |
BN |
5885 |
Steering Wheel Heating Voltage Reference |
I |
- |
