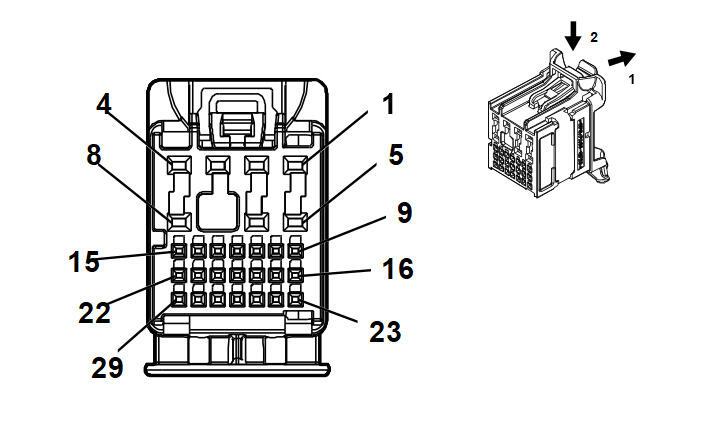

K9 Body Control Module X8
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 19370262 | EL-35616-58 (BK) | EL-38125-58 |
| II | 84729890 | J-35616-12 (BU) | J-38125-553 |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | BU/WH | 6128 | Rear Closure Unlatch Actuator Unlatch Control | II | - |
| 2 | 0.5 0.5 |
BN GN/GY |
5910 1092 |
Door Dead Lock Actuator Lock Control Left Rear Door Lock Actuator Unlock Control |
II II |
AF8 -AF8 |
| 3 | 0.5 | BU/WH | 2685 | Left Rear Door Unlatch Actuator Unlatch Control | II | - |
| 4 | 0.5 | GN | 2688 | Right Front Door Unlatch Actuator Unlatch Control | II | - |
| 5 | 0.5 | GY | 2066 | Hands-Free Liftgate Sensor Lamp Control | II | - |
| 6 - 8 | - | - | - | Not Occupied | - | - |
| 9 | 0.35 | GN/BK | 4304 | Passive Entry Right Front Door Antenna Signal Low | I | - |
| 10 | 0.35 | GN/YE | 4303 | Passive Entry Right Front Door Antenna Signal High | I | - |
| 11 | 0.35 | BU | 3554 | Interior Passive Entry Antenna 2 High Signal | I | - |
| 12 | 0.35 | GY/BK | 3555 | Interior Passive Entry Antenna 2 Low Signal | I | - |
| 13 | 0.35 | YE/BN | 3037 | Driver Seat Left Rear Haptic Movement Motor Control | I | - |
| 14 | 0.35 | BN | 3038 | Driver Seat Right Rear Haptic Movement Motor Control | I | - |
| 15 | 0.35 | GN/BK | 6156 | Door Unlatch Motor Low Reference | I | - |
| 16 | 0.35 | WH/VT | 4994 | Left Rear Door Exterior Switch Unlock Signal | I | - |
| 17 | 0.35 | GN/YE | 2862 | Body Control Module LIN Bus 16 | I | - |
| 18 | 0.35 | GN/WH | 2854 | Body Control Module LIN Bus 8 | I | - |
| 19 | 0.35 | GN/BK | 6156 | Door Unlatch Motor Low Reference | I | - |
| 20 | 0.35 | GN/BU | 2856 | Body Control Module LIN Bus 10 | I | - |
| 21 - 23 | - | - | - | Not Occupied | - | - |
| 24 | 0.35 | YE | 6653 | Left Rear Door Handle Switch Signal 2 | I | - |
| 25 - 27 | - | - | - | Not Occupied | - | - |
| 28 | 0.35 | GY/VT | 2676 | Right Front Door Exterior Switch Unlock Signal | I | - |
| 29 | 0.35 | GN/GY | 6135 | Body Control Module LIN Bus 4 | I | - |
