K9 Body Control Module X7
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

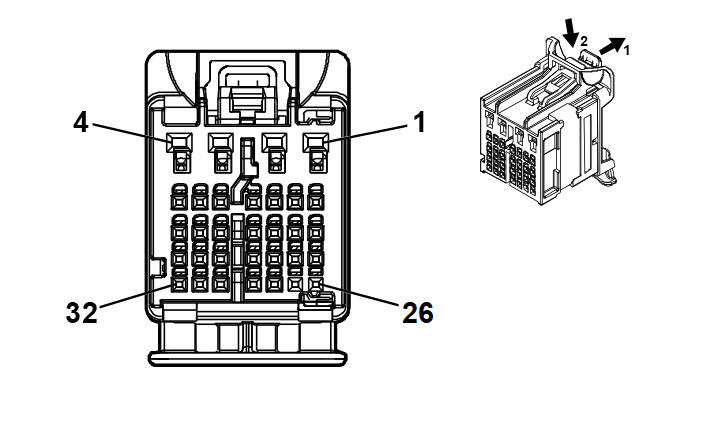

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 19370262 | EL-35616-58 (BK) | EL-38125-58 |
| II | 84729890 | J-35616-12 (BU) | J-38125-553 |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | - | - | - | Not Occupied | - | - |
| 2 | 0.5 | BU/BK | 2690 | Fuel Door Actuator Unlock Control | II | - |
| 3 | 0.5 0.35 |
GY BN/YE |
5911 1095 |
Door Lock Actuator Lock Control 2 Right Rear Door Lock Actuator Unlock Control |
II II |
AF8 -AF8 |
| 4 - 18 | - | - | - | Not Occupied | - | - |
| 19 | 0.35 | GN/VT | 2857 | Body Control Module LIN Bus 11 | I | - |
| 20 - 22 | - | - | - | Not Occupied | - | - |
| 23 | 0.35 | GN/BU | 4648 | Left Rear Door Lock Status Signal | I | - |
| 24 - 25 | - | - | - | Not Occupied | - | - |
| 26 | 0.35 | WH/GY | 4649 | Right Rear Door Lock Status Signal | I | - |
| 27 | - | - | - | Not Occupied | - | - |
| 28 | 0.35 | GN/GY | 1177 | Right Front Door Open Switch Signal | I | - |
| 29 - 32 | - | - | - | Not Occupied | - | - |
