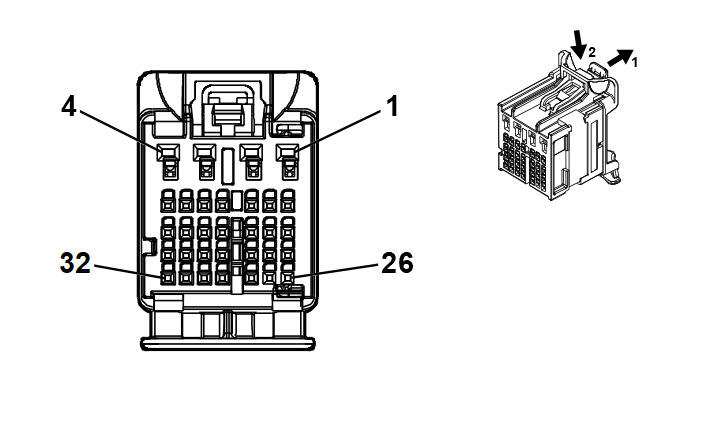

K9 Body Control Module X6
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Body Wiring Harness
- OEM Connector: 35392287
- Service Connector: 13534981
- Description: 32-Way F 0.5 MQS, 1.2 OCS Series (BN with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| II |
84729890 |
J-35616-12 (BU) |
J-38125-553 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.5 |
GN/BK |
2686 |
Right Rear Door Unlatch Actuator Unlatch Control |
II |
- |
| 3 |
0.5 |
WH/BN |
2684 |
Unlatch Actuators Unlatch Low Reference 2 |
II |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
YE/BU |
5797 |
Rear Closure Handle Switch Open Signal |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
BN/GN |
3568 |
Rear Closure Passive Entry Antenna High Signal |
I |
- |
| 8 |
0.35 |
GN/GY |
3569 |
Rear Closure Passive Entry Antenna Low Signal |
I |
- |
| 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.35 |
YE/BU |
4783 |
Rear Footwell Accent Lighting Control |
I |
- |
| 11 |
0.35 |
GN/BU |
6133 |
Body Control Module LIN Bus 2 |
I |
- |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.35 |
GN/BN |
6132 |
Body Control Module LIN Bus 1 |
I |
- |
| 14 |
0.35 |
BN/VT |
5486 |
Run Relay Coil Control |
I |
- |
| 15 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
| 17 |
0.35 |
GN/GY |
737 |
Rear Compartment Courtesy Lamp Control |
I |
- |
| 18 - 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.35 |
GN/GY |
2859 |
Body Control Module LIN Bus 13 |
I |
- |
| 21 |
- |
- |
- |
Not Occupied |
- |
- |
| 22 |
0.35 |
BN/GN |
4064 |
Hood Status B Signal |
I |
- |
| 23 |
0.35 |
YE/BK |
6677 |
Right Rear Door Lock Indicator Control |
I |
- |
| 24 |
0.35 |
VT/WH |
6675 |
Left Rear Door Lock Indicator Control |
I |
- |
| 25 - 27 |
- |
- |
- |
Not Occupied |
- |
- |
| 28 |
0.35 |
BU |
2675 |
Left Front Exterior Door Handle Switch Unlock Signal |
I |
- |
| 29 |
0.35 |
GY |
2674 |
Left Front Door Exterior Switch Lock Signal |
I |
- |
| 30 |
0.35 |
GY/BU |
2677 |
Right Front Door Exterior Switch Lock Signal |
I |
- |
| 31 |
0.35 |
GY/BU |
4995 |
Right Rear Door Exterior Switch Unlock Signal |
I |
- |
| 32 |
0.35 |
BN/WH |
6654 |
Right Rear Door Handle Switch Signal 2 |
I |
- |
