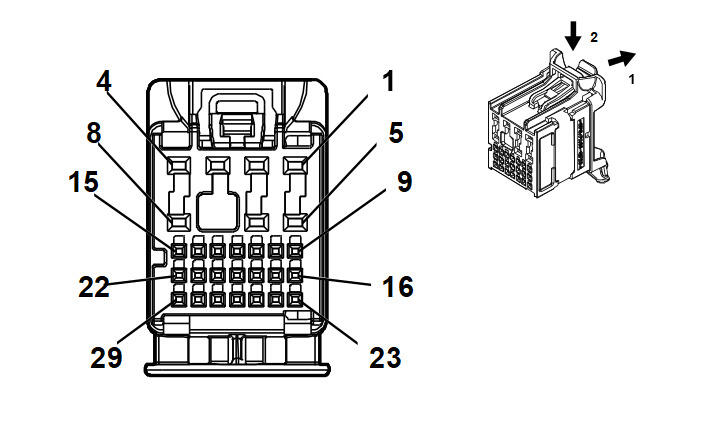

K9 Body Control Module X5
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Body Wiring Harness
- OEM Connector: 35364128
- Service Connector: 13534972
- Description: 29-Way F 0.5 NANO, 1.2 MCON Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| II |
84729890 |
J-35616-12 (BU) |
J-38125-553 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.5 |
BU/BN |
7573 |
A/C Compressor Solenoid Valve Control |
II |
- |
| 3 |
0.5 |
BU/YE |
7574 |
A/C Compressor Solenoid Valve Control |
II |
- |
| 4 |
0.5 |
VT/GY |
2683 |
Unlatch Actuators Unlatch Low Reference 1 |
II |
- |
| 5 |
0.5 |
GY |
157 |
Interior Lamp Control |
II |
- |
| 6 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control 1 |
II |
- |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.5 |
VT/BU |
2687 |
Left Front Door Unlatch Actuator Unlatch Control |
II |
- |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
BN/WH |
28 |
Horn Relay Control |
I |
- |
| 12 |
0.35 |
WH |
4978 |
AUTOSAR CAN Bus [-] 2 Serial Data |
I |
- |
| 13 |
0.35 |
BU/YE |
4979 |
AUTOSAR CAN Bus [+] 2 Serial Data |
I |
- |
| 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.35 |
WH/YE |
7557 |
Interior Door Handle Accent Lighting Control |
I |
- |
| 16 |
0.35 |
VT |
4301 |
Passive Entry Left Front Antenna Signal High |
I |
- |
| 17 |
0.35 |
GN/YE |
2855 |
Body Control Module LIN Bus 9 |
I |
- |
| 18 |
0.35 |
VT/GY |
126 |
Left Front Door Open Switch Signal |
I |
- |
| 19 |
0.35 |
GN/YE |
6134 |
Body Control Module LIN Bus 3 |
I |
- |
| 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.35 |
WH/BU |
6311 |
Cruise/ETC/TCC Brake Signal |
I |
- |
| 22 |
0.35 |
BN/VT |
193 |
Rear Defogger Relay Control |
I |
- |
| 23 |
0.35 |
VT/GY |
4302 |
Passive Entry Left Front Antenna Signal Low |
I |
- |
| 24 |
0.35 |
WH |
5359 |
Brake Apply Sensor Control |
I |
- |
| 25 |
0.35 |
BU/YE |
5361 |
Brake Apply Sensor Signal |
I |
- |
| 26 |
0.35 |
BK/BN |
5360 |
Brake Apply Sensor Low Reference |
I |
- |
| 27 - 29 |
- |
- |
- |
Not Occupied |
- |
- |
