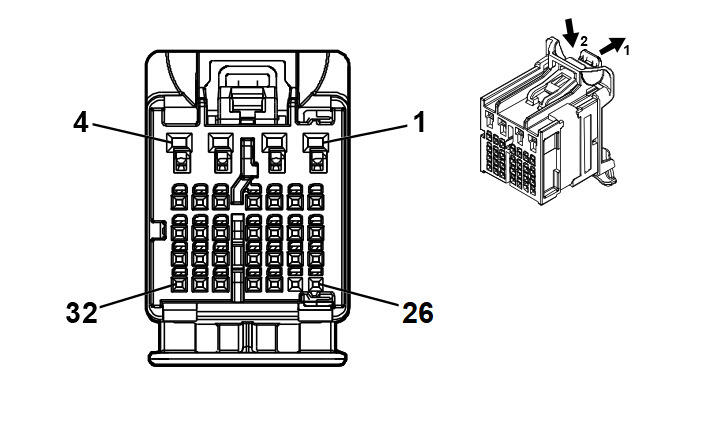

K9 Body Control Module X3
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type:Instrument Panel Wiring Harness
- OEM Connector: 35392288
- Service Connector: 13534977
- Description: 32-Way F 0.5 NANO, 1.2 MCON, stAK50h Series (BU with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| II |
84729890 |
J-35616-12 (BU) |
J-38125-553 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
GN/VT |
4786 |
Dome/Reading Lamp Enable Signal |
II |
- |
| 4 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control 1 |
II |
- |
| 5 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
WH/BN |
2203 |
Enhanced Driver Mode 2 Switch Signal |
I |
- |
| 9 |
0.35 |
YE/GY |
44 |
Instrument Panel Lamp Dimmer Switch Signal |
I |
- |
| 10 |
0.35 |
GN/BK |
2858 |
Body Control Module LIN Bus 12 |
I |
- |
| 11 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
0.35 |
WH |
3152 |
Lane Departure Warning Indicator Control |
I |
- |
| 14 |
0.35 |
GN/BN |
5852 |
Rear Parking Assist Disable LED Signal |
I |
- |
| 15 |
0.35 |
GN |
1110 |
Stop/Start Indicator Control |
I |
- |
| 16 |
0.35 |
GN/BU |
761 |
Blower Speed Feedback Signal |
I |
- |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
BK/YE |
5005 |
Instrument Panel Lamp Dimmer Switch Low Reference |
I |
- |
| 19 |
0.35 |
BU/BK |
5719 |
Ignition Mode Switch Start LED Signal |
I |
- |
| 20 - 22 |
- |
- |
- |
Not Occupied |
- |
- |
| 23 |
0.35 |
BU |
1111 |
Stop/Start Switch Signal |
I |
- |
| 24 |
- |
- |
- |
Not Occupied |
- |
- |
| 25 |
0.35 |
BU/GY |
187 |
Rear Fog Lamp Switch Signal |
I |
- |
| 26 |
0.35 |
GY/BN |
3904 |
Auto High Beam Assist Switch Signal |
I |
- |
| 27 |
0.35 |
GY/WH |
3153 |
Lane Departure Warning Disable Switch Signal |
I |
- |
| 28 - 30 |
- |
- |
- |
Not Occupied |
- |
- |
| 31 |
0.35 |
GY/GN |
2555 |
Rear Parking Assist Disable Signal |
I |
- |
| 32 |
0.35 |
BU/BN |
3161 |
Parking Assist Parallel Parking Disable Switch Signal |
I |
- |
