K9 Body Control Module X2
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

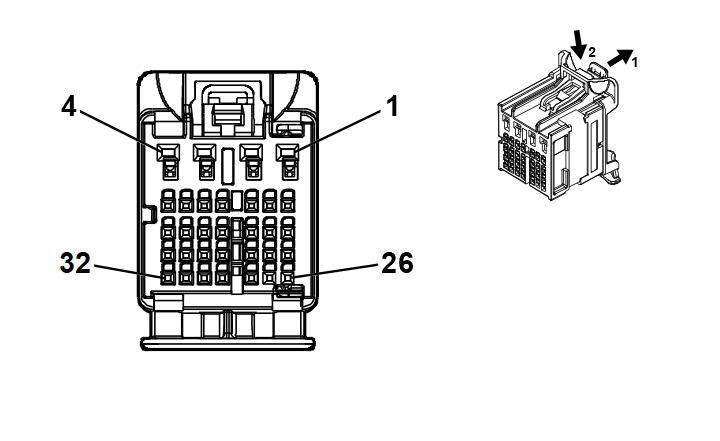

Connector Part Information
- Harness Type:Instrument Panel Wiring Harness
- OEM Connector: 35392289
- Service Connector: 13534980
- Description: 32-Way F 0.5 NANO, 1.2 MCON, stAK50h Series (PK with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| II |
84729890 |
J-35616-12 (BU) |
J-38125-553 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY |
157 |
Interior Lamp Control |
II |
- |
| 2 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
BU/GN |
5723 |
Ignition Mode Switch Mode Voltage |
I |
- |
| 6 - 8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
VT/YE |
5526 |
Tap Up/Tap Down Switch Signal |
I |
- |
| 10 |
0.35 |
YE/GN |
2202 |
Enhanced Driver Mode 1 Switch Signal |
I |
- |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.35 |
YE/BU |
1714 |
Windshield Wiper Switch Low Signal |
I |
- |
| 13 |
0.35 |
GY/GN |
5737 |
Distance Sensing Cruise Control Gap Up/Down Switch Signal |
I |
- |
| 14 |
0.35 |
BN/GN |
1884 |
Cruise Control Set/Coast/Resume/Accelerate Switch Signal |
I |
- |
| 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
BN/BK |
5720 |
Ignition Mode Switch Accessory LED Signal |
I |
- |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
GN/GY |
2431 |
Automatic Vehicle Hold Indicator Control |
I |
- |
| 19 |
0.35 |
WH/VT |
103 |
Headlamp Switch On Signal |
I |
- |
| 20 |
0.35 |
GN/GY |
13 |
Headlamp Switch Park Lamp Signal |
I |
- |
| 21 |
0.35 |
GN/BN |
306 |
Headlamp Switch Off Signal |
I |
- |
| 22 |
0.35 |
GY/BU |
3602 |
Curb View Enable Signal |
I |
- |
| 23 |
0.35 |
VT/BU |
2916 |
Right Turn Signal Switch Signal |
I |
- |
| 24 |
- |
- |
- |
Not Occupied |
- |
- |
| 25 |
0.35 |
BK/GY |
6009 |
Windshield Wiper Switch Low Reference |
I |
- |
| 26 |
0.35 |
WH/BK |
94 |
Windshield Washer Switch Signal |
I |
- |
| 27 |
0.35 |
YE/BN |
307 |
Headlamp Switch Flash Signal |
I |
- |
| 28 |
0.35 |
GN/WH |
3287 |
Horn Switch Signal |
I |
- |
| 29 |
0.35 |
WH/GN |
2915 |
Left Turn Signal Switch Signal |
I |
- |
| 30 |
0.35 |
BK/YE |
407 |
Sensor Low Reference |
I |
- |
| 31 |
0.35 |
GN/WH |
111 |
Hazard Warning Switch Signal |
I |
- |
| 32 |
0.35 |
WH |
524 |
High Beam Select Switch High Beam Signal |
I |
- |
