B357 Inside Ambient Air Quality Particulate Sensor Module
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

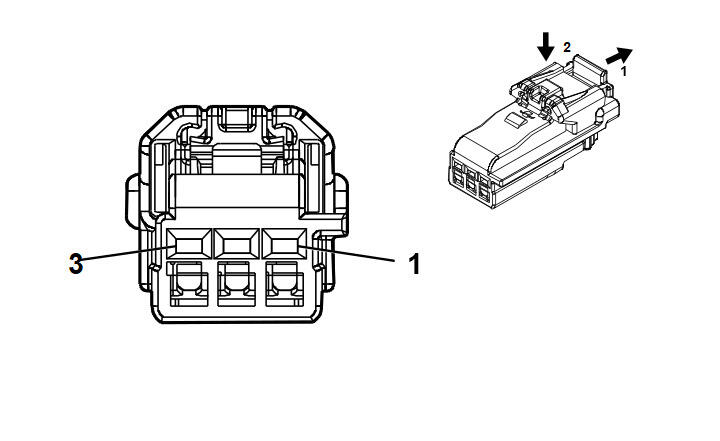

Connector Part Information
- Harness Type:Instrument Panel Wiring Harness
- OEM Connector: 33380214
- Service Connector: 84644600
- Description: 3-Way F 1.2 MCON Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-12 (BU) |
No Tool Required |
| II |
Not required |
J-35616-16 (L-GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/BK |
2139 |
Run/Crank Ignition 1 Voltage |
II |
- |
| 2 |
0.5 |
BK |
1350 |
Ground |
II |
- |
| 3 |
0.35 |
GN/BN |
6132 |
Body Control Module LIN Bus 1 |
I |
- |
