B82F Pedestrian Impact Detection Sensor - Upper Beam Front X2 (B3T)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

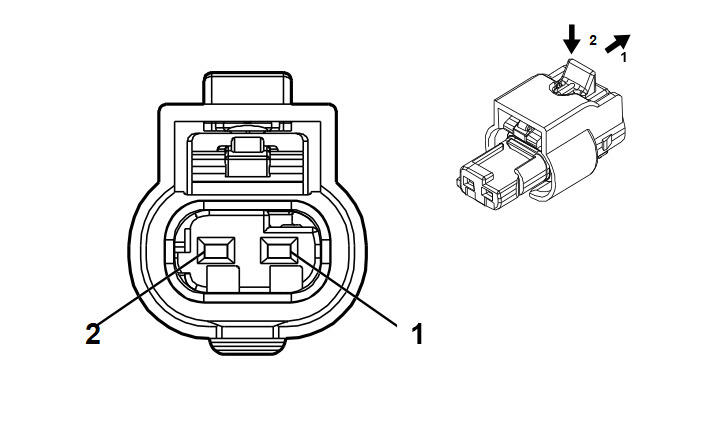

Connector Part Information
- Harness Type:Front Fascia Wiring Harness
- OEM Connector: 4-2272003-5
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-12 (BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/YE |
4038 |
Pedestrian Impact Detection Control Module Signal |
I |
- |
| 2 |
0.5 |
BK/VT |
4045 |
Pedestrian Impact Detection Control Module Low Reference |
I |
- |
