B14DB Automatic Transmission Intermediate Speed Sensor 2
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

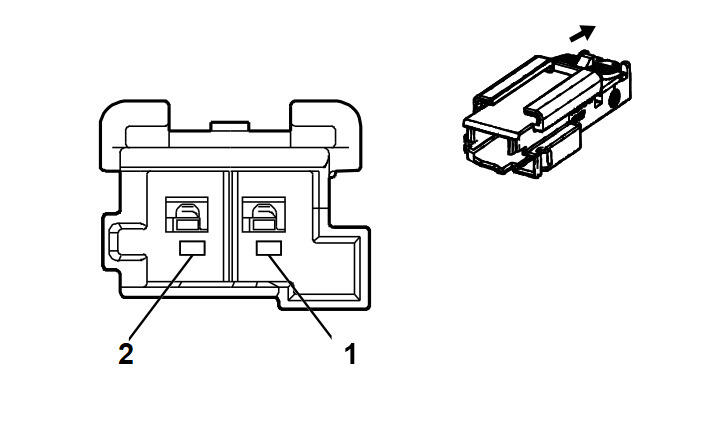

Connector Part Information
- Harness Type:Automatic Transmisson Case Wiring Harness
- OEM Connector: 2272160-2
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 1.2 MCON Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-13 (BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH/BU |
4510 |
Transmission Intermediate Speed Signal |
I |
- |
| 2 |
0.5 |
BU |
4171 |
Transmission Input Shaft Speed Sensor Circuit 9V Reference |
I |
- |
