A7 Fuel Tank Fuel Pump Module
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

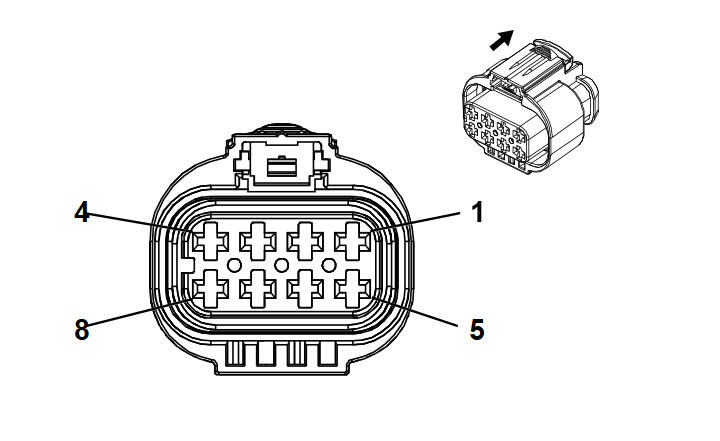

Connector Part Information
- Harness Type:Fuel Sender Wiring Harness
- OEM Connector: 3-2109441-8
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 2.8 Series, Sealed (L-BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-35 (VT) |
No Tool Required |
| II |
Not required |
J-35616-4A (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
GY |
120 |
Fuel Pump Control |
I |
- |
| 2 |
2.5 |
YE/GY |
4137 |
Fuel Pump Supply Voltage Phase 2 |
I |
- |
| 3 |
2.5 |
WH/BN |
4138 |
Fuel Pump Supply Voltage Phase 3 |
I |
- |
| 4 |
0.5 |
BU |
7444 |
Fuel Pump Assembly Shield Ground |
II |
- |
| 5 |
0.5 |
BU/GN |
1936 |
Primary Fuel Level Sensor Signal |
II |
- |
| 6 |
0.5 |
BK/GN |
6281 |
Fuel Level Sensor Low Reference |
II |
- |
| 7 |
0.5 |
BU/WH |
1937 |
Secondary Fuel Level Sensor Signal |
II |
- |
| 8 |
0.5 |
BK/BU |
6282 |
Fuel Level Sensor 2 Low Reference |
II |
- |
