A26 Heater and Air Conditioning User Interface Control - Front
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

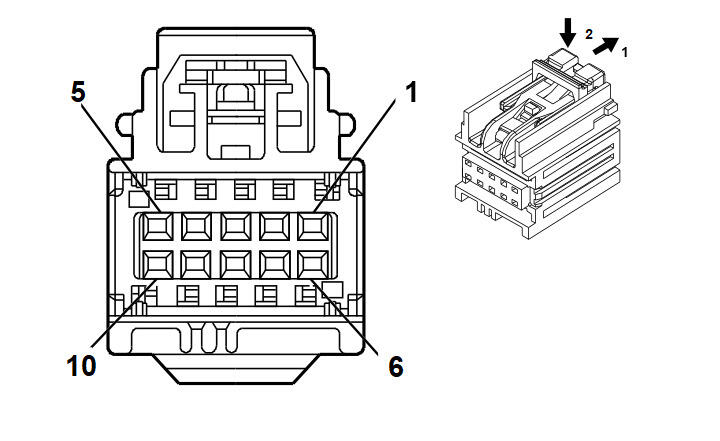

Connector Part Information
- Harness Type:Instrument Panel Wiring Harness
- OEM Connector: 33315379
- Service Connector: 13509649
- Description: 10-Way F 0.64 YESC Kaizen Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19300629 |
J-35616-64B (L-BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD/BU |
3240 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BU/WH |
4985 |
AUTOSAR CAN Bus [+] 5 Serial Data |
I |
- |
| 4 |
0.35 |
BU/WH |
4985 |
AUTOSAR CAN Bus [+] 5 Serial Data |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
GY/GN |
4636 |
HVAC System Enable Signal |
I |
- |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
BU/YE |
4984 |
AUTOSAR CAN Bus [-] 5 Serial Data |
I |
- |
| 9 |
0.35 |
BU/YE |
4984 |
AUTOSAR CAN Bus [-] 5 Serial Data |
I |
- |
| 10 |
0.5 |
BK/WH |
1451 |
Signal Ground |
I |
- |
