UHF Short Range Low Energy Remote Control Access Transceiver Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

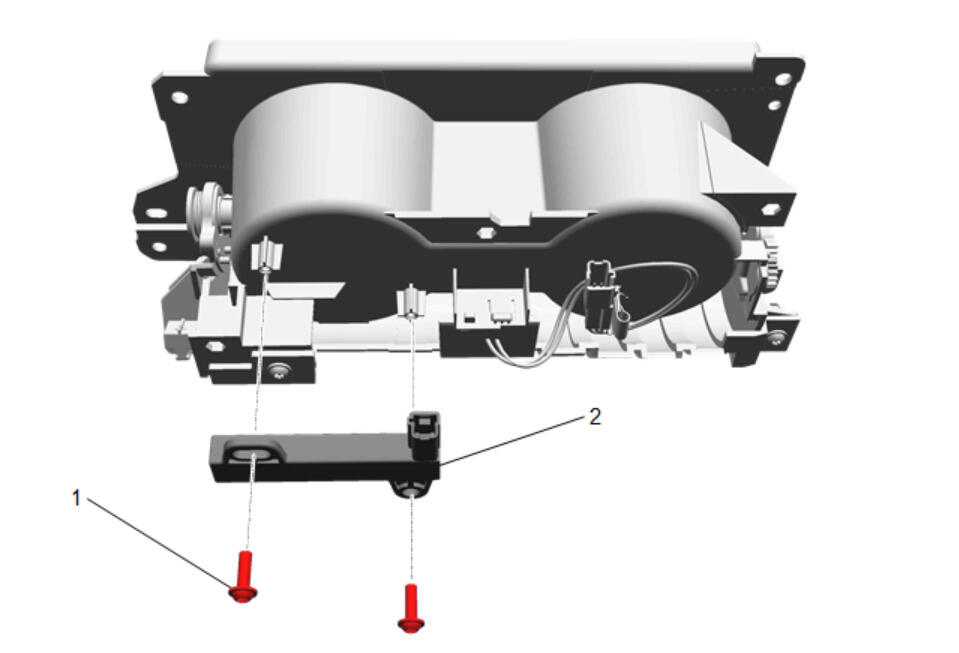

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Cup Holder Replacement , or Front Floor Console Cup Holder Replacement (Blackwing) |
|
| 1 | UHF Short Range Low Energy Remote Control Access Transceiver Bolt [2x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | UHF Short Range Low Energy Remote Control Access Transceiver Procedure Disconnect the electrical connector. |
