Forward Collision Alert Display Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

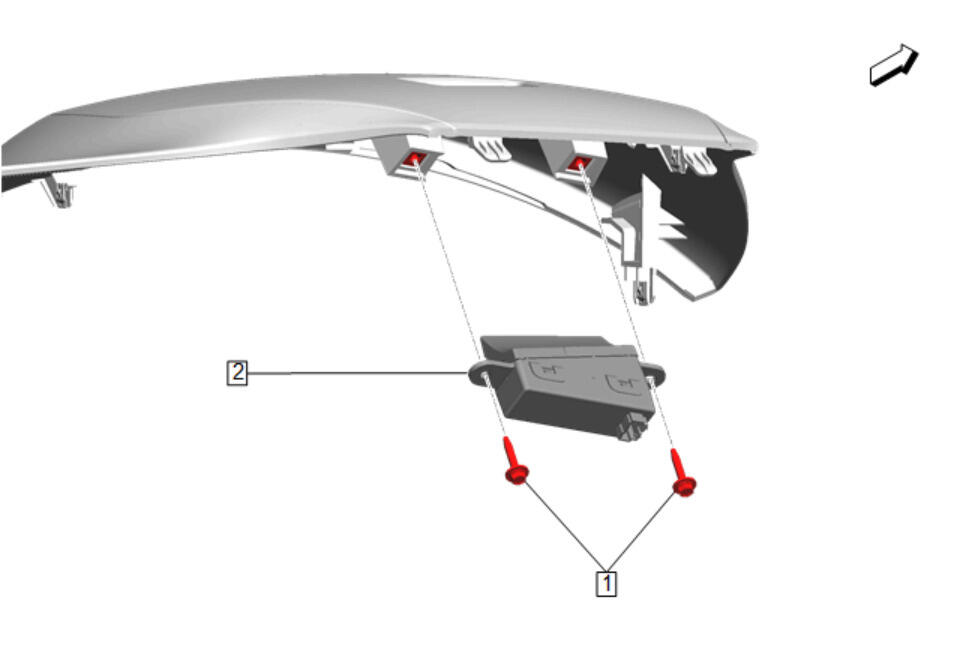

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Instrument Cluster Hood Replacement |
|
| 1 | Forward Collision Alert Display Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5N.m (22 lb in) |
| 2 | Forward Collision Alert Display |
