Airbag Front Passenger Presence Module Replacement (Restraints Occupant Classification System Module)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

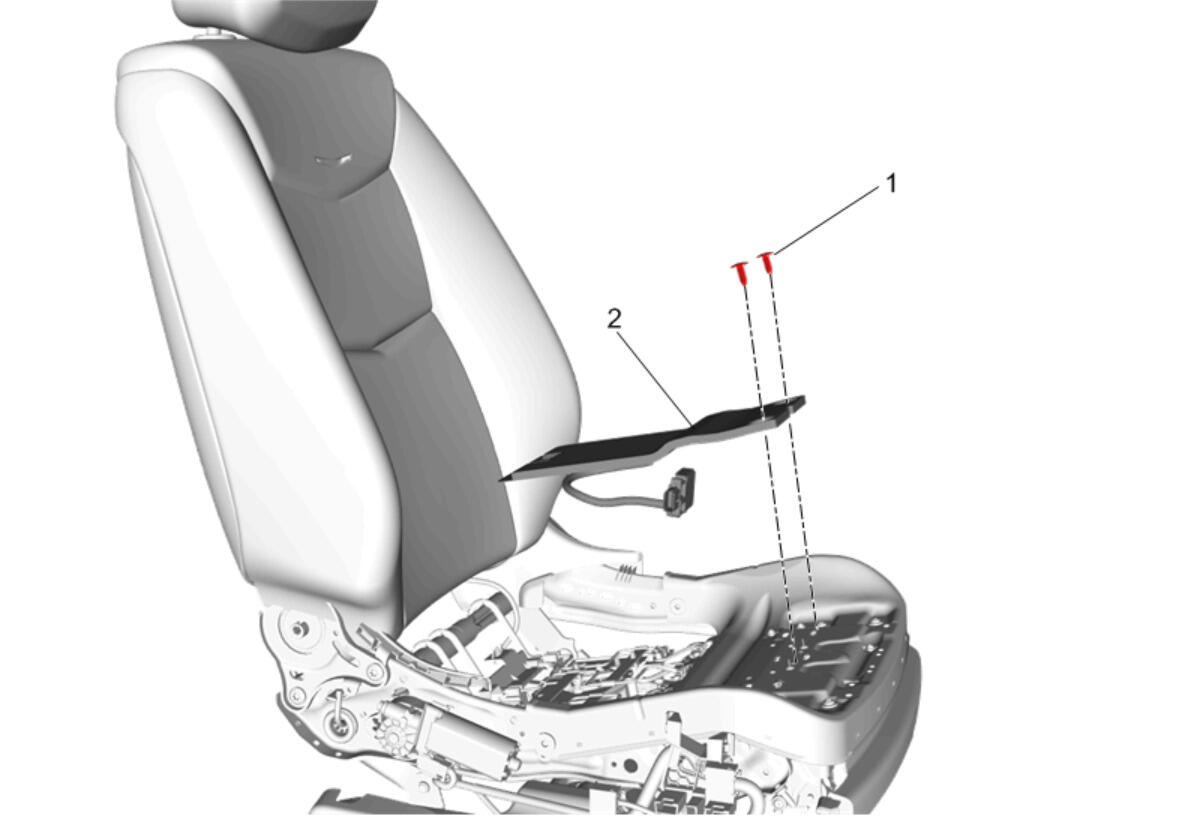

Callout	Component Name
WARNING: To avoid personal injury, perform a passenger presence sensor rezeroing/ learn on the passenger presence system whenever you remove or replace the seat cushion trim. Failure to do so may cause the system to malfunction. WARNING: The passenger seat cushion assembly is serviced in a kit with the airbag front passenger presence module, cushion pad (and if equipped, heat mat, vent mat, vent mat support, comfort pads). All components in the service kit are assembled and calibrated as a unit and must be replaced as a complete assembly to prevent possible injury to the occupant. Using only some of the components in the service kit will cause the passenger presence system to operate improperly. Preliminary Procedure Front Seat Cushion Cover and Pad Replacement Front Seat Cushion Cover and Pad Replacement (Blackwing)
1	Airbag Front Passenger Presence Module Retainer [2x]
2	Airbag Front Passenger Presence Module Procedure Unhook the module from the bracket on the underside of seat frame and push up through seat pan. Disconnect the electrical connector and remove the sensor and module from the seat pan. NOTE: The Regulatory Name for this component because of SAE J1930 is Restraints Occupant Classification System Module. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

WARNING:

To avoid personal injury, perform a passenger presence sensor rezeroing/ learn on the passenger presence system whenever you remove or replace the seat cushion trim. Failure to do so may cause the system to malfunction.

WARNING:

The passenger seat cushion assembly is serviced in a kit with the airbag front passenger presence module, cushion pad (and if equipped, heat mat, vent mat, vent mat support, comfort pads). All components in the service kit are assembled and calibrated as a unit and must be replaced as a complete assembly to prevent possible injury to the occupant. Using only some of the components in the service kit will cause the passenger presence system to operate improperly.

Preliminary Procedure Front Seat Cushion Cover and Pad Replacement Front Seat Cushion Cover and Pad Replacement (Blackwing)

Airbag Front Passenger Presence Module Retainer [2x]

Airbag Front Passenger Presence Module

Procedure

Unhook the module from the bracket on the underside of seat frame and push up through seat pan.
Disconnect the electrical connector and remove the sensor and module from the seat pan.

NOTE:

The Regulatory Name for this component because of SAE J1930 is Restraints Occupant Classification System Module.

Perform the necessary programming and setup procedure: Control Module References
