Serial Data Gateway Module Replacement (Equinox)

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

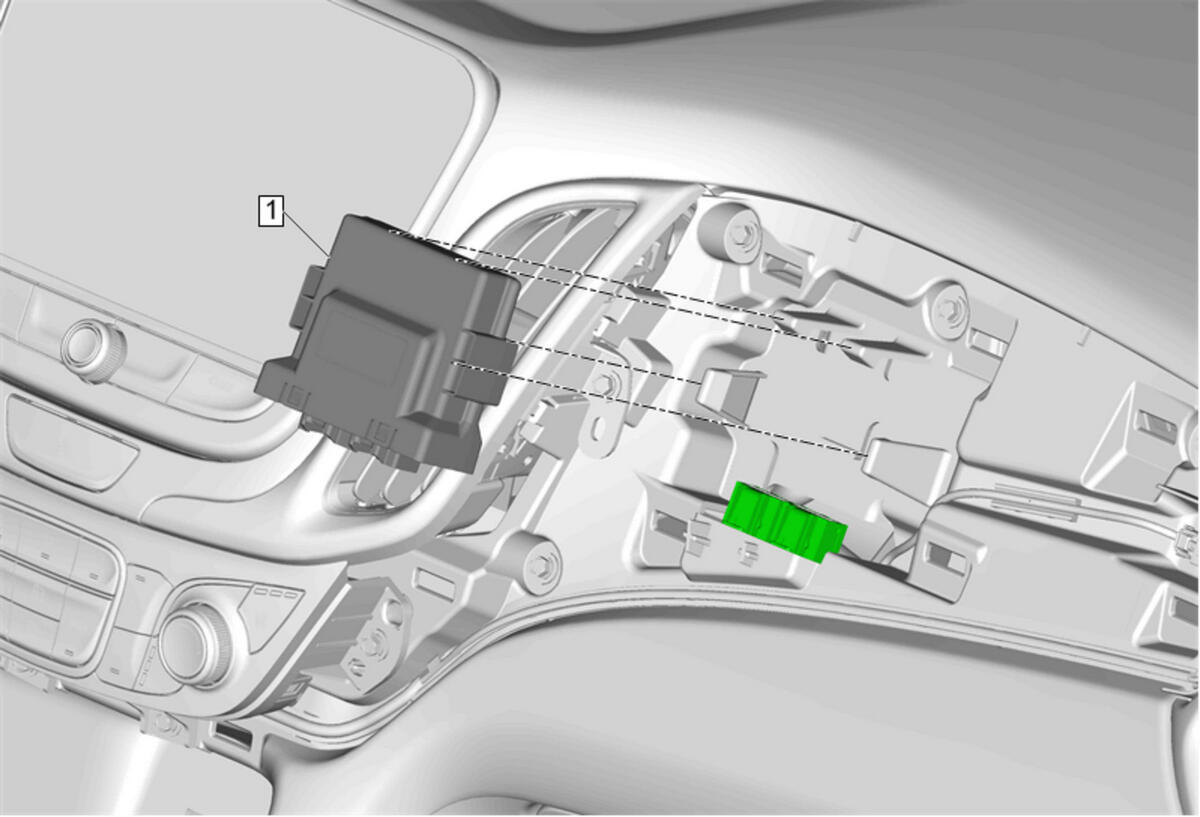

Fig 1: Serial Data Gateway Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Trim Pad Replacement - Right Side (Equinox)
1	Serial Data Gateway Module Procedure Release the retaining tabs. Disconnect the electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Instrument Panel Trim Pad Replacement - Right Side (Equinox)

Serial Data Gateway Module

Procedure

Release the retaining tabs.
Disconnect the electrical connectors.
Perform the necessary programming and setup procedure:Control Module References
