Body Control Module Replacement (Terrain)

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

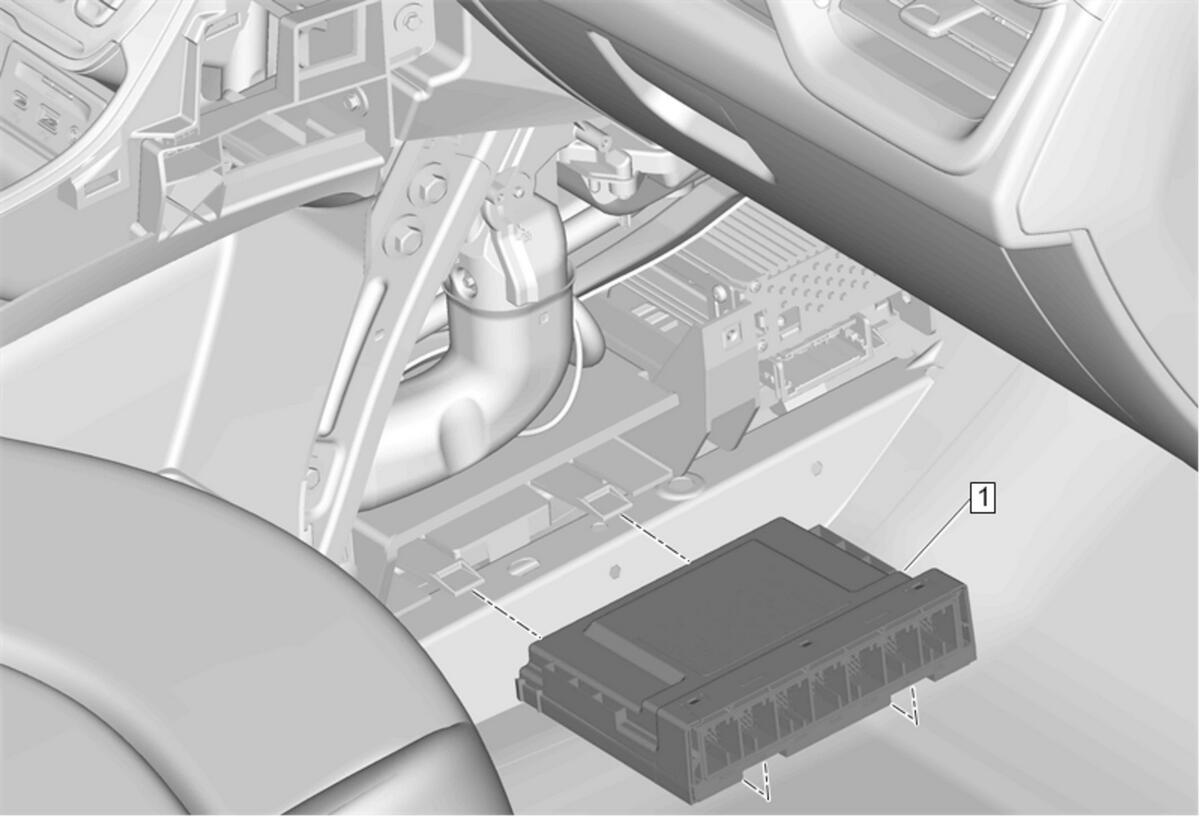

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Panel Replacement - Right Side (Terrain)
1	Body Control Module Procedure Disconnect the electrical connectors. Remove wire harness plastic retainer. Push tabs to release the body control module from the bracket. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Front Floor Console Extension Panel Replacement - Right Side (Terrain)

Body Control Module

Procedure

Disconnect the electrical connectors.
Remove wire harness plastic retainer.
Push tabs to release the body control module from the bracket.
Perform the necessary programming and setup procedure:Control Module References
