Body Control Module Replacement (Equinox)

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

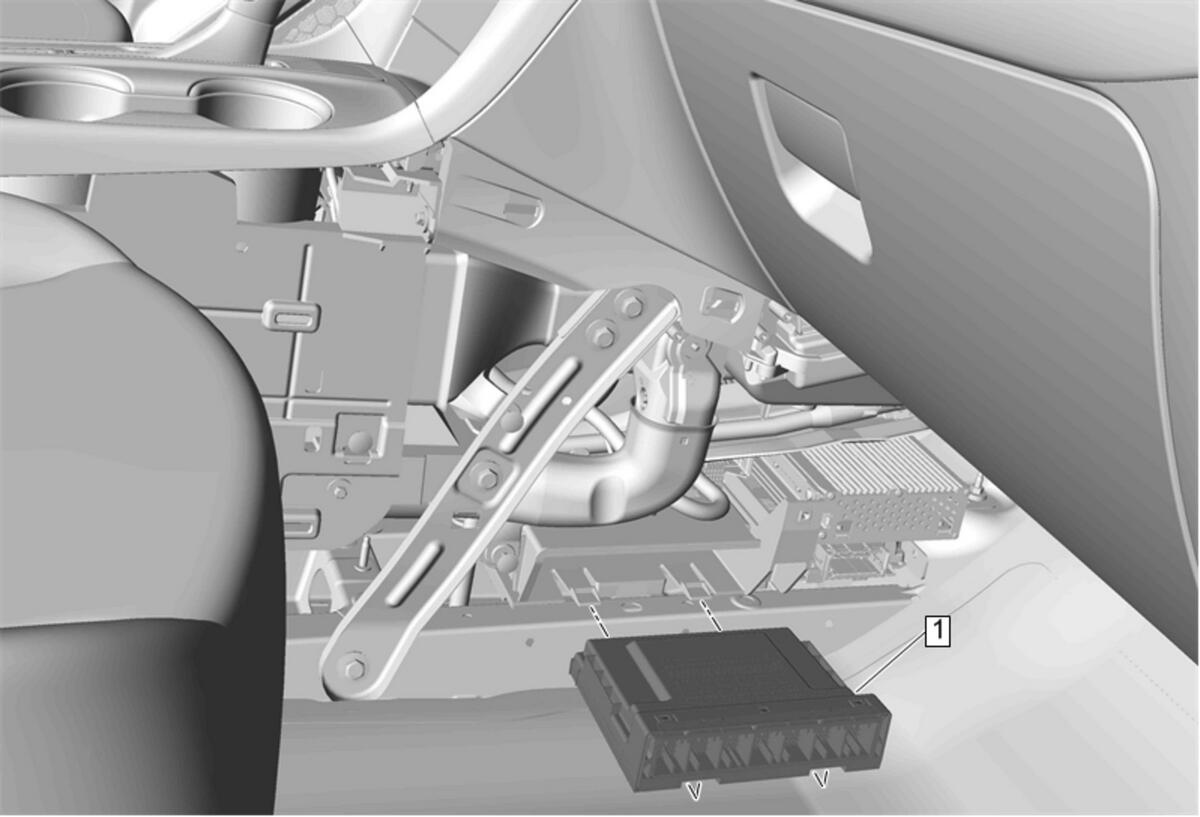

Fig 1: Body Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Panel Replacement - Right Side (Equinox)
1	Body Control Module Procedure Disconnect the electrical connectors. Push tabs to release the body control module from the bracket. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Front Floor Console Extension Panel Replacement - Right Side (Equinox)

Body Control Module

Procedure

Disconnect the electrical connectors.
Push tabs to release the body control module from the bracket.
Perform the necessary programming and setup procedure:Control Module References
