Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

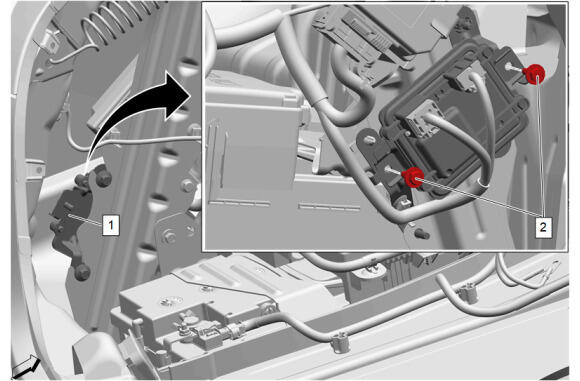

Rear Differential Clutch Control Module (1) - Install

CAUTION:

Refer to Fastener Caution .

Rear Differential Clutch Control Module Bolt (2) - Install and tighten [2x] 7.5-10.5 N.m (66-93 lb in)
Courtesy of GENERAL MOTORS COMPANY

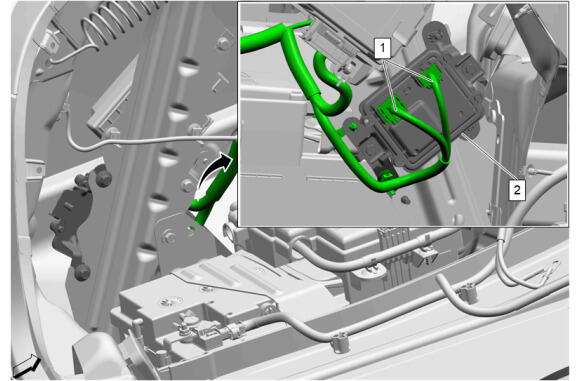

Electrical Connector (1) - Connect [2x]
Courtesy of GENERAL MOTORS COMPANY

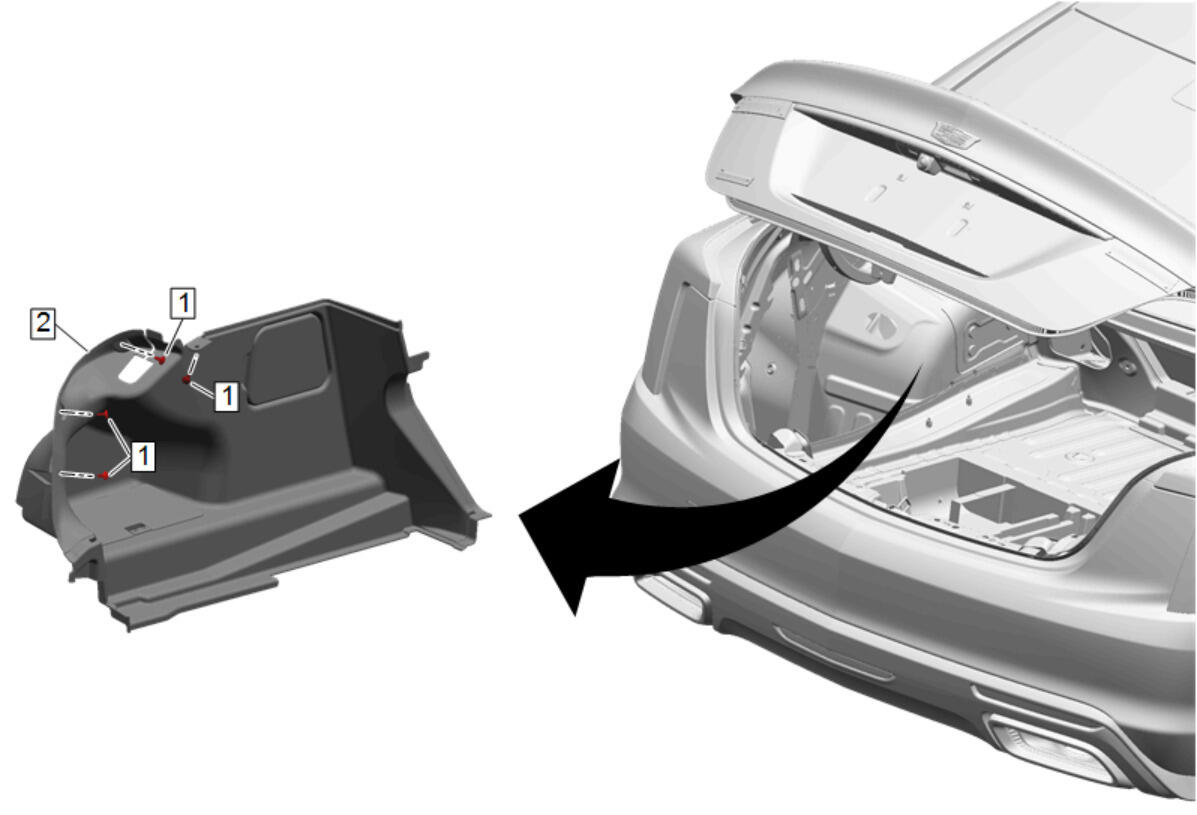

Rear Compartment Side Trim-Left Side (2) - Install
Rear Compartment Side Trim Retainer (1) - Install NEW [4x]
Courtesy of GENERAL MOTORS COMPANY

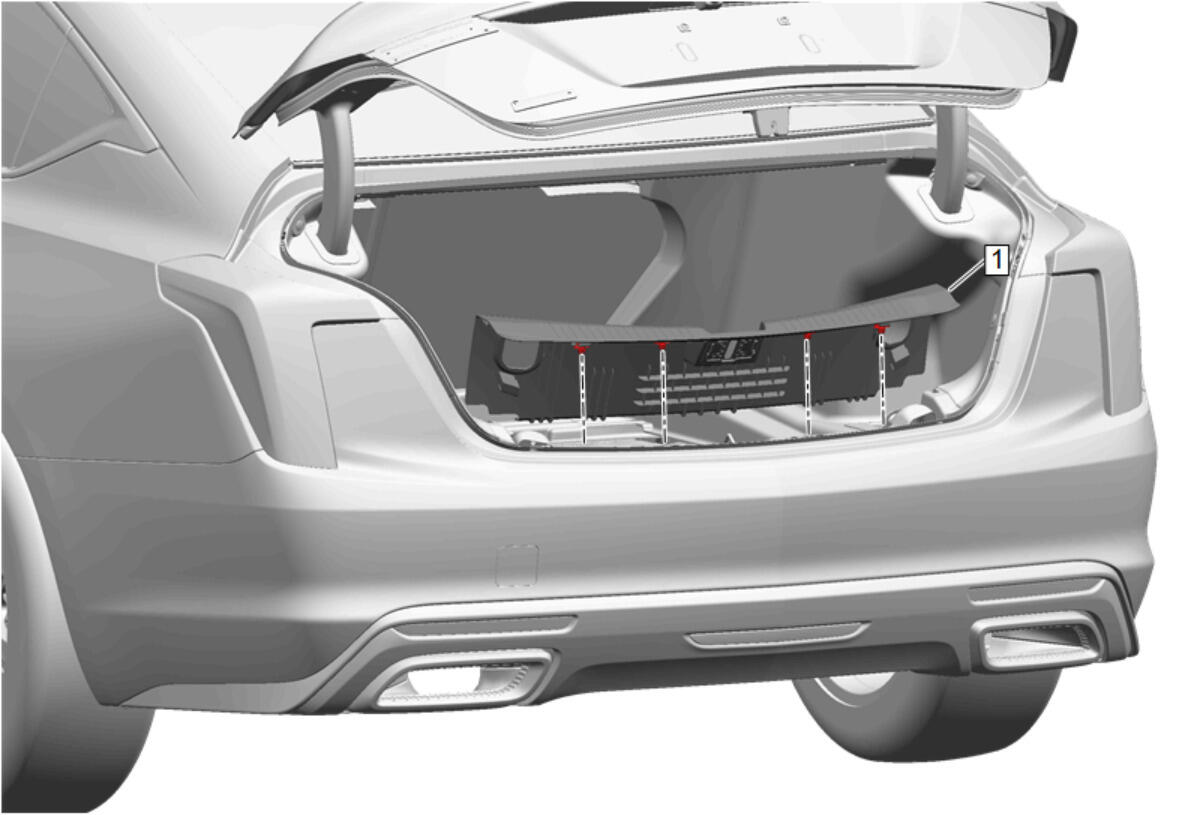

Rear End Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

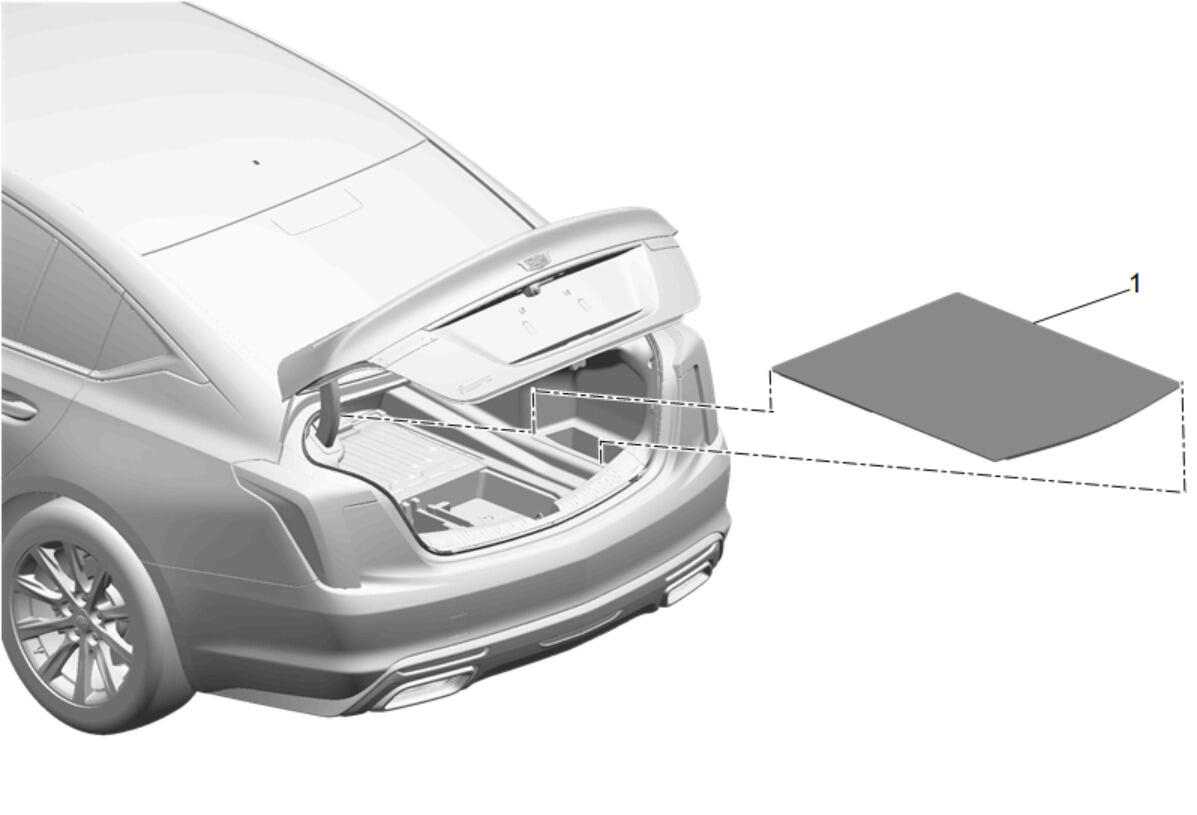

Rear Compartment Floor Panel Trim (1) - Install
Courtesy of GENERAL MOTORS COMPANY

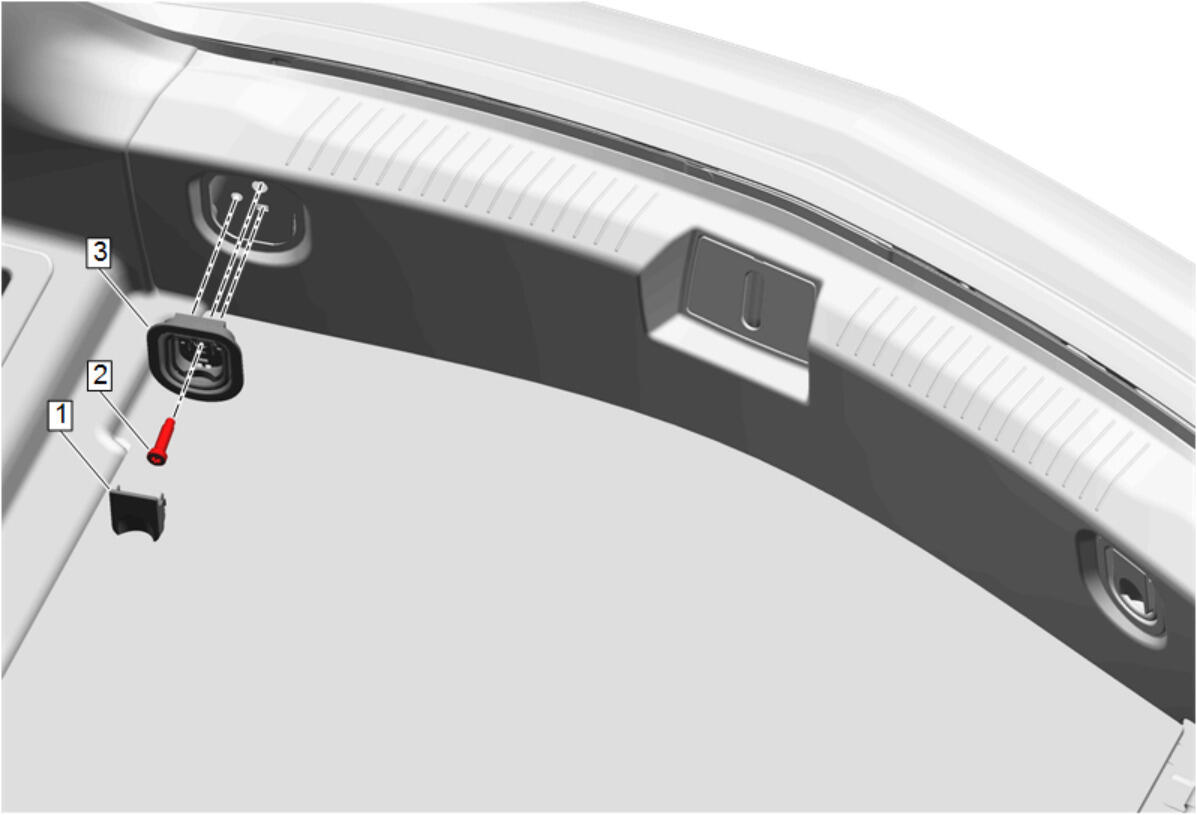

Cargo Tie Down Loop Anchor Plate (3) - Install [2x]
Cargo Tie Down Loop Bolt (2) - Install and tighten [2x] 16-24 N.m (12-18 lb ft)
Cargo Tie Down Loop Bolt Cap (1) - Install [2x]
Program the control module: K164 Differential Control Module: Programming and Setup
