Q17B Fuel Injector 2
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

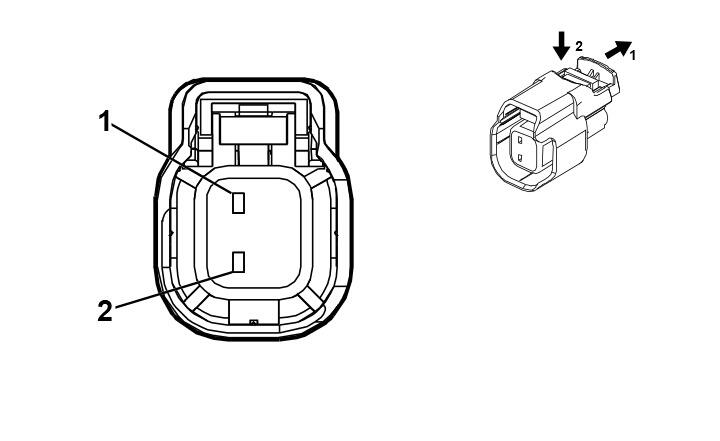

Connector Part Information
- Harness Type: Fuel Injector Wiring Harness
- OEM Connector: 34062-4006
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
BU |
4802 |
Direct Fuel Injector High Voltage Control Cylinder 2 |
I |
- |
| 2 |
- |
BU / GY |
4902 |
Direct Fuel Injector High Voltage Supply Cylinder 2 |
I |
- |
