B36 Engine Oil Temperature Sensor

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

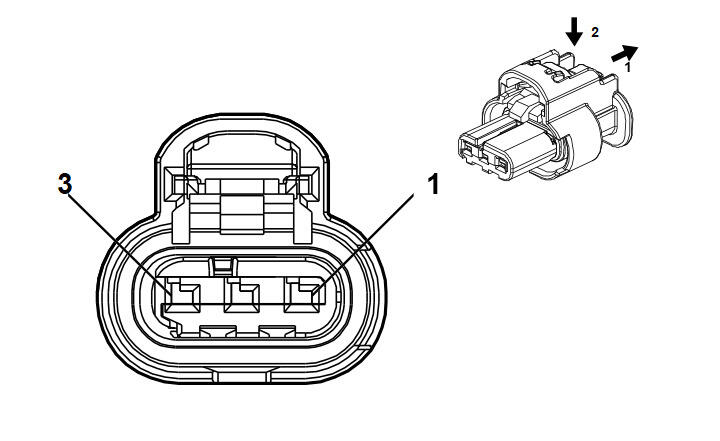

GM4994602Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Engine Wiring Harness
  • OEM Connector: 33358809
  • Service Connector: 19371199
  • Description: 3-Way F 1.2 MCON-CB Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I Not required J-35616-16 (L-GN) No Tool Required
Pin Size Color Circuit Function Terminal Type ID Option
1 0.5
0.5
BK / YE
BK / GY
548
626
Engine Control Sensors Low Reference 1
Engine Control Vehicle Sensors Low Reference 1
I
I
L3B
LSY
2 0.5 BN / BU 357 Oil Temperature Sensor Signal I -
3 0.5 VT 7485 Engine Oil Temperature Sensor 2 Signal I -
