B174W Front View Camera - Windshield
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

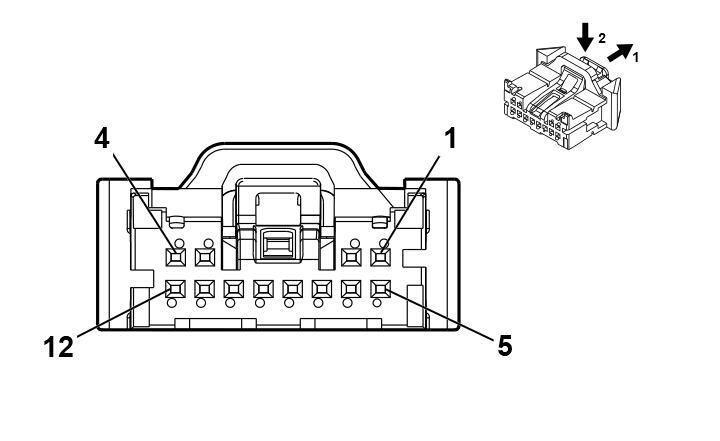

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 84944580 | EL-35616-58 (BK) | EL-38125-58 |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | BK | 2350 | Ground | I | - |
| 2 | - | - | - | Not Occupied | - | - |
| 3 | 0.35 | RD / YE | 6540 | Battery Positive Voltage | I | - |
| 4 | - | - | - | Not Occupied | - | - |
| 5 | 0.35 0.35 |
BU / YE BU / GY |
4979 4105 |
AUTOSAR CAN Bus [+] 2 Serial Data AUTOSAR CAN Bus [+] 8 Serial Data |
I I |
- (UGN/ULK/UVZ) (UGN-UKL/UVZ-UKL) |
| 6 | 0.35 0.35 |
WH WH / GY |
4978 4104 |
AUTOSAR CAN Bus [-] 2 Serial Data AUTOSAR CAN Bus [-] 8 Serial Data |
I I |
- (UGN/ULK/UVZ) (UGN-UKL/UVZ-UKL) |
| 7 | 0.35 0.35 |
BU / YE BU / GY |
4979 4105 |
AUTOSAR CAN Bus [+] 2 Serial Data AUTOSAR CAN Bus [+] 8 Serial Data |
I I |
- (UGN/ULK/UVZ) (UGN-UKL/UVZ-UKL) |
| 8 | 0.35 0.35 |
WH WH / GY |
4978 4104 |
AUTOSAR CAN Bus [-] 2 Serial Data AUTOSAR CAN Bus [-] 8 Serial Data |
I I |
- (UGN/ULK/UVZ) (UGN-UKL/UVZ-UKL) |
| 9 - 12 | - | - | - | Not Occupied | - | - |
