Remote Control Door Lock Receiver Replacement
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Refer to Headlining Trim Panel Replacement |
|

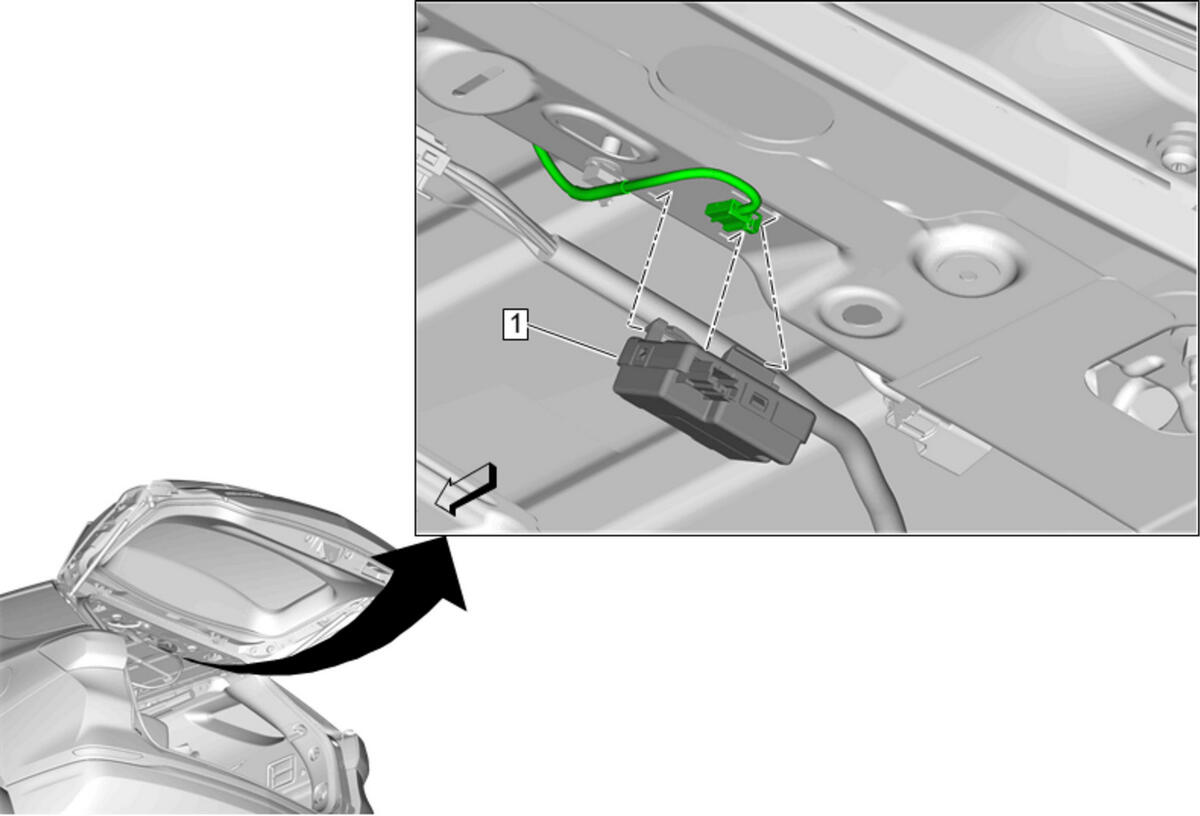

| 1 | Remote Control Door Lock Receiver Procedure Disconnect the electrical connector. |
