S198 Drive Mode Selector Auxiliary Switch
WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

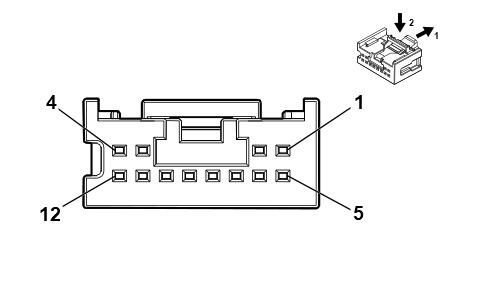

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 13507114
- Service Connector: Service by Harness - See Part Catalog
- Description: 12 -Way F Mini 50 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
WH / BN |
2203 |
Enhanced Driver Mode 2 Switch Signal |
I |
- |
| 2 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
- |
BK / WH |
6051 |
Steering Wheel Ground |
I |
- |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
- |
BU / GY |
4990 |
Driver Mode 1 Switch Signal |
I |
- |
| 9 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
