K36 Restraints Control Module X1 (-KEM)

WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

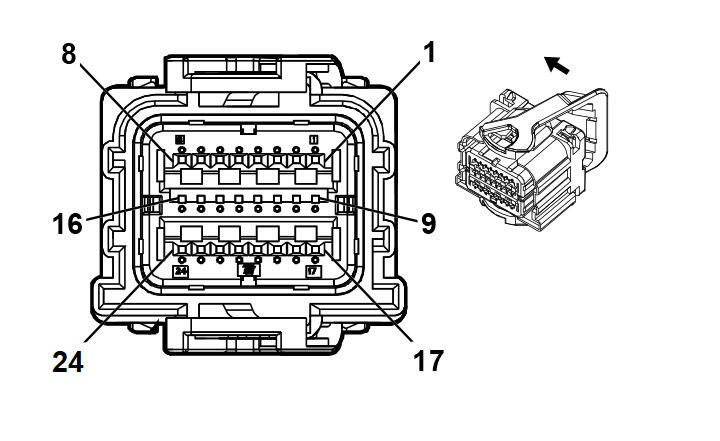

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 33382227
Service Connector: 13579297
Description: 24 -Way F 0.64 Series, Sealed (YE)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19328872	J-35616-64B (LT BU)	J-38125-11A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	RD / GN	4440	Battery Positive Voltage	I	-
2	0.35	VT / GY	1839	Run/Crank Ignition 1 Voltage	I	-
3	0.35	OG / VT	3021	Steering Wheel Air Bag Stage 1 High Control	I	-
4	0.35	BN / OG	3020	Steering Wheel Air Bag Stage 1 Low Control	I	-
5	0.5	OG / WH	3024	Passenger Instrument Panel Air Bag Stage 1 Low Control	I	-
6	0.5	YE / OG	3025	Passenger Instrument Panel Air Bag Stage 1 High Control	I	-
7	0.35	WH	4986	AUTOSAR CAN Bus [-] 1 Serial Data	I	-
8	0.35	BU	4987	AUTOSAR CAN Bus [+] 1 Serial Data	I	-
9 - 10	-	-	-	Not Occupied	-	-
11	0.35	OG / GN	3023	Steering Wheel Air Bag Stage 2 High Control	I	-
12	0.35	WH / OG	3022	Steering Wheel Air Bag Stage 2 Low Control	I	-
13	0.5	OG / VT	3026	Passenger Instrument Panel Air Bag Stage 2 Low Control	I	-
14	0.5	GY / OG	3027	Passenger Instrument Panel Air Bag Stage 2 High Control	I	-
15	0.35	WH	4986	AUTOSAR CAN Bus [-] 1 Serial Data	I	-
16	0.5	BU	4987	AUTOSAR CAN Bus [+] 1 Serial Data	I	-
17	0.5	BK / WH	1751	Signal Ground	I	-
18	-	-	-	Not Occupied	-	-
19	0.5	OG / BU	3078	Driver Knee Air Bag High Control	I	-
20	0.5	GY / OG	3079	Driver Knee Air Bag Low Control	I	-
21	0.5	WH / OG	3077	Passenger Knee Air Bag Low Control	I	-
22	0.5	OG / BU	3076	Passenger Knee Air Bag High Control	I	-
23 - 24	-	-	-	Not Occupied	-	-
