S126 Drive Mode Select Switch (-EPH)
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

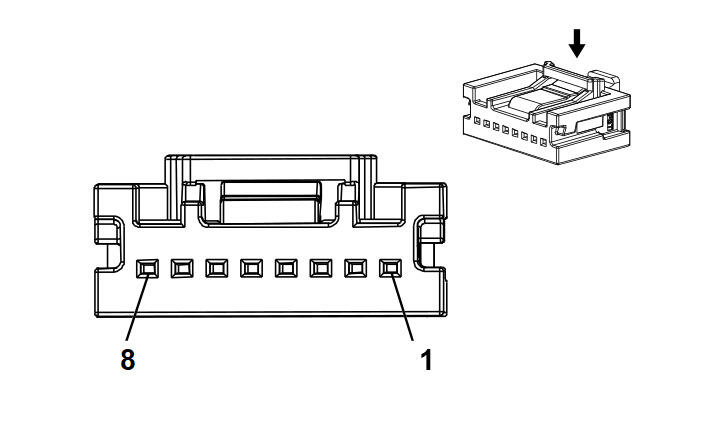

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | EL-35616-58 (BK) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | YE | 6817 | LED Backlight Dimming Control | I | JHD/F48/V92-EPH |
| 2 | 0.35 0.35 |
BU/YE BU/GY |
6844 553 |
ABS/TCS Hill Descent Control Switch Signal Shift Select Switch Performance Signal |
I I |
JHD-EPH V92-EPH |
| 3 | 0.35 | GY | 4109 | Driver Mode Switch 5V Reference | I | F48-EPH |
| 4 | 0.35 | WH/VT | 4108 | Driver Mode Switch Signal | I | - |
| 5 | 0.35 | WH | 6816 | Indicator Dimming Control | I | - |
| 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.35 | GY/GN | 1561 | AWD Indicator Control | I | F48-EPH |
| 8 | 0.35 | BK | 2250 | Ground | I | JHD/F48/V92-EPH |
