K32 Steering Wheel Heating Control Module (UVD)
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
|
|

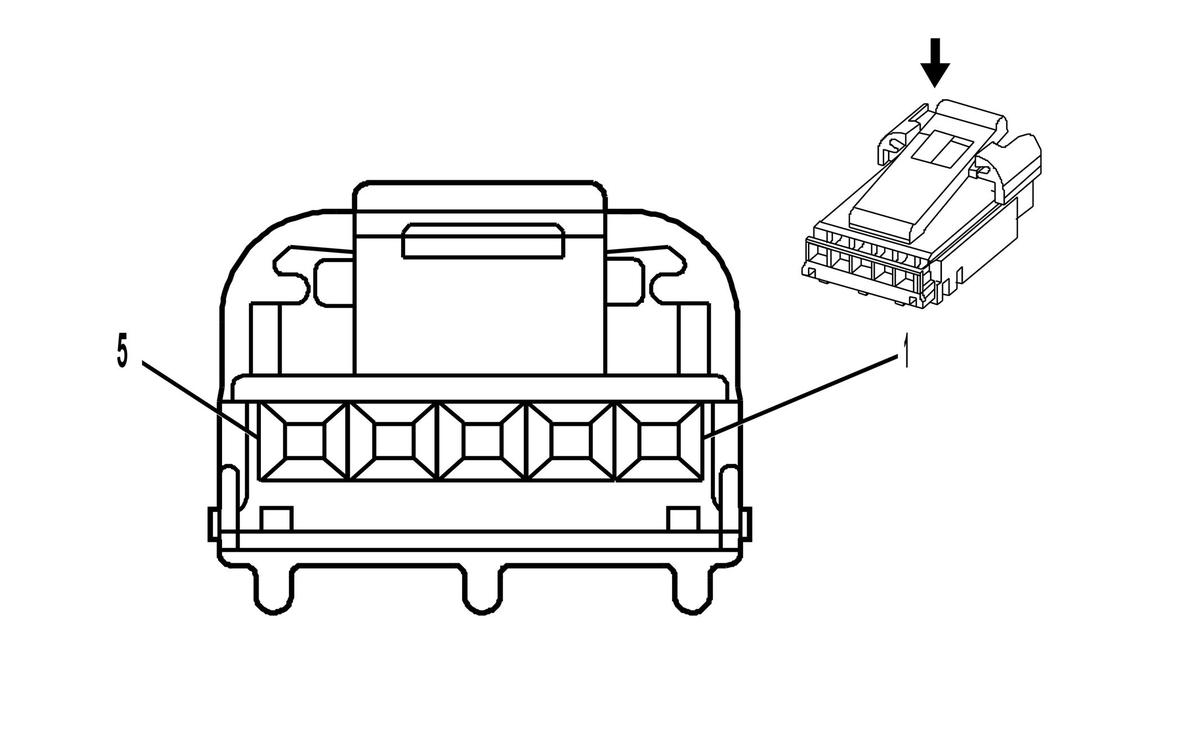

Connector Part Information
- Harness Type: Steering Wheel
- OEM Connector: 31072-1040
- Service Connector: Service by Harness - See Part Catalog
- Description: 5-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-65B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN/ |
5885 |
Heated Steering Wheel Voltage Reference |
I |
- |
| 2 |
0.35 |
GN/RD |
5884 |
Heated Steering Wheel Switch LED Control |
I |
- |
| 3 |
0.5 |
OG |
739 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 4 |
0.5 |
BK |
1650 |
Ground |
I |
- |
| 5 |
0.5 |
BK |
1650 |
Ground |
I |
- |
