Parking Assist Control Module Replacement (Terrain)

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

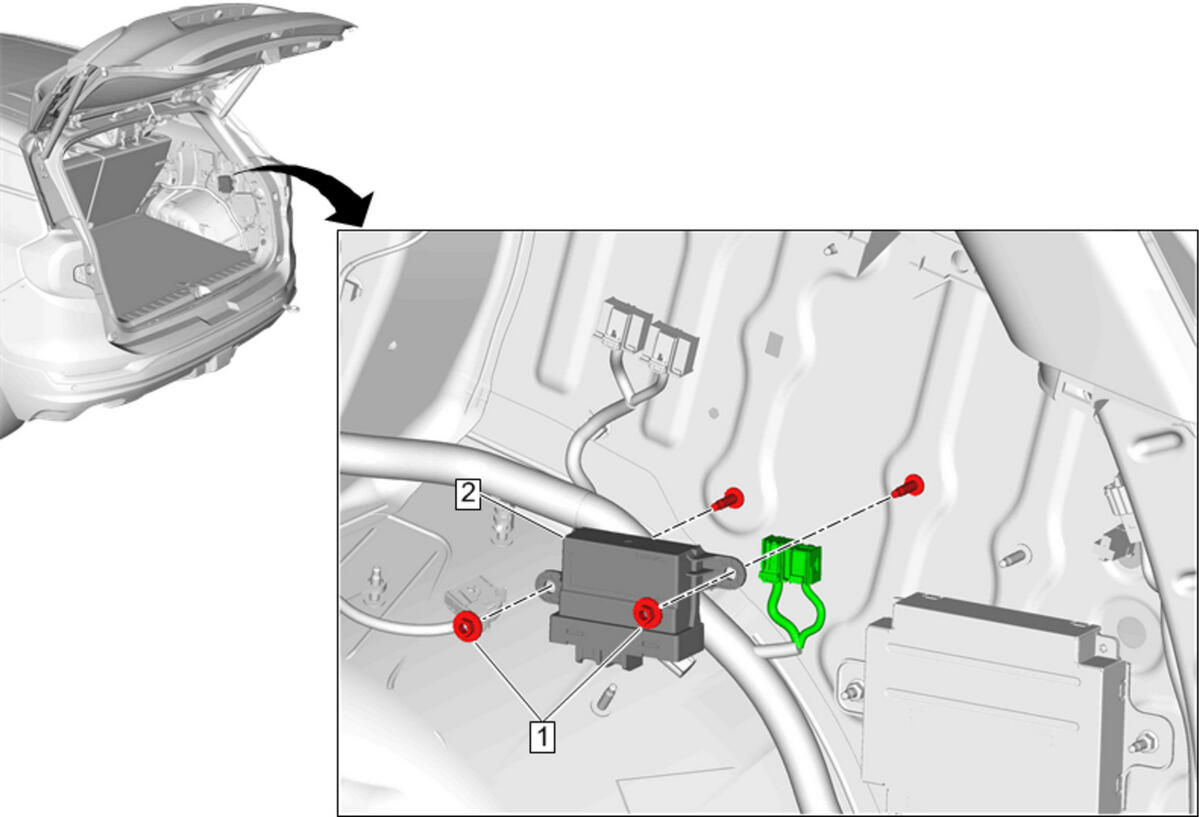

Fig 1: Parking Assist Control Module (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Left Side)Quarter Lower Rear Trim Panel Replacement (Right Side)
1	Parking Assist Alarm Control Module Nut [2x] CAUTION: Fastener Caution 6 N.m (53 lb in)
2	Parking Assist Control Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Quarter Lower Rear Trim Panel Replacement (Left Side)Quarter Lower Rear Trim Panel Replacement (Right Side)

Parking Assist Alarm Control Module Nut [2x]

CAUTION:

Fastener Caution

6 N.m (53 lb in)

Parking Assist Control Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure:Control Module References
