Power Transfer Unit Actuator, Seal and Bolt Installation
WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

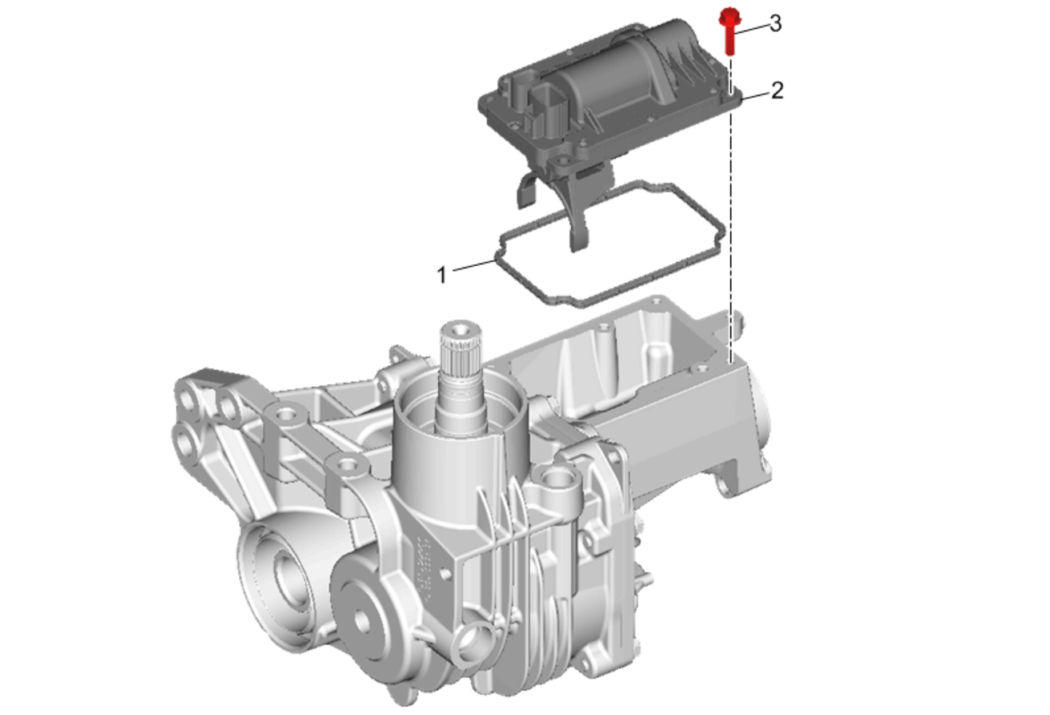

Courtesy of GENERAL MOTORS COMPANY Power Transfer Unit Actuator, Seal and Bolt Installation
| Callout |
Component Name |
| 1 |
Power Transfer Unit Shift Actuator Seal
Procedure
Install a NEW seal. |
| 2 |
Power Transfer Unit Shift Actuator |
| 3 |
Power Transfer Unit Shift Actuator Bolt [4x]
Tighten
9 N.m (80 lb in) |
