Installation Procedure

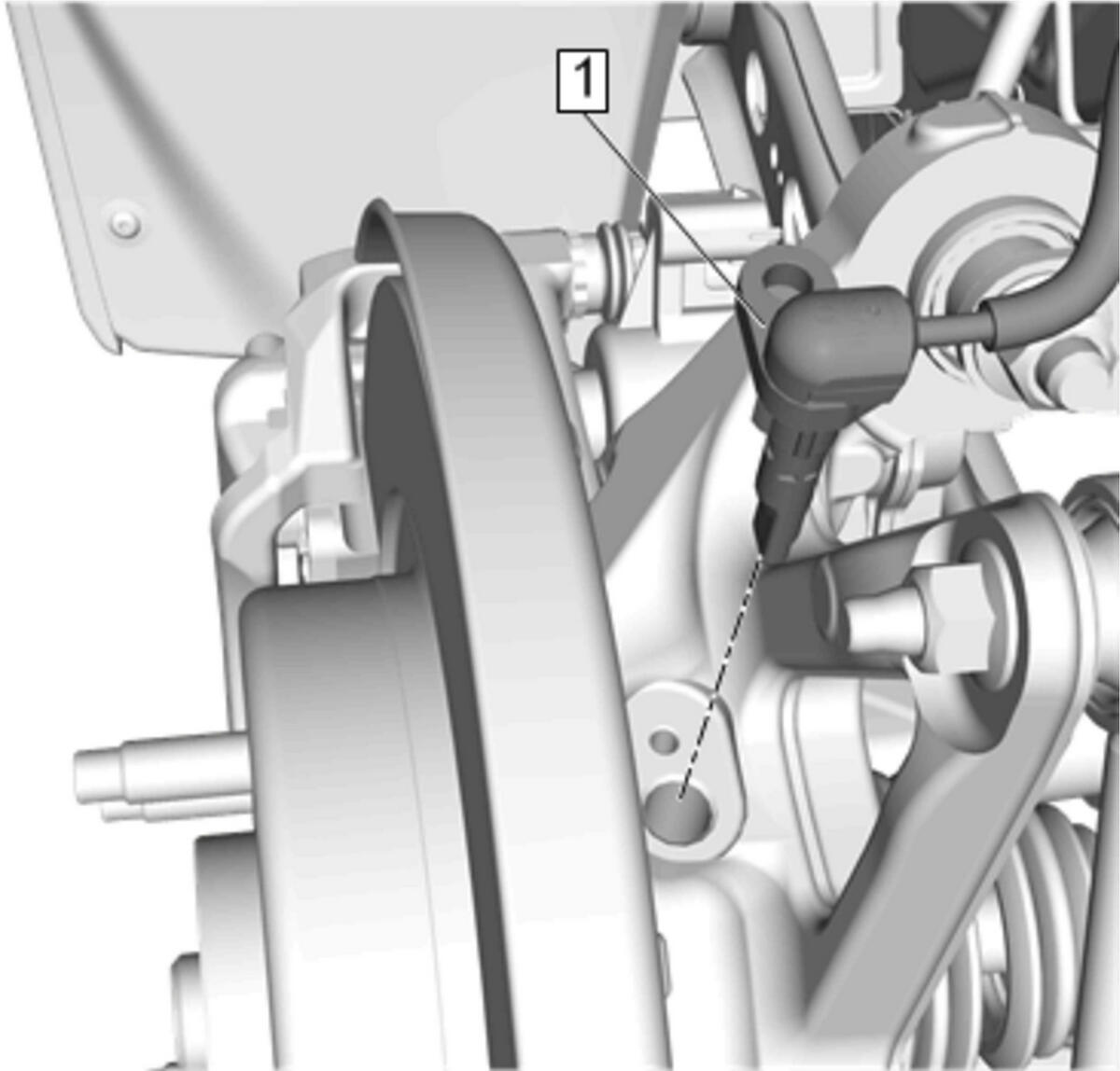

  1. Rear Wheel Speed Sensor - Install
    GM4593379Courtesy of GENERAL MOTORS COMPANY

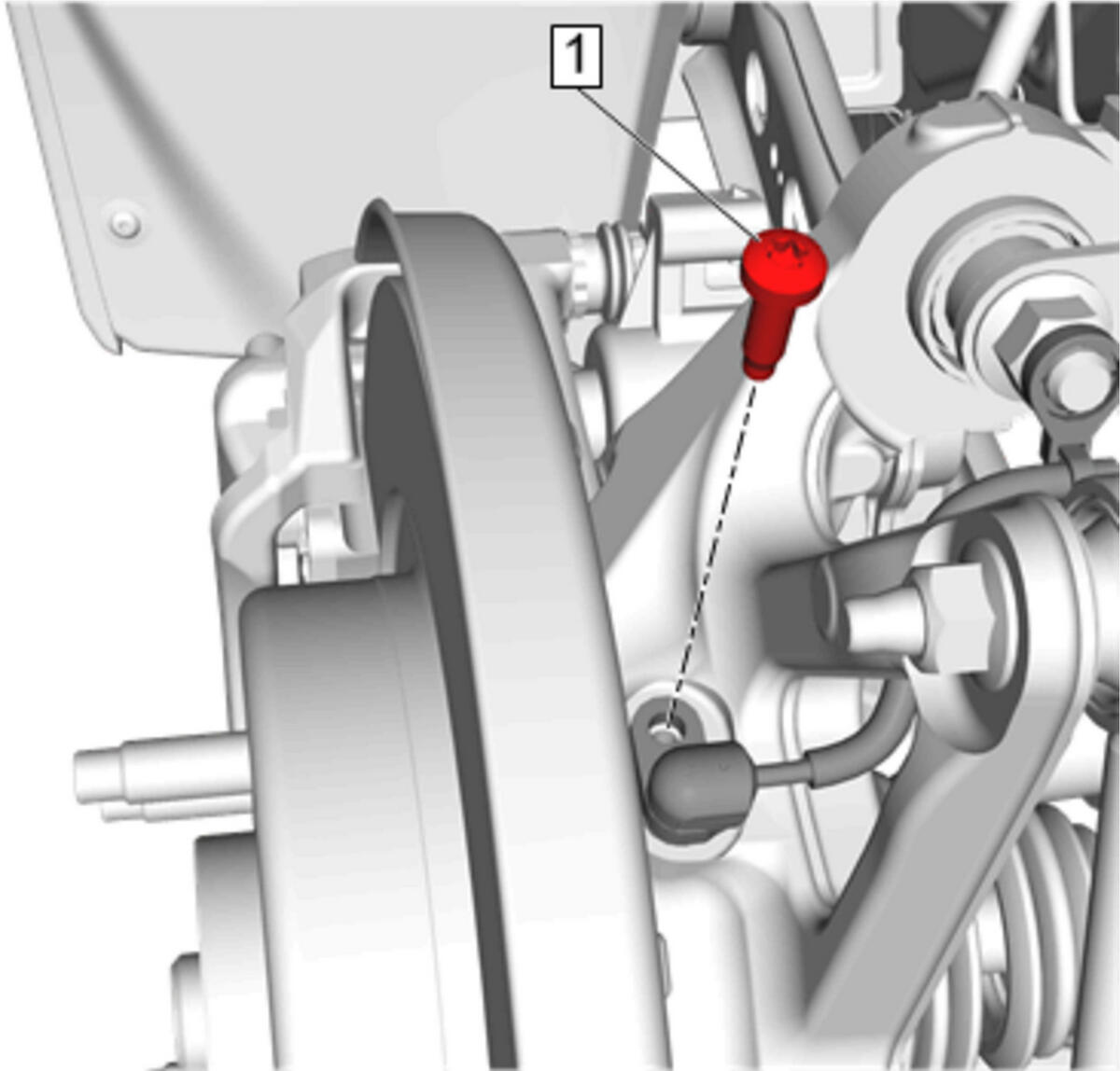

  2. Rear Wheel Speed Sensor Bolt - (1) Install and tighten 6 N.m (53 lb in)
    GM4593377Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

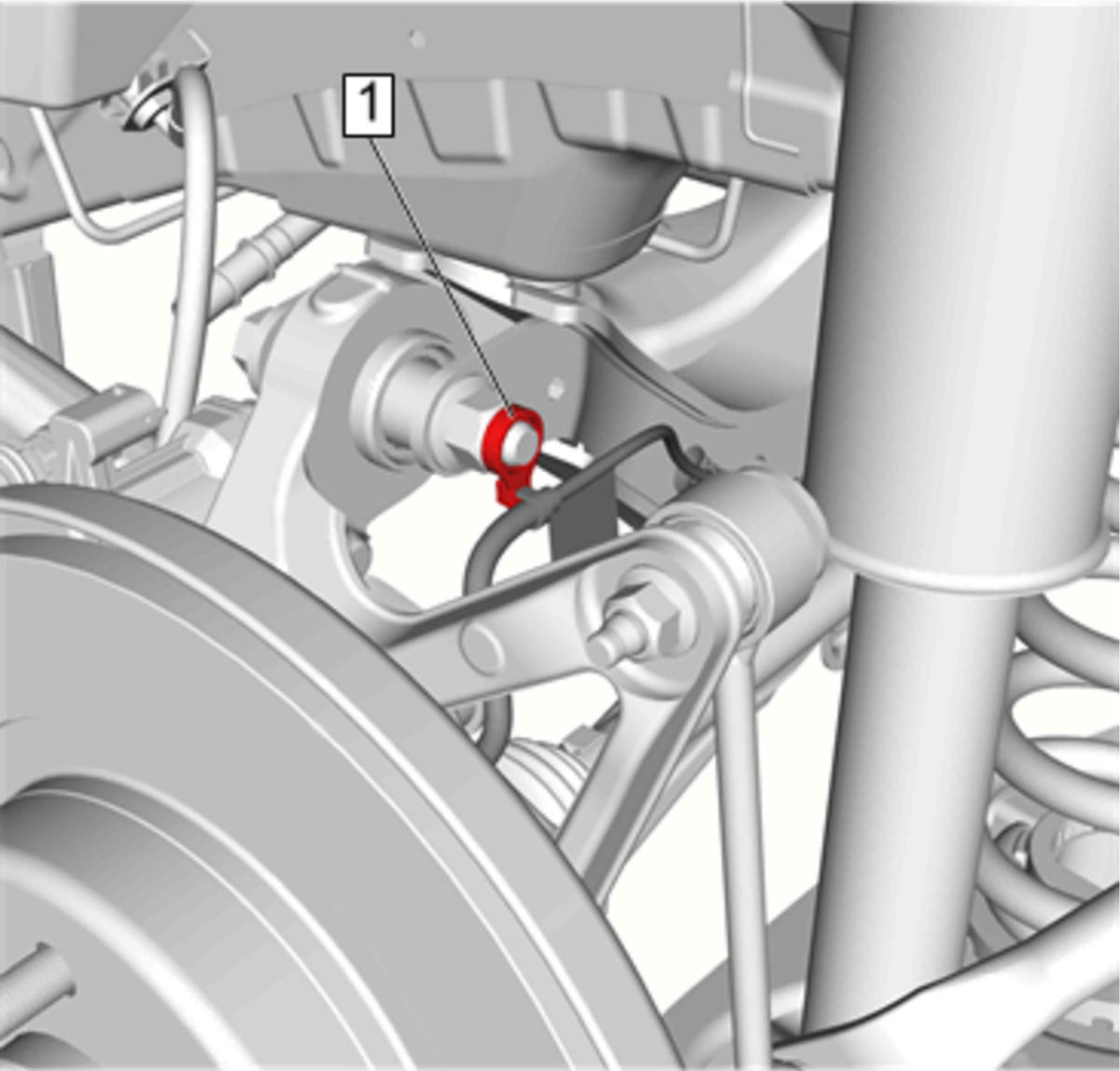

  3. Rear Wheel Speed Sensor Harness Retainer (1) - Secure
    GM4593375Courtesy of GENERAL MOTORS COMPANY

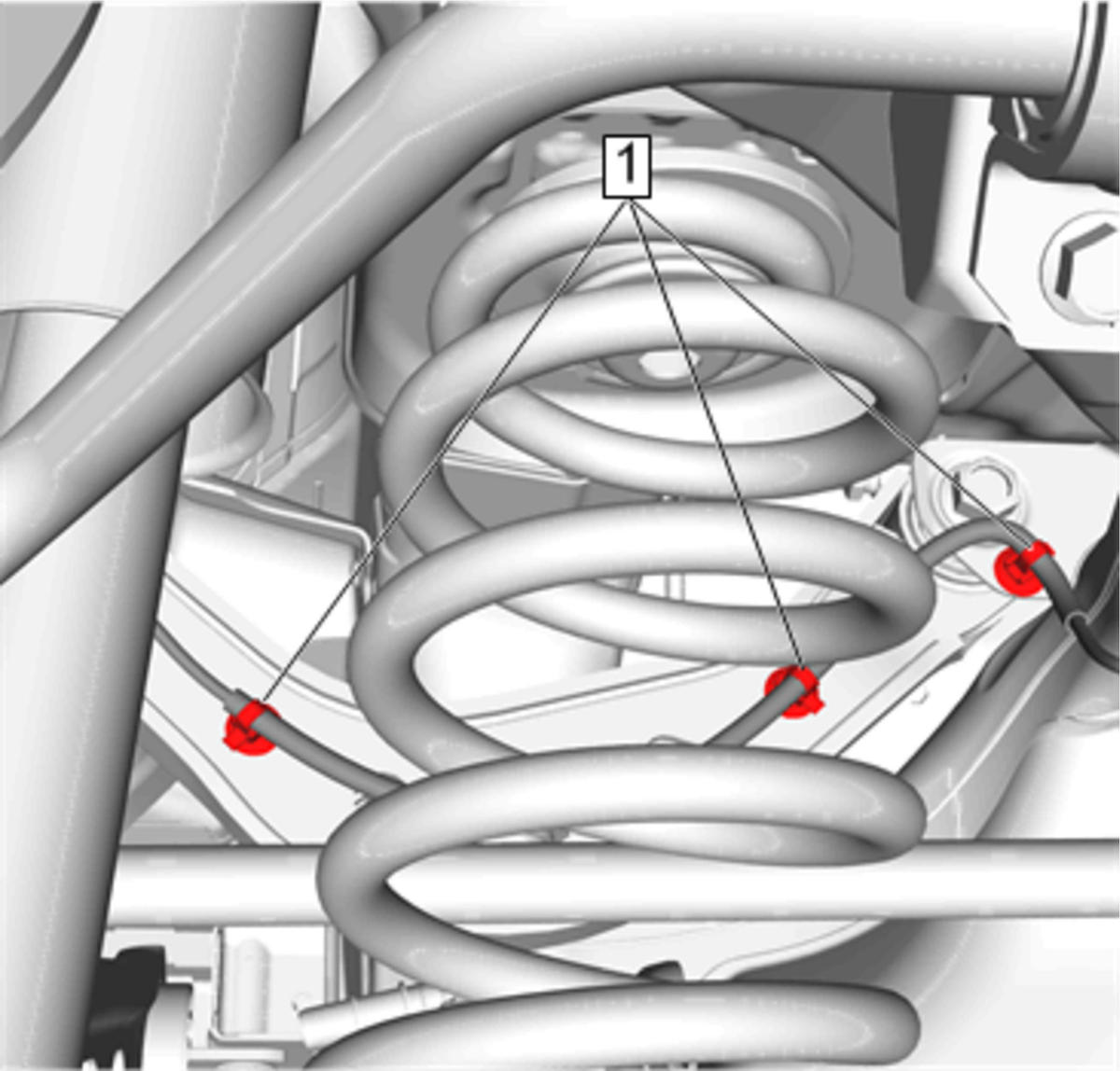

  4. Rear Wheel Speed Sensor Harness Retainer (1) - Secure [3x]
    GM4593374Courtesy of GENERAL MOTORS COMPANY

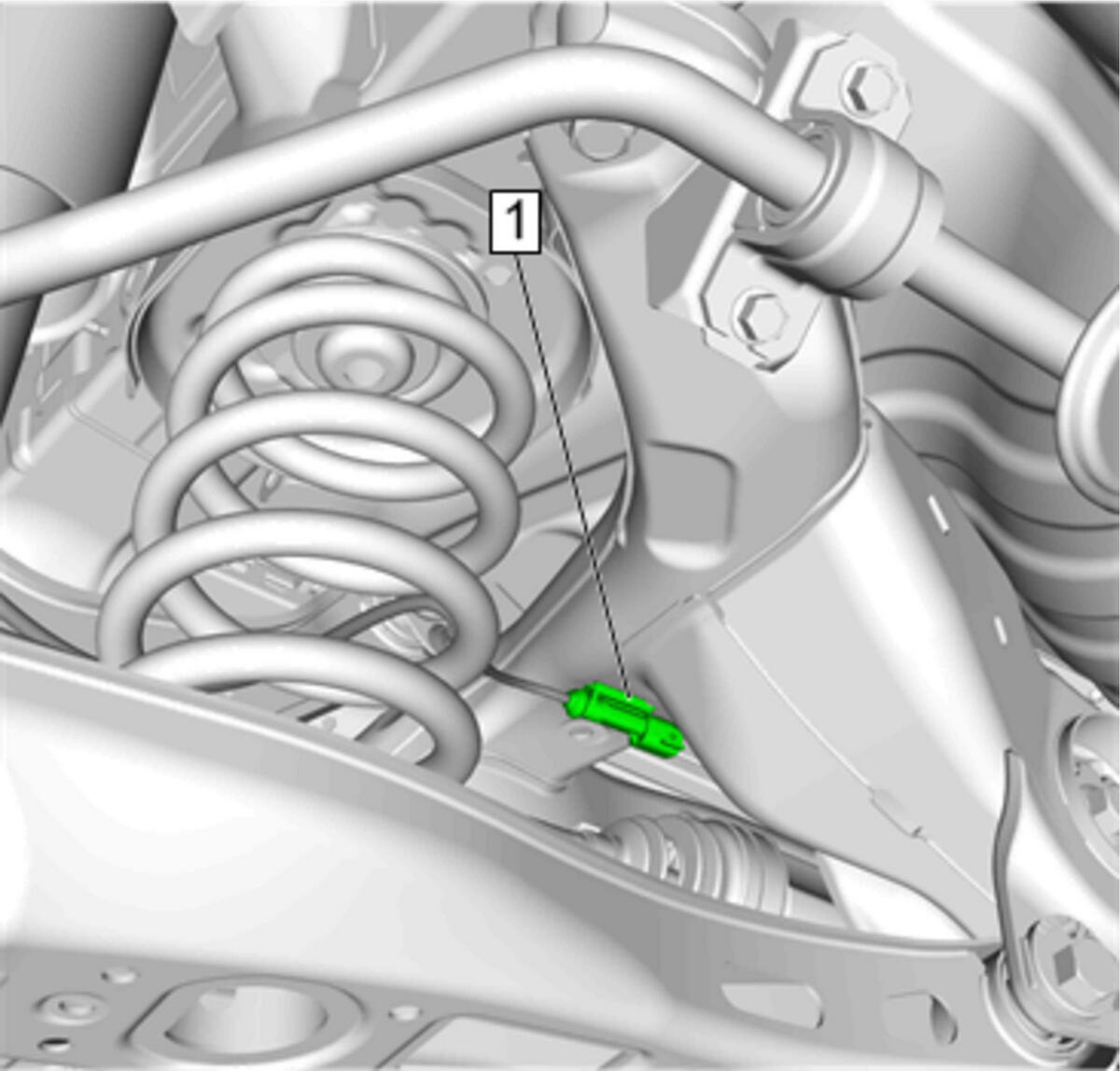

  5. Rear Wheel Speed Sensor Electrical Connector (1) - Connect
    GM4593373Courtesy of GENERAL MOTORS COMPANY
  6. Install the tire and wheel assembly. Tire and Wheel Removal and Installation
  7. Perform the diagnostic system check. Diagnostic System Check - Vehicle
