Installation Procedure

  1. Front Wheel Speed Sensor (1) - Install

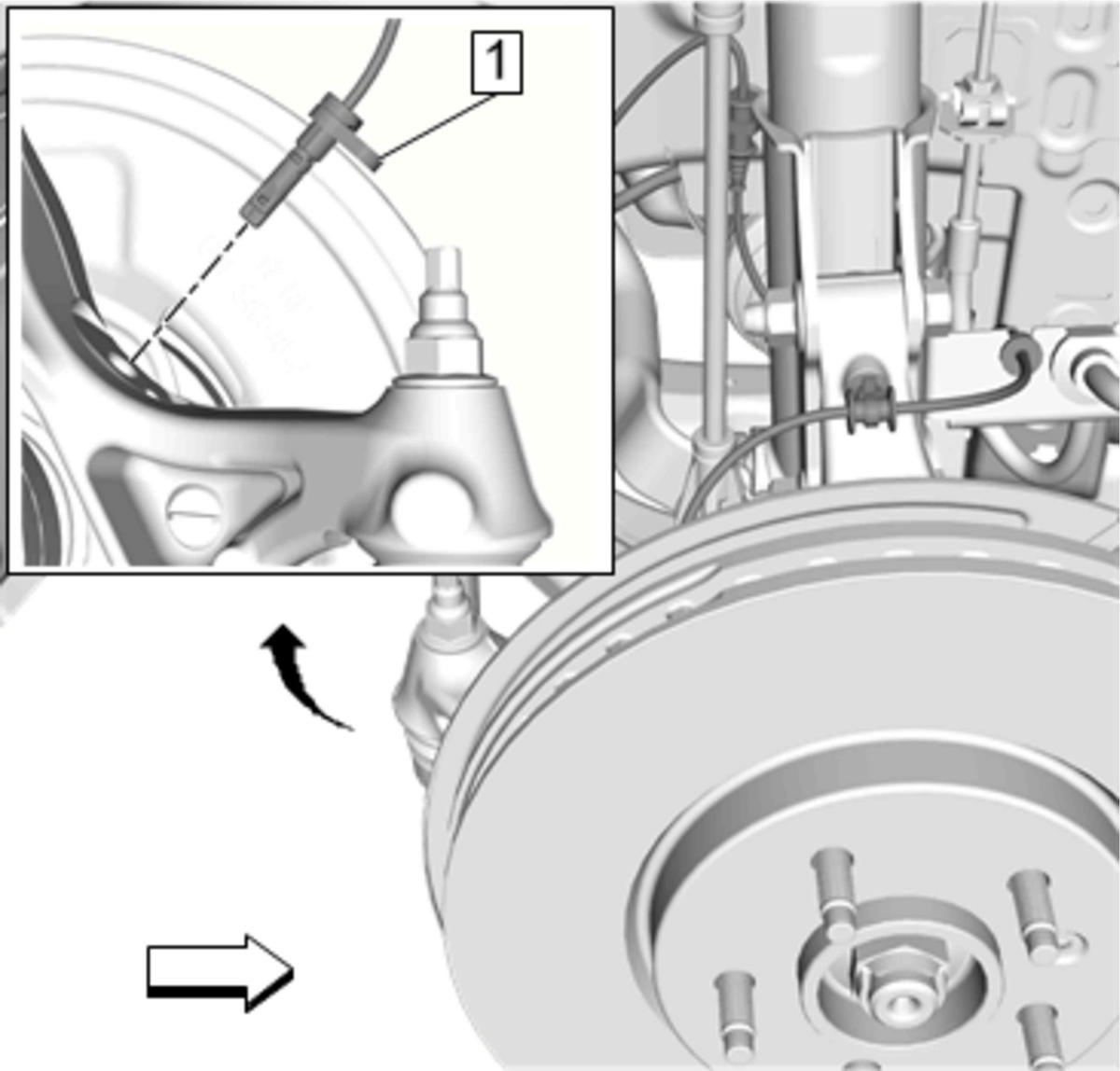

    GM4586038Courtesy of GENERAL MOTORS COMPANY
  2. Front Wheel Speed Sensor Bolt - (1) Install and tighten 6 N.m (53 lb in)

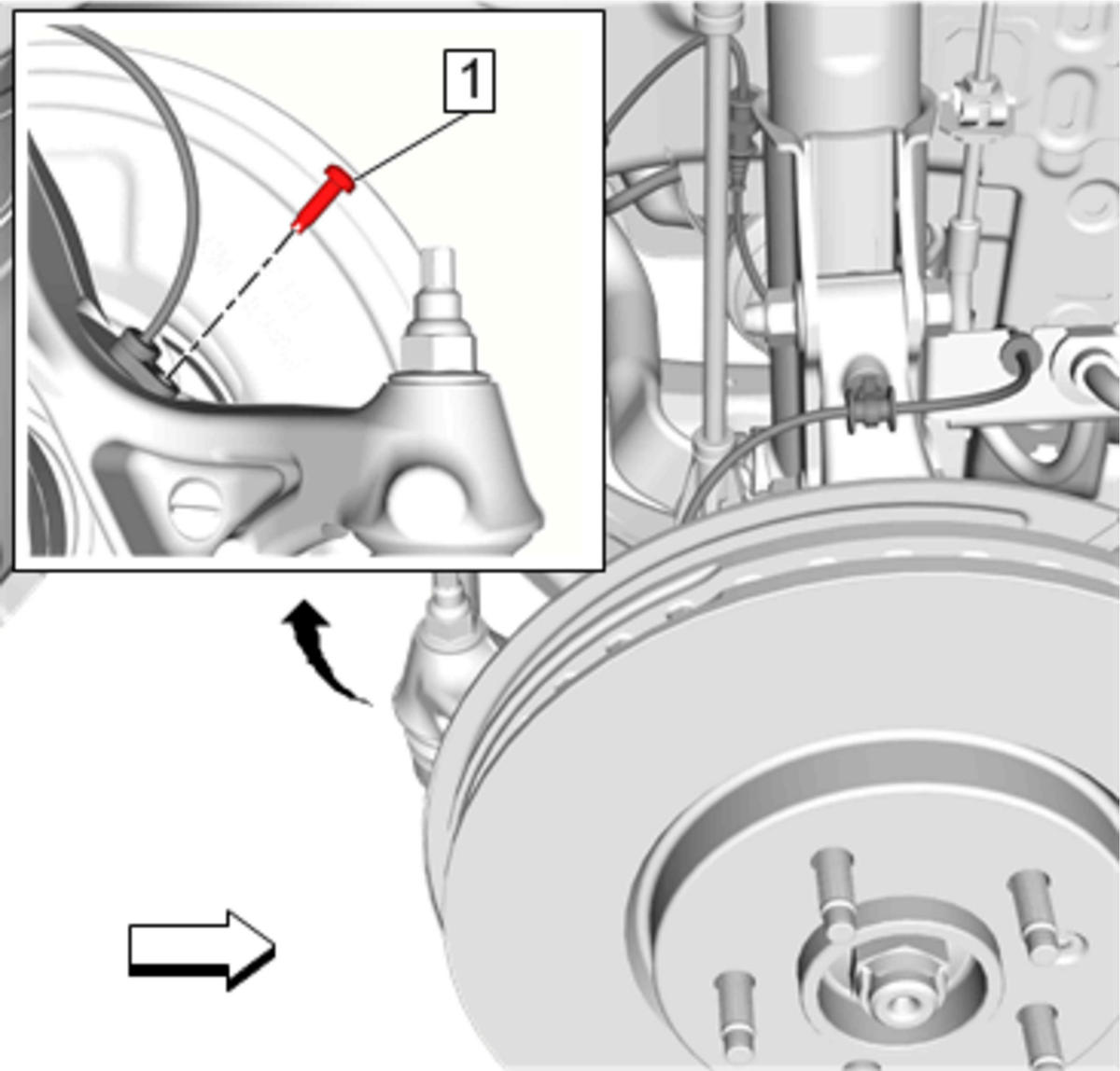

    GM4586037Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Front Wheel Speed Sensor Harness Retainer (1) - Secure

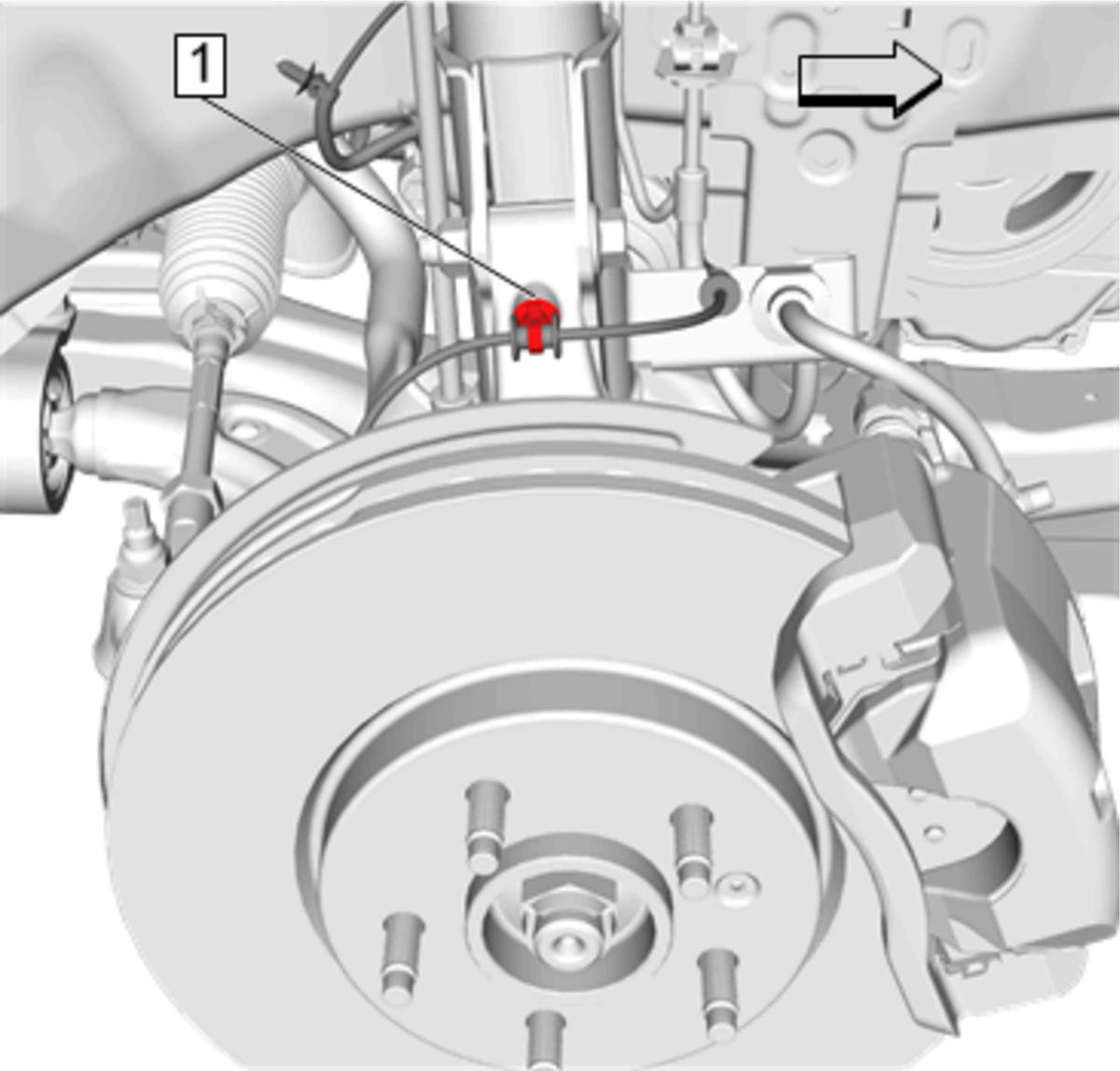

    GM4586033Courtesy of GENERAL MOTORS COMPANY
  4. Front Wheel Speed Sensor Harness Grommet (1) - Secure

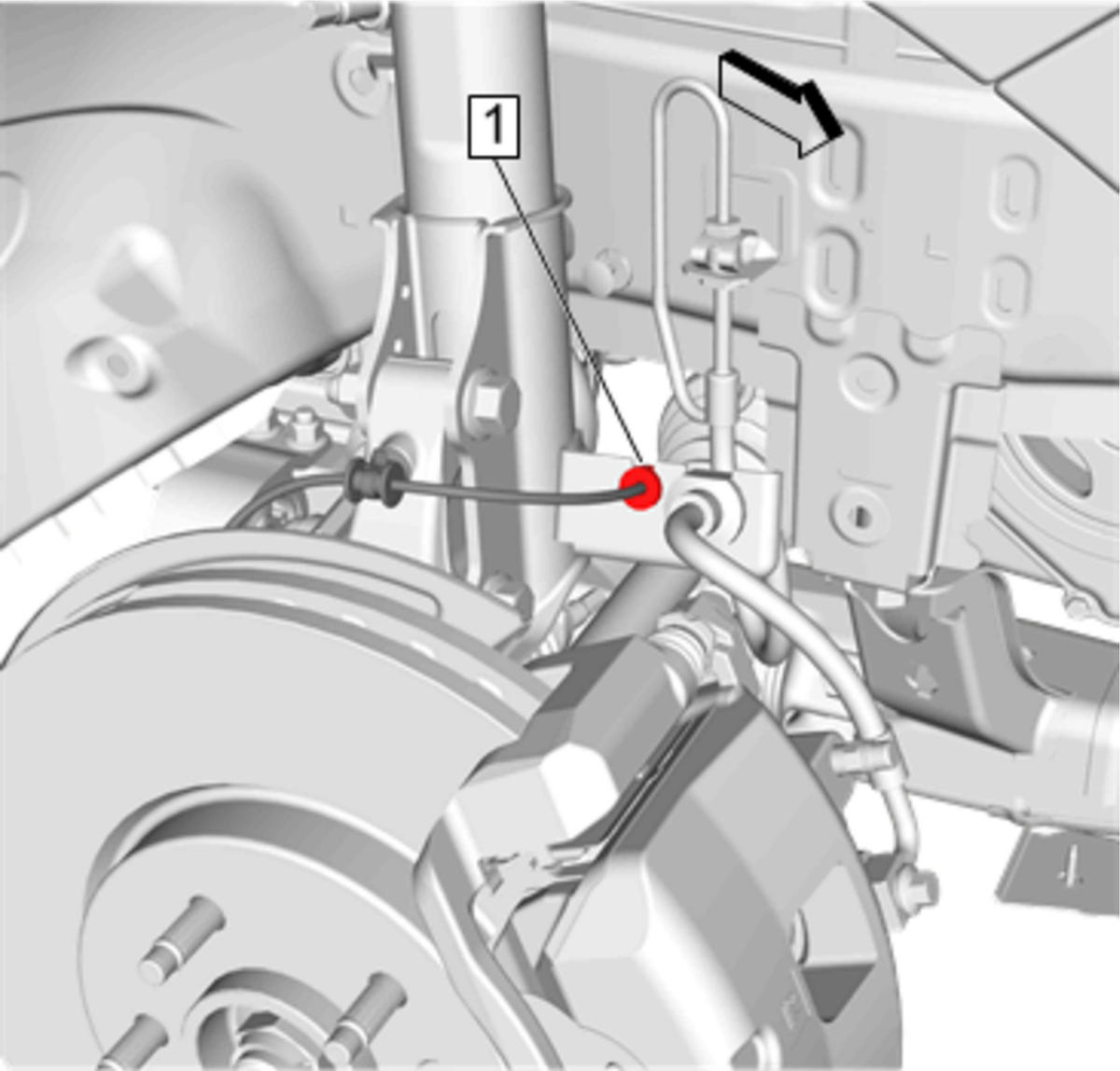

    GM4586031Courtesy of GENERAL MOTORS COMPANY
  5. Front Wheel Speed Sensor Harness Retainer (1) - Secure

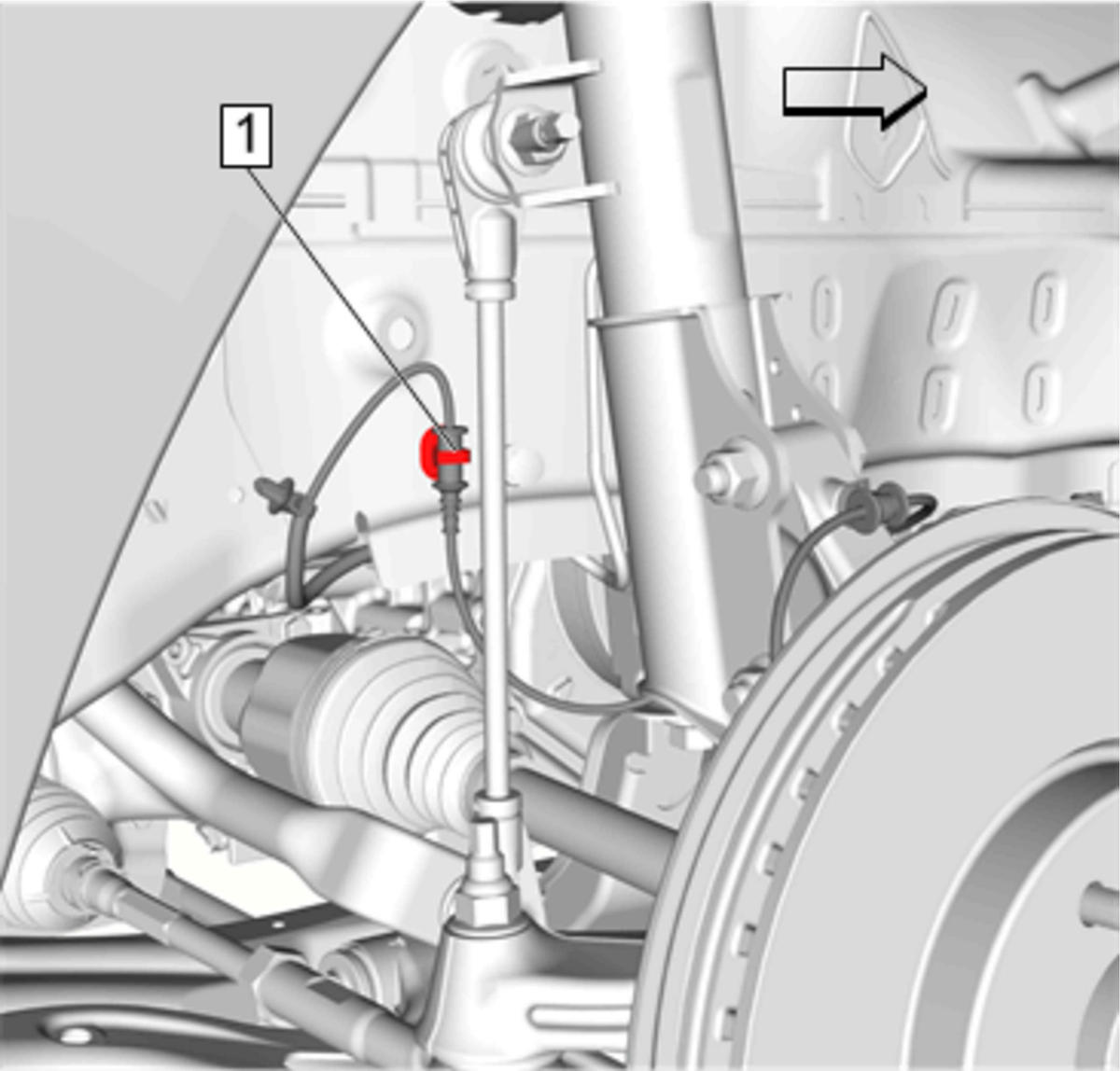

    GM4586030Courtesy of GENERAL MOTORS COMPANY
  6. Front Wheel Speed Sensor Harness Retainer (1) - Secure [2x]

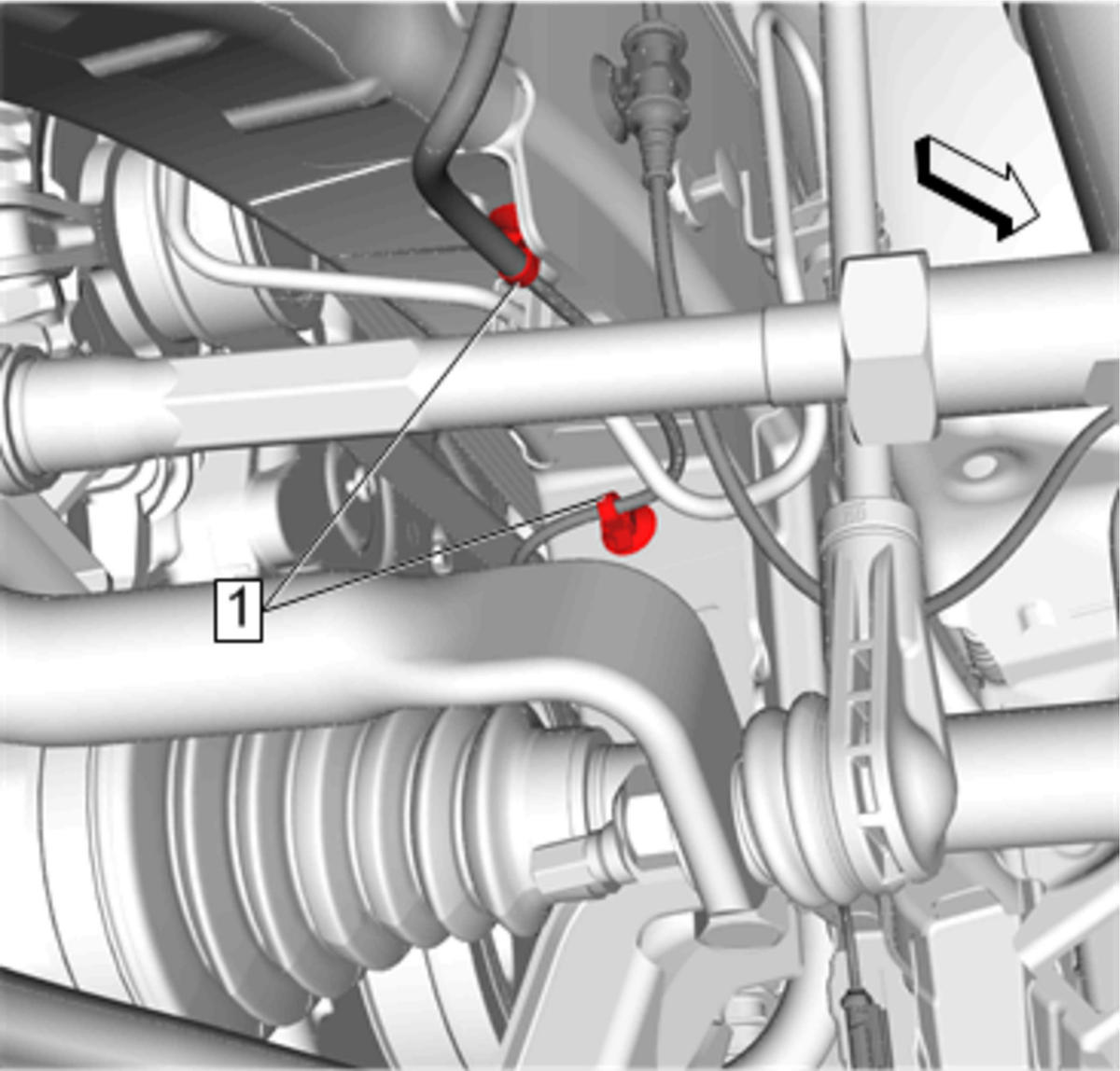

    GM4586029Courtesy of GENERAL MOTORS COMPANY
  7. Front Wheel Speed Sensor Harness Retainer (1) - Secure [2x]

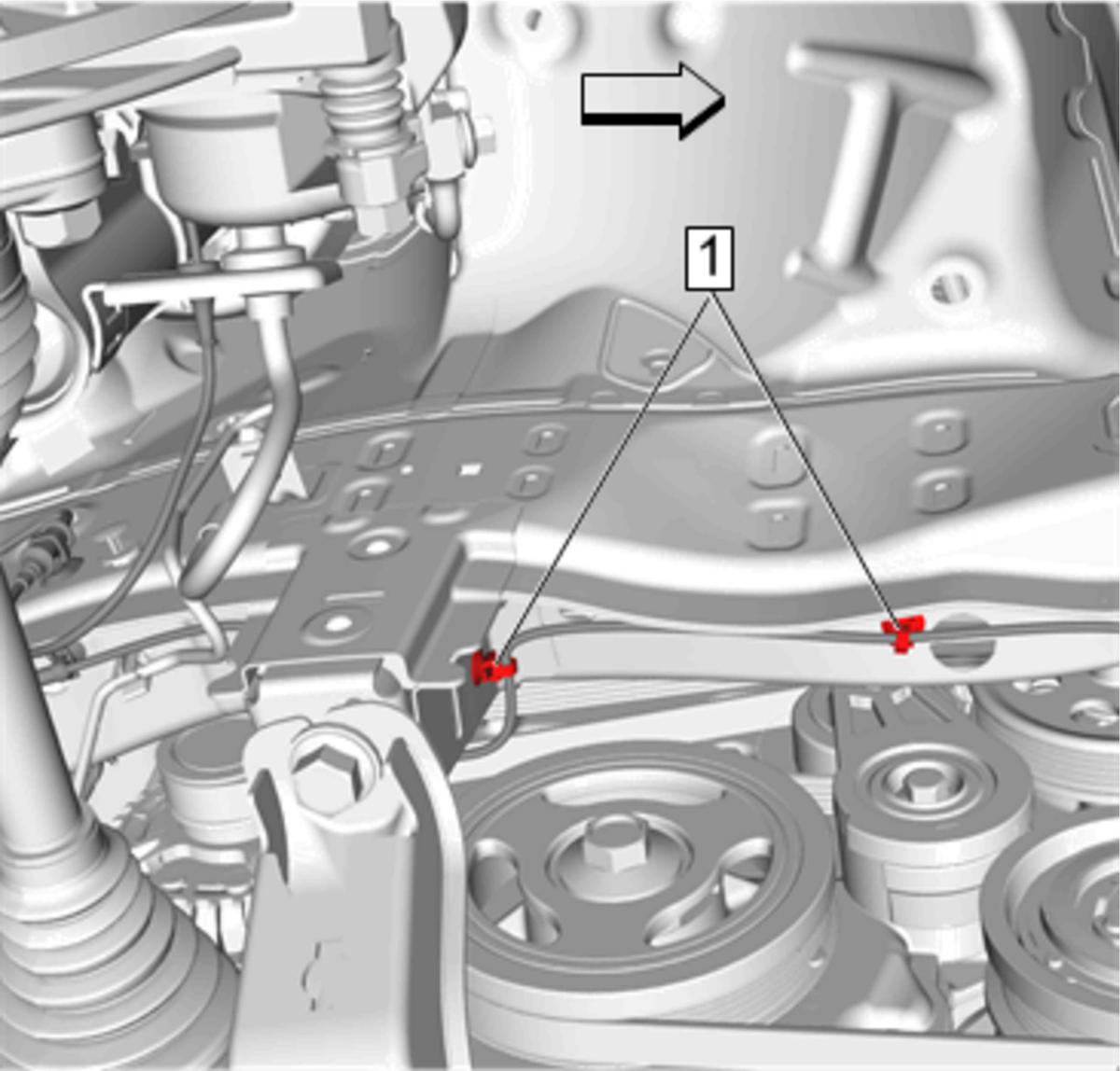

    GM4583880Courtesy of GENERAL MOTORS COMPANY
  8. Front Wheel Speed Sensor Electrical Connector (1) - Connect

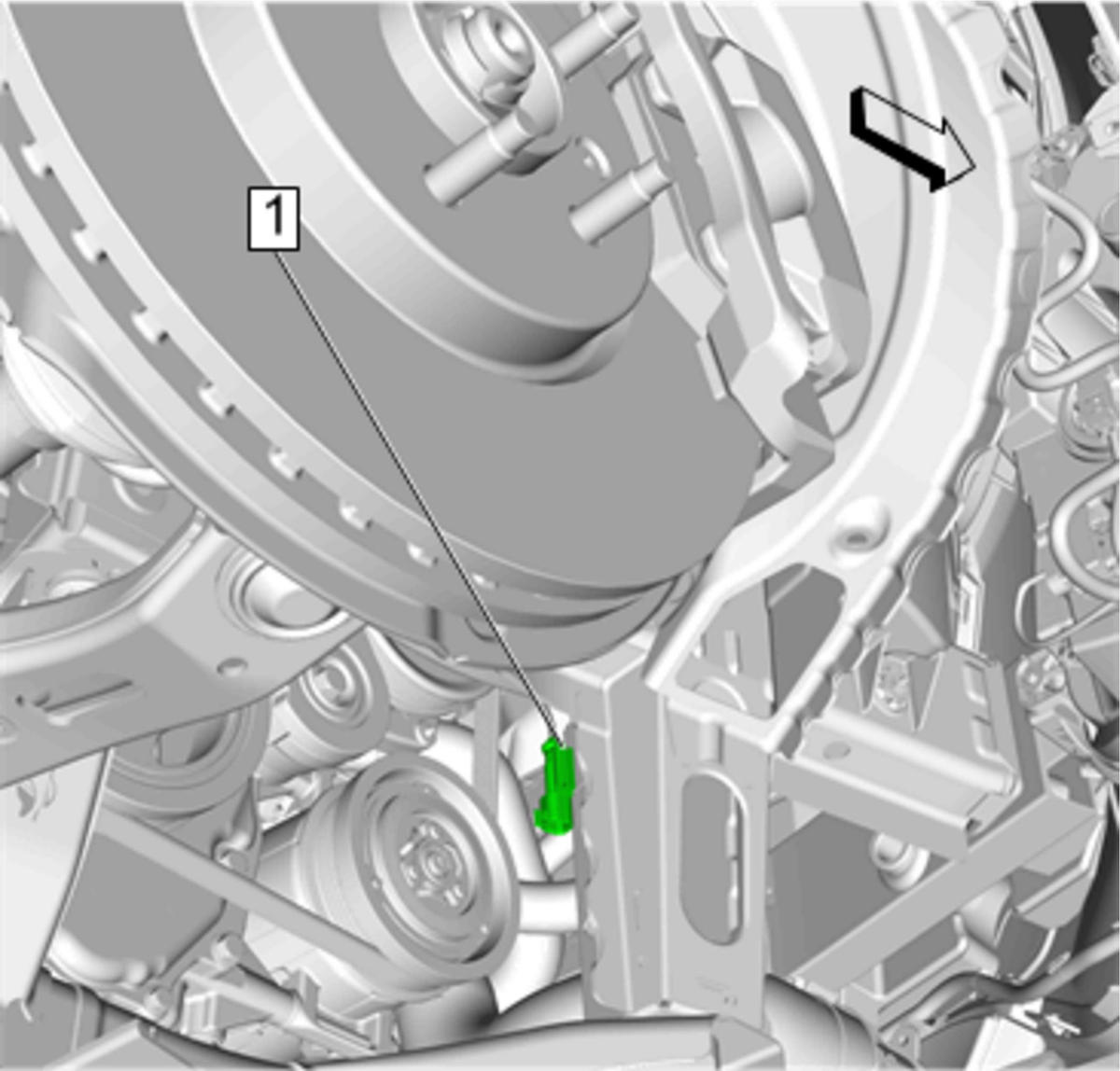

    GM4583876Courtesy of GENERAL MOTORS COMPANY
  9. Front Wheelhouse Liner - Install - Front Wheelhouse Liner Replacement - Right Side (Equinox) or Front Wheelhouse Liner Replacement - Right Side (Terrain)
  10. Perform the diagnostic system check. Diagnostic System Check - Vehicle
