Removal Procedure

WARNING:

Refer to Brake Dust Warning .

  1. Front Wheelhouse Liner - Remove - Front Wheelhouse Liner Replacement - Left Side (Equinox) or Front Wheelhouse Liner Replacement - Left Side (Terrain)

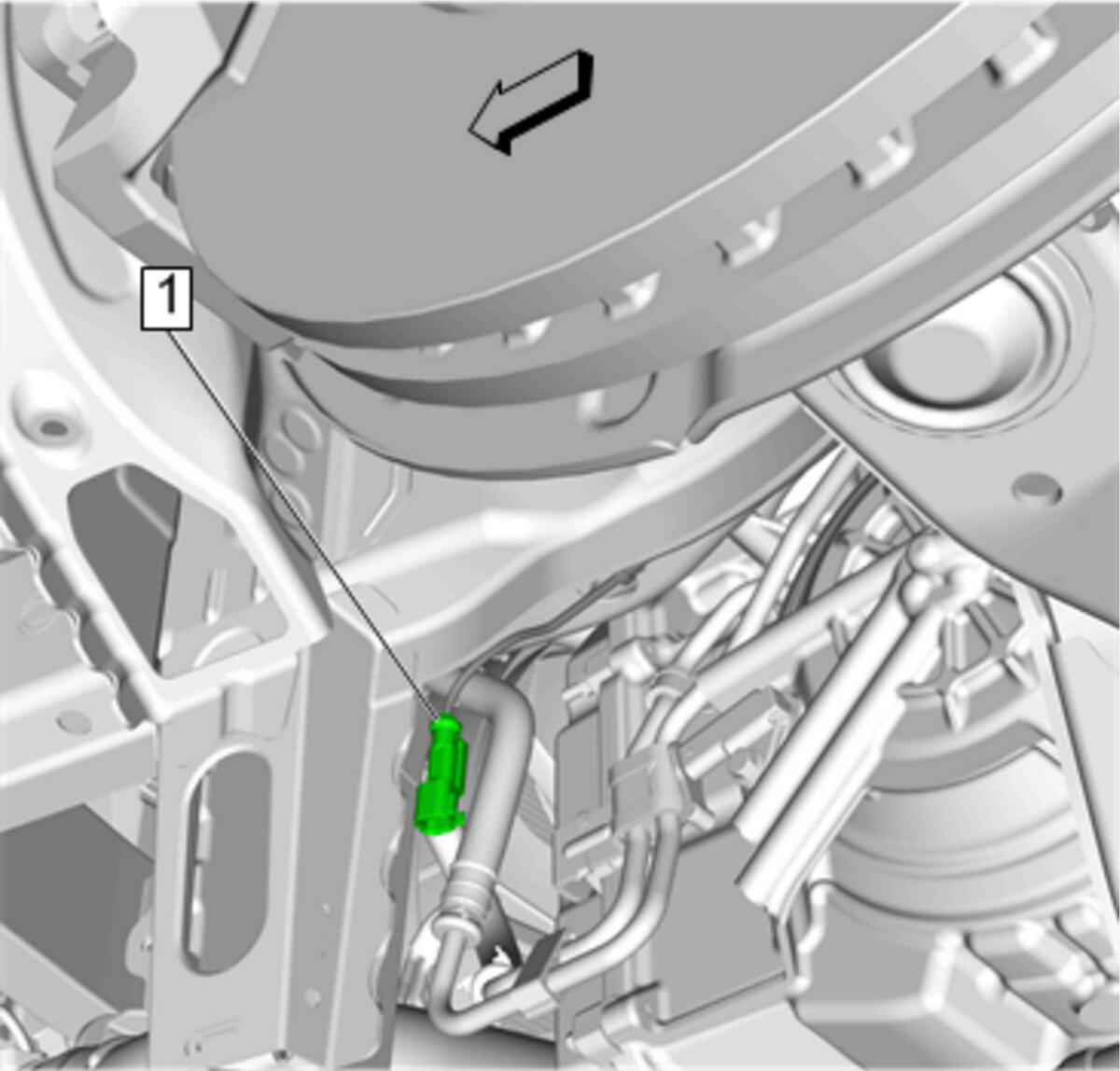

  2. Front Wheel Speed Sensor Electrical Connector (1) - Disconnect
    GM4583860Courtesy of GENERAL MOTORS COMPANY

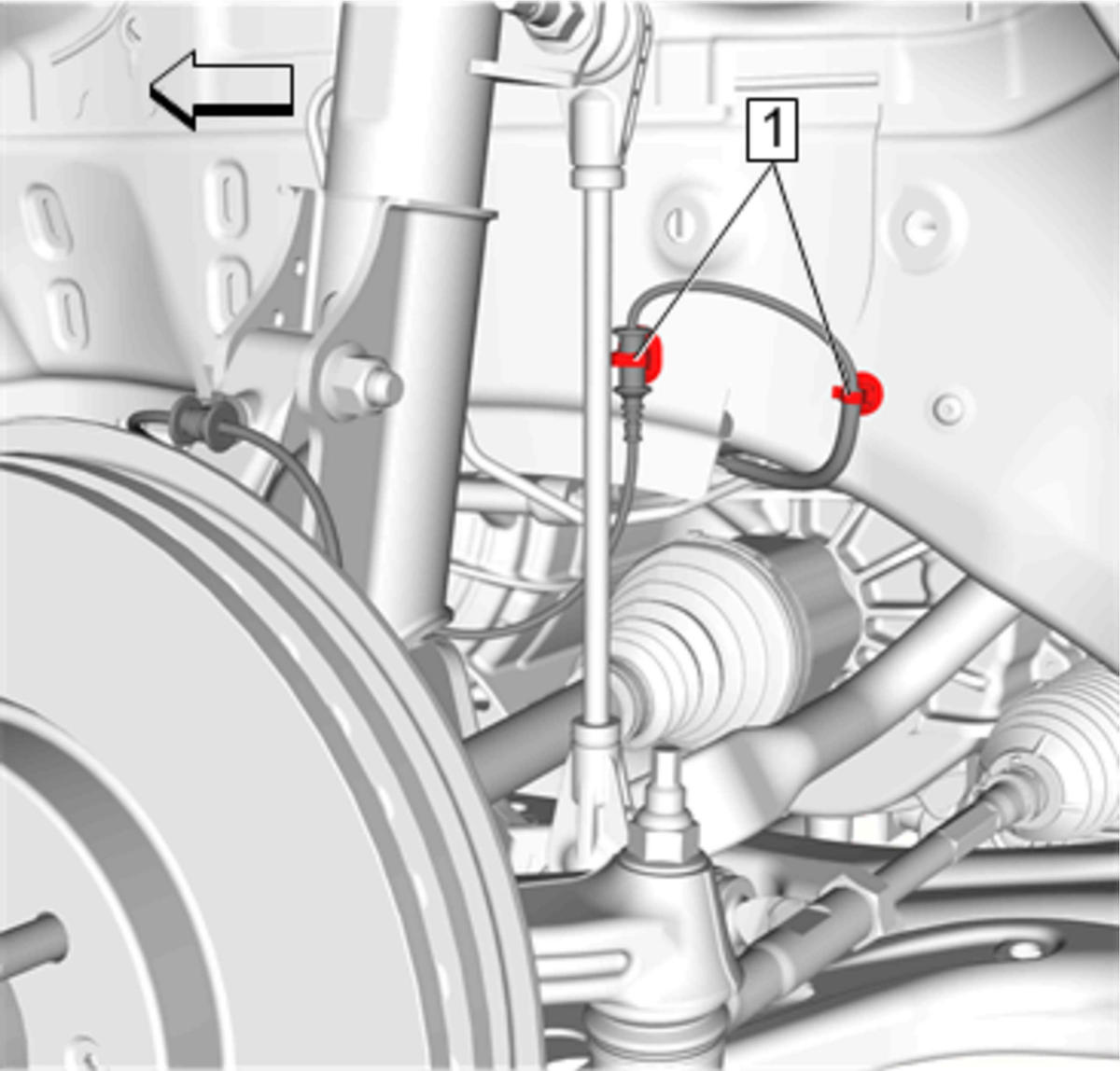

  3. Front Wheel Speed Sensor Harness Retainer (1) - Release [2x]
    GM4583861Courtesy of GENERAL MOTORS COMPANY

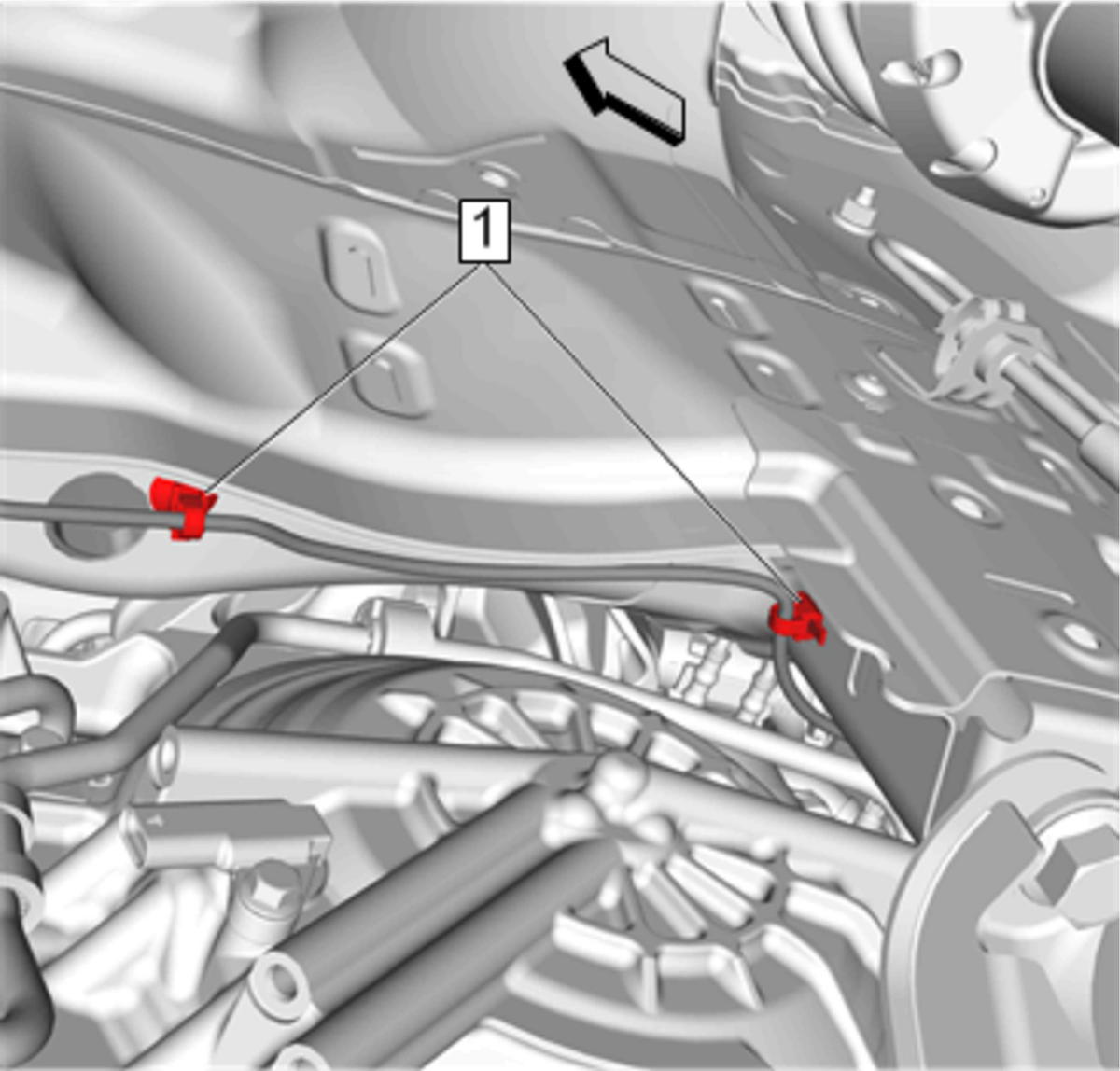

  4. Front Wheel Speed Sensor Harness Retainer (1) - Release [2x]
    GM4583862Courtesy of GENERAL MOTORS COMPANY

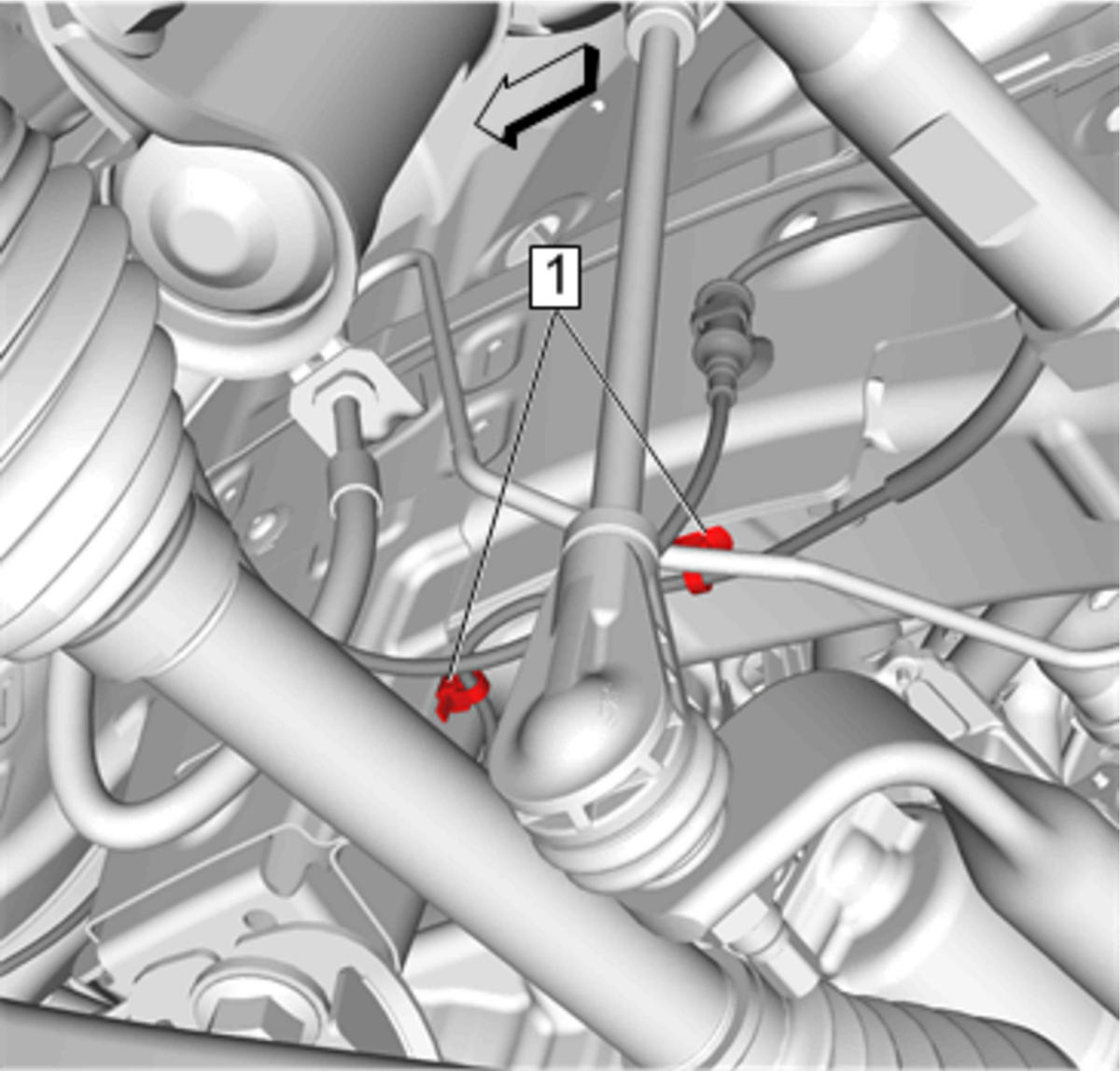

  5. Front Wheel Speed Sensor Harness Retainer (1) - Release [2x]
    GM4583864Courtesy of GENERAL MOTORS COMPANY

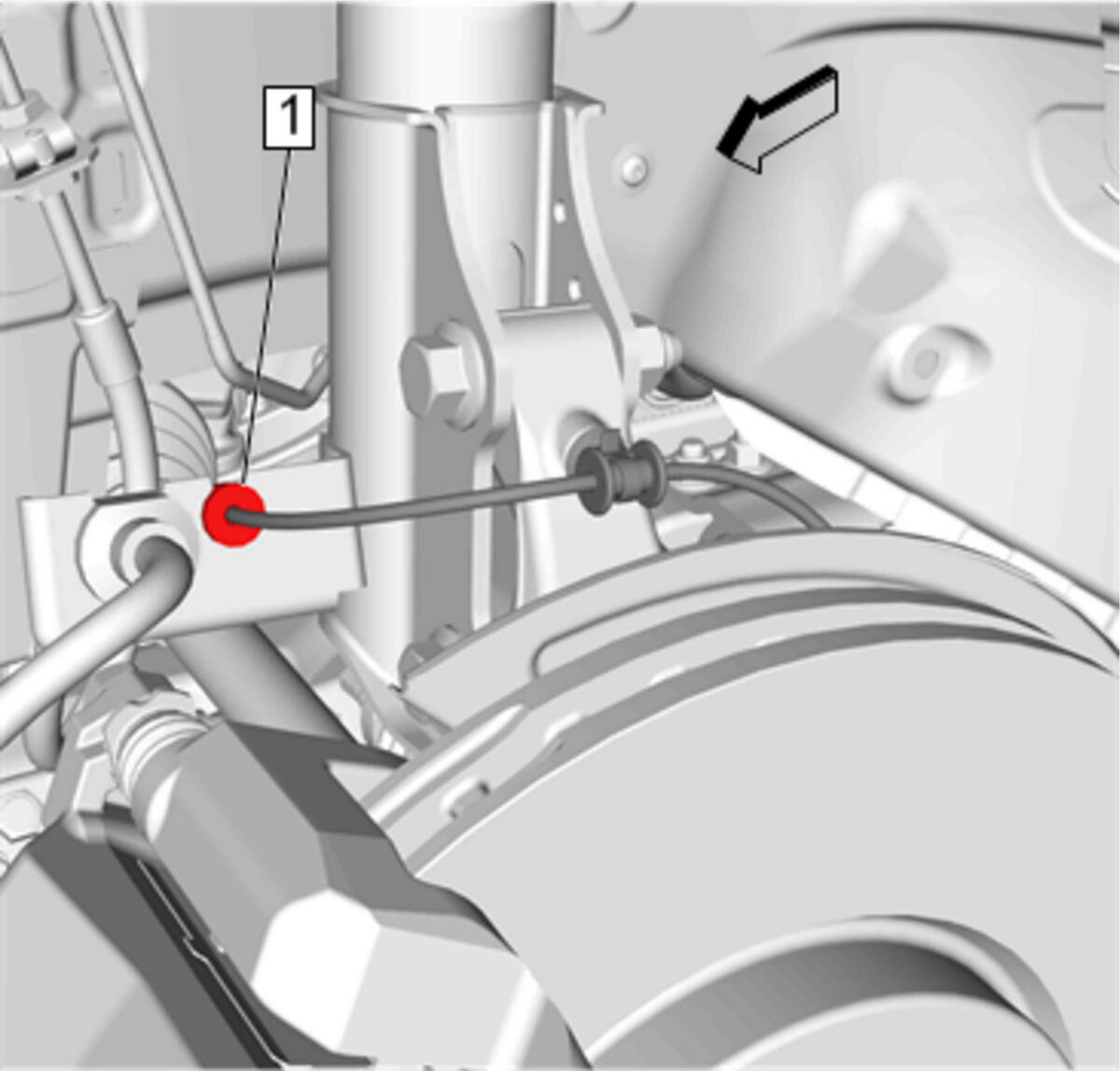

  6. Front Wheel Speed Sensor Harness Grommet (1) - Release
    GM4583865Courtesy of GENERAL MOTORS COMPANY

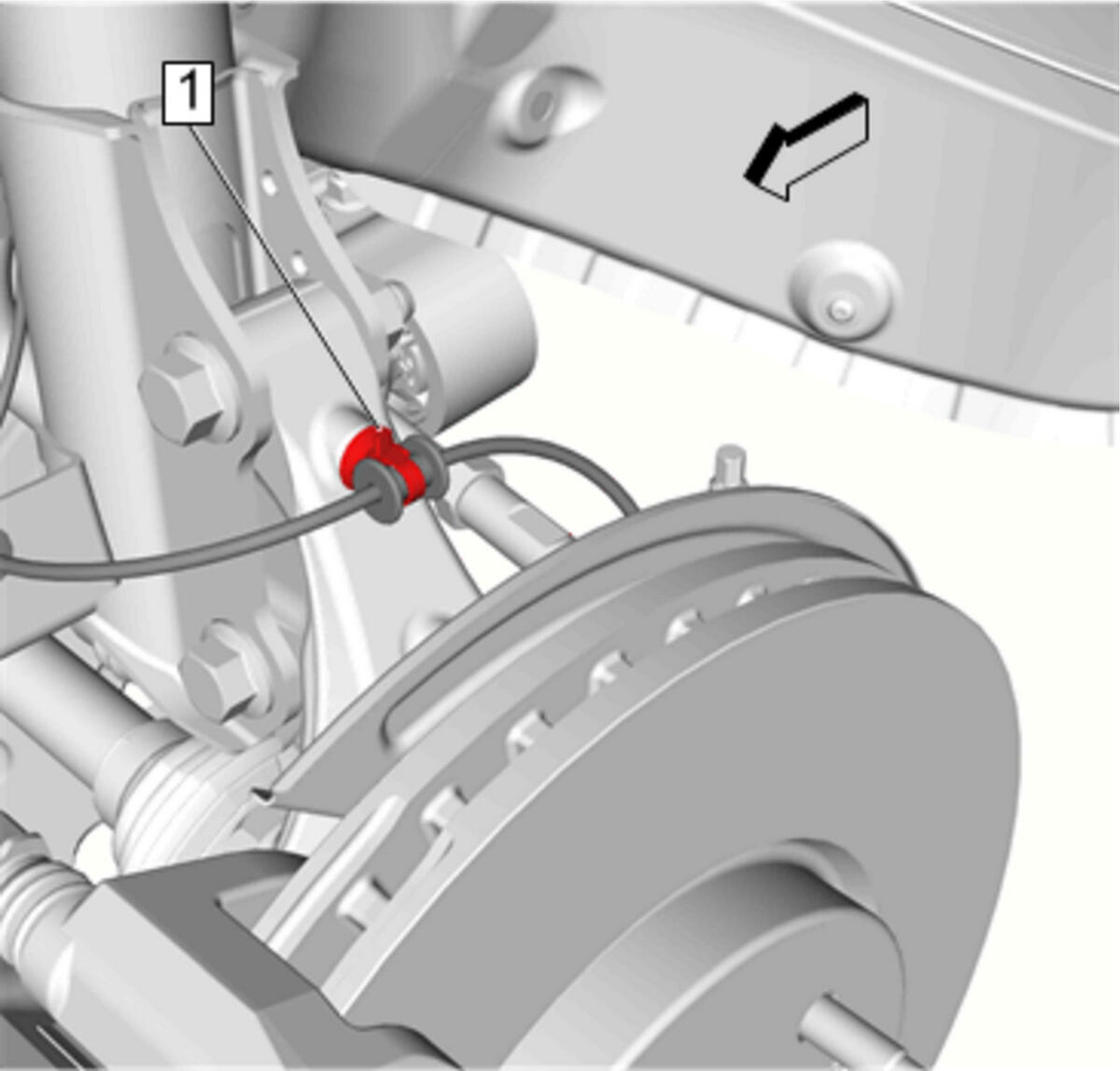

  7. Front Wheel Speed Sensor Harness Retainer (1) - Release
    GM4583866Courtesy of GENERAL MOTORS COMPANY

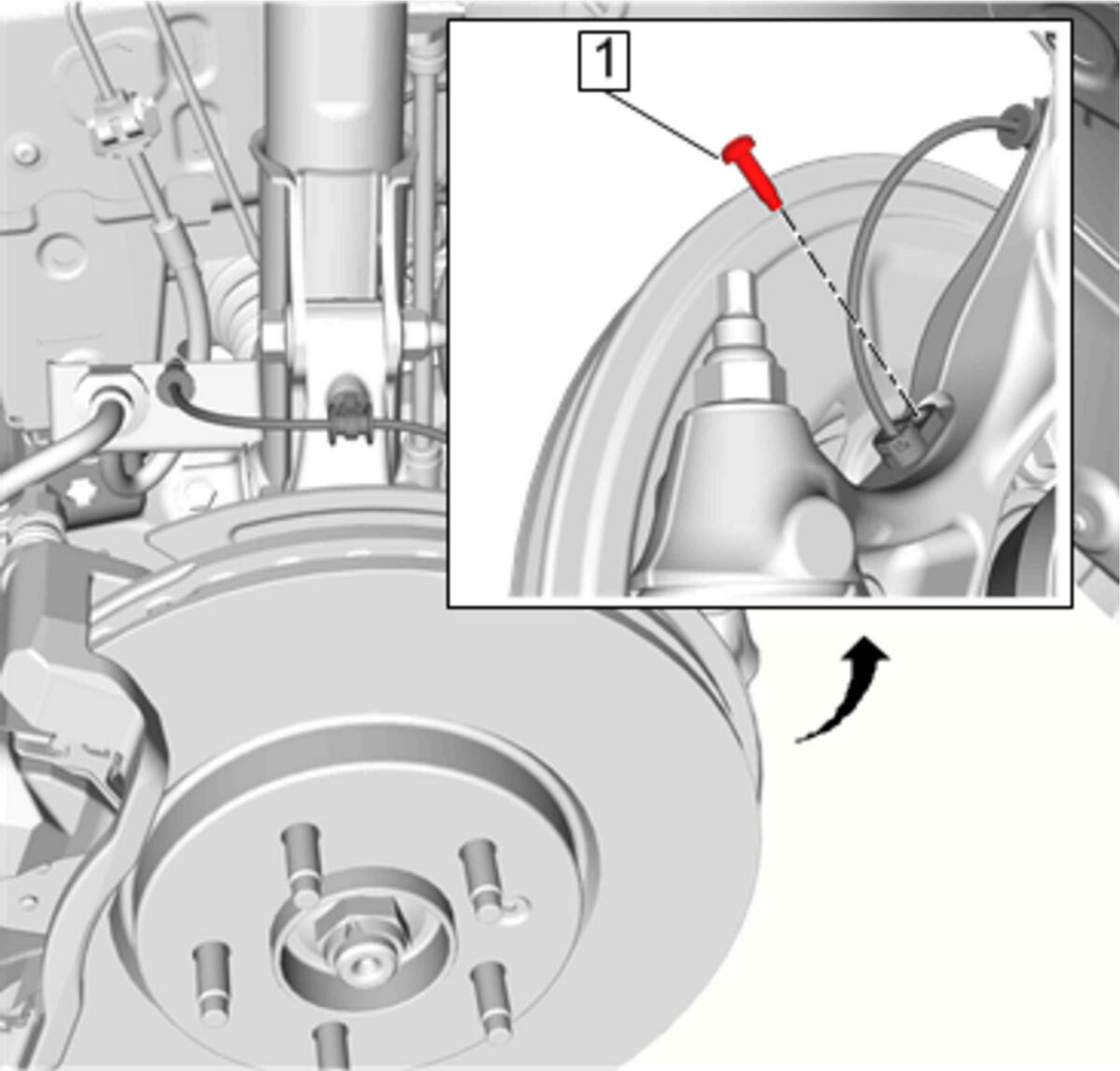

  8. Front Wheel Speed Sensor Bolt - (1) Remove
    GM4583873Courtesy of GENERAL MOTORS COMPANY

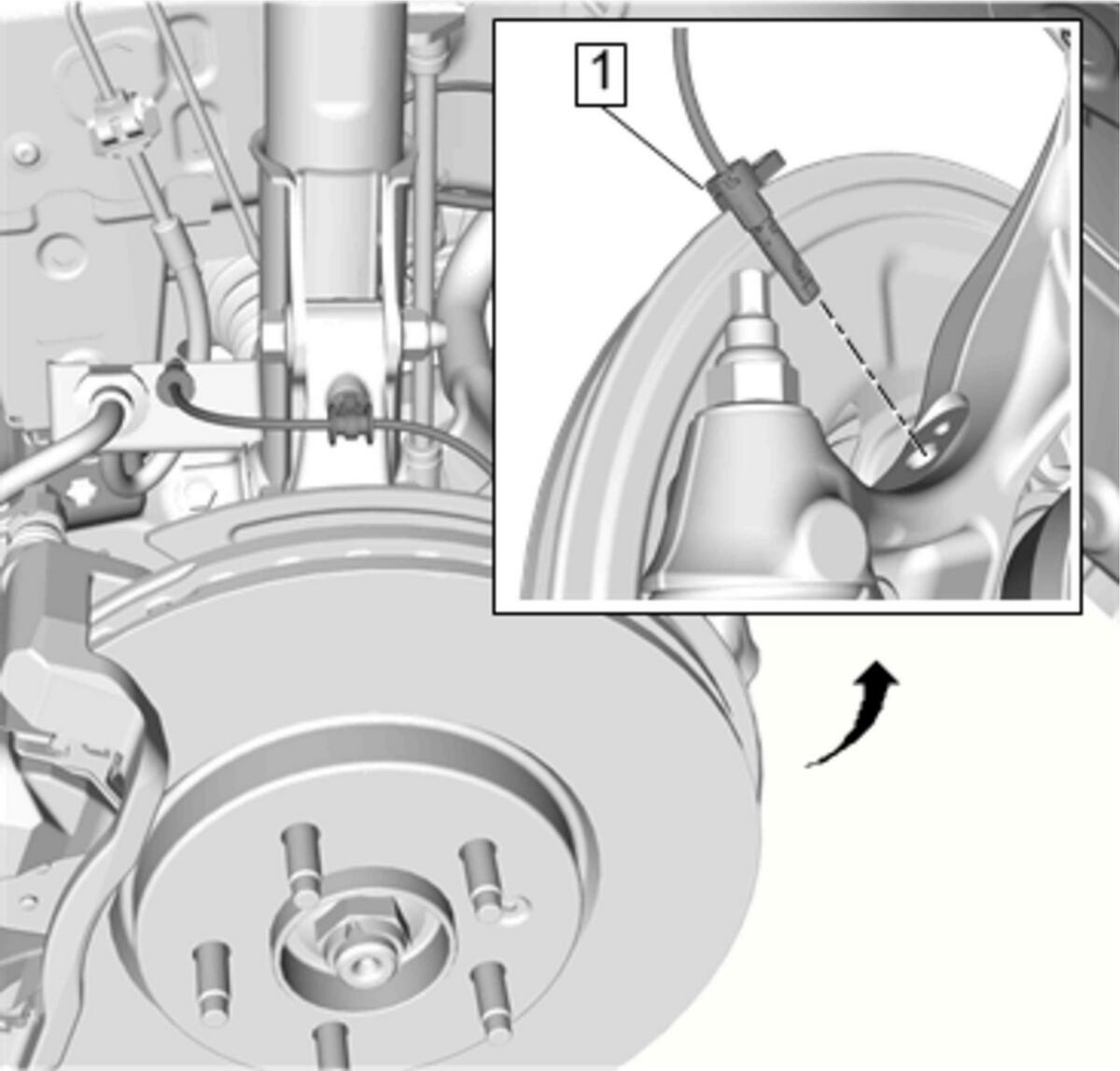

  9. Front Wheel Speed Sensor - Remove
    GM4583875Courtesy of GENERAL MOTORS COMPANY
