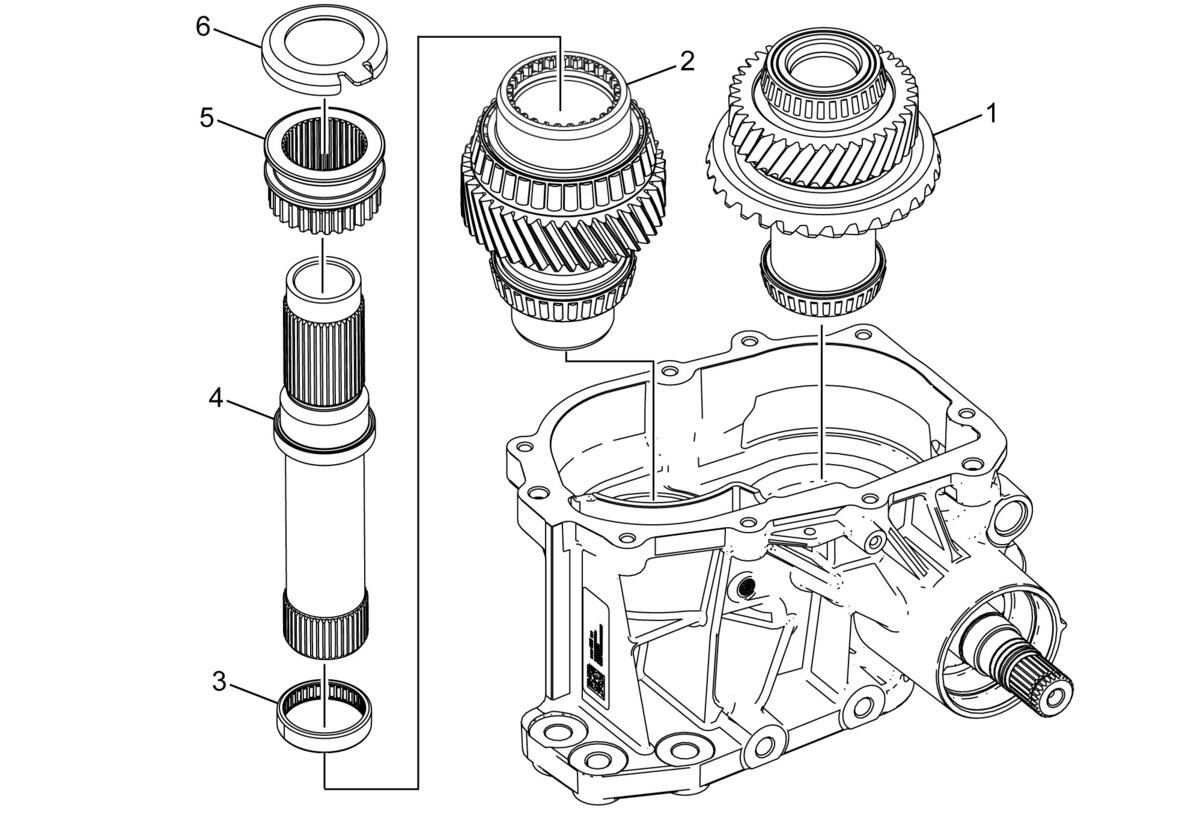

Power Transfer Unit Input Shaft and Idler Shaft Assembly Installation
Power Transfer Unit Input Shaft and Idler Shaft Assembly Installation
| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Idler Shaft Assembly |
| 2 | Power Transfer Unit Input Shaft Assembly |
| 3 | Power Transfer Unit Pinion Compression Sleeve |
| 4 | Power Transfer Unit Shift ActuatorShaft |
| 5 | Power Transfer Unit Shift ActuatorGear |
| 6 | Power Transfer Unit Locker |
