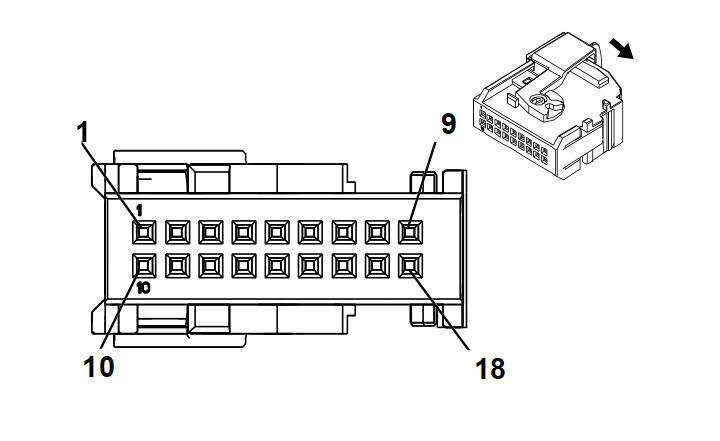

K157 Video Processing Control Module X1 (UV2)

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type: Body OEM Connector: 13596543 Service Connector: 19369840 Description: 18-Way F Micro-Quadlock Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575584	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
II	13579993	J-35616-64B (LT BU)	J-38125-12A	144969-1	Lear 25	E	2

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	RD/WH	640	Battery Positive Voltage	II	UV2
2	-	-	-	Not Occupied	-	-
3	0.35	BK	1950	Ground	II	UV2
4 - 8	-	-	-	Not Occupied	-	-
9	0.35 0.35	GY/GN GY/GN	1102 1102	Low Speed GMLAN Serial Data #2 Low Speed GMLAN Serial Data #2	I II	LYX-NF5 UV2
10	0.35	RD/WH	640	Battery Positive Voltage	II	UV2
11	-	-	-	Not Occupied	-	-
12	0.35	BK	1950	Ground	II	-
13 - 18	-	-	-	Not Occupied	-	-
